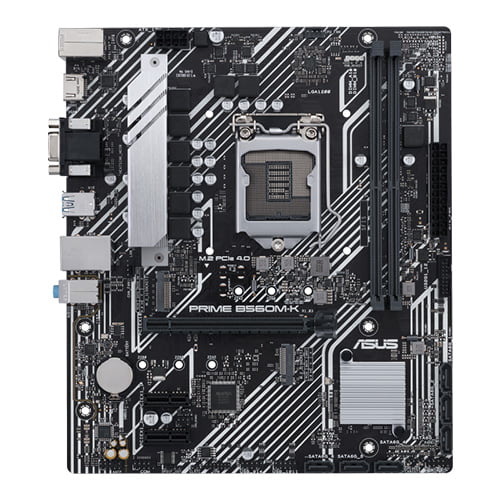

ASUS PRIME B560M-K 11th Gen Intel Motherboard

ASUS PRIME B560M-K 11th Gen Intel Motherboard
ASUS PRIME B560M-K 11th Gen Intel Motherboard
ASUS PRIME B560M-K 11th Gen Intel Motherboard
ASUS PRIME B560M-K 11th Gen Intel Motherboard
ASUS PRIME B560M-K 11th Gen Intel Motherboard
ASUS PRIME B560M-K 11th Gen Intel Motherboard
ASUS PRIME B560M-K 11th Gen Intel Motherboard
ASUS PRIME B560M-K 11th Gen Intel Motherboard
ASUS PRIME B560M-K 11th Gen Intel Motherboard
  • Stock: In Stock
  • Brand: Asus
  • SKU: B560M-K
EMI starts at 3,608৳/month. View all 29 banks EMI plans >
10,500৳
Ex Tax: 10,500৳

Features

  • Intel LGA 1200 socket
  • Enhanced power solution
  • Alloy chokes and durable capacitors
  • VRM heatsink, PCH heatsink
  • PCIe 4.0, Intel 1 Gb Ethernet
Contact for Bulk Quantity: 01771833944
Main Features
Chipset Intel® B560 Chipset
Form Factor microATX 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Graphics Specifications
Graphics 1 x D-Sub 1 x HDMI 2.0
Generel information
Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Expansion Slots Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel®11th Gen processors support PCIe 4.0 x16 mode - Intel®10th Gen processors support PCIe 3.0 x16 mode Intel® B560 Chipset 2 x PCIe 3.0 x1 slots
Intrernal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin+12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Manageability WOL by PME, PXE
Memory Memory Channels:2DDR4 (Dual Channel) Max Memory Size:64GB DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/ 3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/ 2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 2933/2800/2666/2400/ 2133 natively.
Operating System Windows 10 64bit
Storage Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel®B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * The M.2_2 shares bandwidth with SATA6G_2.When M.2_2 runs SATA mode, SATA6G_2 will be disabled.

ASUS PRIME B560M-K 11th Gen Intel Motherboard

ASUS PRIME B560M-K 11th Gen Intel Motherboard expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-K provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

Cool to the Core

Prime B560 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsinks and Thermal Pads

The VRM heatsink with underneath thermal pad improve heat transfer from the MOSFETs for better cooling performance.

Build on a Solid Foundation

Prime B560 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of 11th Generation Intel® Core™ processors. Prime B560M-K is geared to cater to the demands of these high-core count CPUs.

6+1+1 Power Stages

A VRM with 6+1+1 Power Stages delivers the power and efficiency that the latest Intel processors demand.

Lighting Control

With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolor lighting displays with static, blinking, fading, and strobing effects.

Write a review

Note: HTML is not translated!
Bad Good

What is the price of ASUS PRIME B560M-K 11th Gen Intel Motherboard in Bangladesh?

The latest price of ASUS PRIME B560M-K 11th Gen Intel Motherboard in Bangladesh is 10,500৳ . . You can buy the ASUS PRIME B560M-K 11th Gen Intel Motherboard at best price from our website or visit any of our showrooms. Follow us on Facebook For Regular updates & Offer.
