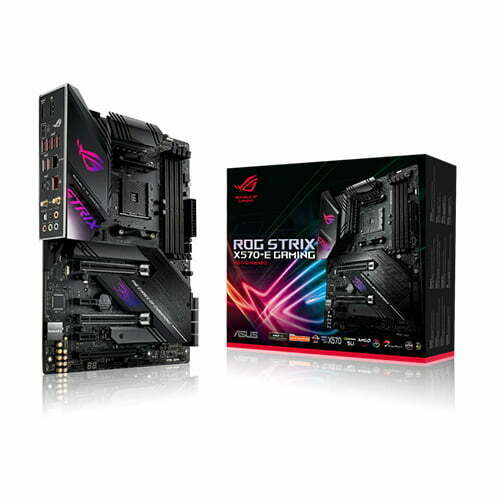

Asus ROG Strix X570-E Gaming AMD AM4 Motherboard
Asus ROG Strix X570-E Gaming Motherboard Ready for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed. ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers. 12+4 power stages with ProCool II power connector, alloy chokes, and durable capacitors to support multi-core processors. Active chipset heatsink, MOS heatsink with 8mm Heatpipe, dual onboard M.2 heatsinks, and a water pump + header. Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors. 2.5Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V. Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig. High-fidelity audio with SupremeFX S1220A, DTS® Sound Unbound, and Sonic Studio III to draw you deeper into the action. ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector, and BIOS FlashBack for a friendlier building experience.
.. |
ASUS PRIME X670-P WIFI-CSM AMD ATX MotherboardThe ASUS PRIME X670-P WIFI-CSM AMD ATX Motherboard is a high-performance motherboard designed for AMD Ryzen™ 7000 Series Desktop Processors. It features a robust set of features and components that cater to the needs of gamers, content creators, and PC enthusiasts.With a 256 Mb Flash ROM and UEFI AMI BIOS, this motherboard offers a reliable and user-friendly interface for system configuration and customization. The AMD X670 chipset provides excellent performance and supports the latest technologies.The motherboard comes in the ATX form factor, measuring 12 inches by 9.6 inches (30.5 cm x 24.4 cm), ensuring compatibility with a wide range of PC cases. It includes several accessories such as SATA cables, ASUS Wi-Fi moving antennas, an I/O shield, and screw packages for M.2 SSDs, among others.The audio capabilities of the ASUS PRIME X670-P are impressive, featuring a Realtek 7.1 Surround Sound High Definition Audio CODEC. It supports jack-detection, multi-streaming, and front panel jack-retasking. The motherboard also includes audio shielding, premium audio capacitors, and dedicated audio PCB layers for superior audio quality.For connectivity, the back panel I/O ports offer a comprehensive range of options, including USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, DisplayPort, HDMI, Wi-Fi, Ethernet, and audio jacks. The motherboard supports up to three M.2 slots and six SATA 6Gb/s ports for ample storage possibilities.The ASUS PRIME X670-P provides extensive internal I/O connectors for fans and cooling, power, storage, USB, RGB lighting, and more. It supports up to 128GB of DDR5 memory and features ASUS Exclusive Software such as Armoury Crate, AI Suite 3, and ASUS CPU-Z for efficient system management and customization.With ASUS 5X PROTECTION III, the motherboard ensures reliable performance and protection with features like DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, Safeslot Core+, and Stainless-Steel Back I/O. It also incorporates ASUS Thermal Solution, including M.2 heatsinks and a VRM heatsink design, to keep the system cool during demanding tasks.The ASUS PRIME X670-P WIFI-CSM AMD ATX Motherboard offers a powerful and feature-rich platform for building high-performance PCs. Whether you're a gamer, content creator, or power user, this motherboard provides the necessary performance, connectivity, and customization options to meet your needs.FeaturesAMD X670 Chipset: The motherboard is built around the AMD X670 chipset, providing excellent compatibility and performance for the latest AMD Ryzen processors.ATX Form Factor: The motherboard follows the ATX form factor, which ensures compatibility with a wide range of computer cases and components.Comprehensive Accessories: The motherboard comes with various accessories including SATA cables, ASUS Wi-Fi moving antennas, I/O Shield, Rubber Package for M.2, Screw Packages for M.2 SSDs, and documentation such as an ACC Express Activation Key Card and User guide.High Definition Audio: The motherboard features a Realtek 7.1 Surround Sound High Definition Audio CODEC, offering immersive audio experiences. It supports up to 24-Bit/192 kHz playback and includes audio shielding, premium audio capacitors, and dedicated audio PCB layers for enhanced audio quality.Extensive I/O Ports: The back panel of the motherboard includes a range of I/O ports, such as USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, DisplayPort, HDMI, Wi-Fi Module, Realtek 2.5Gb Ethernet port, Audio jacks, BIOS FlashBack™ button, and PS/2 Keyboard/Mouse combo port.Expansion Slots: The motherboard offers multiple expansion slots, including one PCIe 4.0 x16 slot (supports x16 mode) for AMD Ryzen 7000 Series Desktop Processors, two PCIe 4.0 x16 slots (support x4 mode) from the AMD X670 chipset, and one PCIe 3.0 x1 slot. These slots provide flexibility for adding graphics cards, sound cards, and other expansion cards.Wireless Connectivity: The motherboard includes Wi-Fi 6 (802.11 a/b/g/n/ac/ax) for high-speed wireless networking and Bluetooth v5.2 for seamless connectivity with other Bluetooth-enabled devices... |
MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard
The MSI PRO X670-P WIFI Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB. It features a 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for a high-performance system and a non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI PRO X670-P WIFI Motherboard offers onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for maximum storage performance. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI PRO X670-P WIFI offers 2x PCIe Gen 5 x16 slots and 4x M.2 slots. The MEG series offers a stacked fin array heatsink and a heatpipe along with a MOSFET baseplate for effective heat dissipation from the VRMs... |
Gigabyte X670 AORUS ELITE AX AMD ATX Motherboard
The Gigabyte X670 AORUS ELITE AX Motherboard supports AMD Ryzen 7000 Series Processors for AMD socket AM5. It can deliver unparalleled performance with direct 16+2+2 Phases Digital VRM Solution. The Gigabyte X670 AORUS ELITE AX Motherboard comes with 4x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support. It supports DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules. It features 4x PCIe 5.0 x4 M.2 Connectors for next-generation storage. It has a Fins-Array III & M.2 Thermal Guard III to Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance. The new generation Fins-Array III delivers the ultimate thermal performance by using Extended Irregular fins to fill all available space and vastly increases surface area. A piece of Fins-Array III heatsink surface area is larger than 2 full-size ATX motherboard PCBs, therefore it tremendously boosts thermal efficiency and heat exchange performance. It also comes with SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design. M.2 Thermal Guard III is constructed with a 9X optimized heat dissipation surface to prevent throttling and bottleneck that the high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under a heavy workload. The special design of heatsink grooves in the direction of the CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency. The Gigabyte X670 AORUS ELITE AX Motherboard is equipped with the latest Wireless solution 802.11ax Wi-Fi 6E with a new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections, and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides a 4X range over BT 4.2 and faster transmission.
Gigabyte X670 AORUS ELITE AX VS BIOSTAR B550MH
INFORMATION
Gigabyte X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
BIOSTAR B550MH RACING AMD MOTHERBOARD
CHIPSET
AMD X670
N/A
FORM FACTOR
ATX Form Factor; 30.5cm x 24.4cm
Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection
CPU
AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors
Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors
Support for future AMD Ryzen processors with BIOS update
Key Features
Supported CPU: Ryzen 7000 Series Processors For Socket AM5
Supported RAM: 4x DDR5, Max 128GB
Graphics Output: 1 X HDMI
Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
