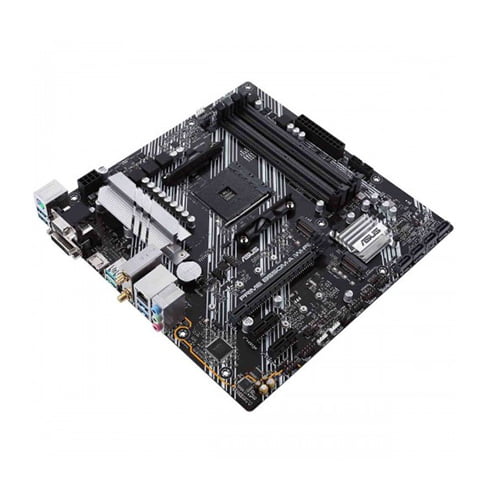

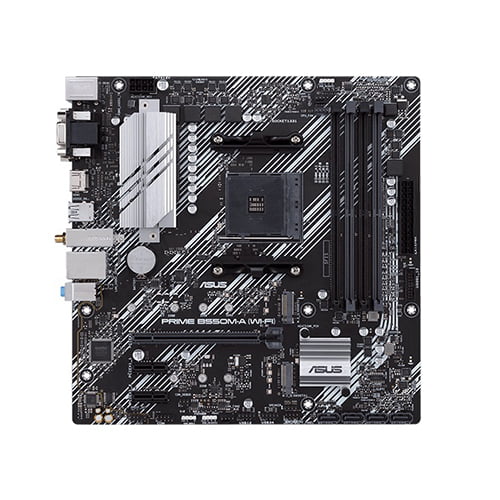

Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard

Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard
Based on 0 reviews. - Write a review

TBA

  • Stock: Up Coming
  • Brand: Asus
  • Model: B550M-A
  • SKU: B550M-A

Up Coming

Add to Wish List Compare this Product

Key Features

    • Model: Asus Prime B550M-A Wi-Fi
    • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
    • Aura Sync RGB
    • Ultrafast connectivity
    • Comprehensive cooling
View more details
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Graphics Specifications
Graphics 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)
Memory Specifications
Supported Memory 3rd Gen AMD Ryzen Processors 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Connector & ports
HDMI 1 x HDMI 2.1(4K@60HZ)
Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
LAN Port (s) Realtek RTL8111H 1Gb Ethernet Wireless Data Network: Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface Bluetooth: Bluetooth v5.1
Supported Storage Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCI-E 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

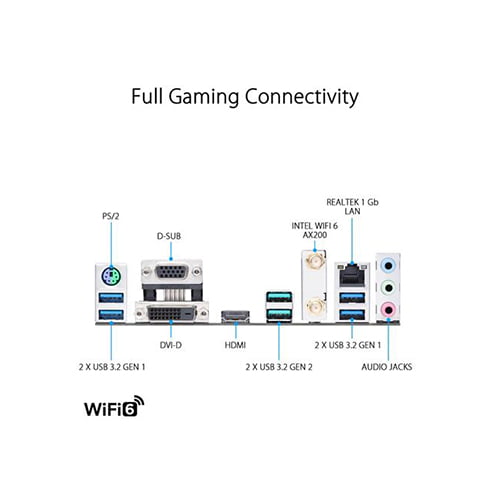

USB (s) Rear USB Port ( Total 6 ): 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ): 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Generel information
Type Dual-channel memory architecture
Basic Information Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors Chipset: AMD B550 BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm)
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI-D
M.2 Socket 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCI-E 3.0 x4 and SATA modes) storage devices support
Maximum Mamory 128GB
PCI 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1
Slots 4 x DDR4 memory slots
Warranty Information
Warranty 03 Years Warranty

Features

Asus Prime B550M-A Motherboard
  1. AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  2. Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
  3. Ultrafast connectivity: Dual M.2, PCIe 4.0, Intel® WiFi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
  4. Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware

Asus Prime B550M-A Motherboard Overview

ASUS Prime series is expertly engineered to unleash the full potential of the 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. A VRM heatsink with an underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance. Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. PCIe 4.0 M.2 Slot supports up to 22110 and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform. Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Intelligent design and premium hardware create audio quality, unlike anything you've ever experienced. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity. PCIe 4.0 M.2 (up to 64 Gbps) Achieve speed with onboard M.2 PCIe 4.0 M.2 Slot supports up to 22110 and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform [ninja_tables id="47234"]

Write a review

Note: HTML is not translated!
Bad Good

What is the Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard price in bd 2024?

The Asus B550M-A PC Components price in BD is 14,800৳. In today's market on 27-04-2024. Besides, You can buy this product on EMI 5,190৳/month total of 15,570৳ for 3 months EMI Plan, Up to 36-month EMI plans available through 25 banks. The Asus B550M-A PC Components is Up Coming now in our store (Call us to know about details of this product). 18 customer buy this product From 3717 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Asus B550M-A online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
