SPECIFICATIONS
| Supported CPU |
Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket |
| Chipset |
Intel Z490 Chipset |
| Form Factor |
12 in. x 10.9 in. (30.5 cm x 27.7 cm)
E-ATX Form Factor |
| PCI |
3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode
1x PCIe 3.0 x1 slot |
| M.2 Socket |
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices |
| Type |
Dual-Channel Architecture |
| Slots |
4 |
| Supported Memory |
Supports 1R 2133/2666/2933 MHz
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4400+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz |
| Maximum Memory |
128GB |
| Graphics |
Intel JHL7540 Thunderbolt 3 Controller

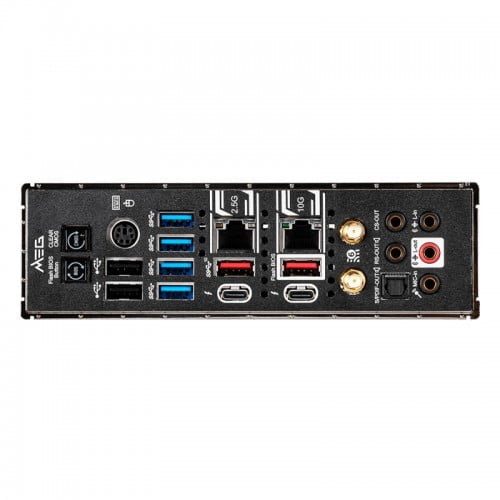

2x Thunderbolt 3 (Type-C) ports on the back panel
Supports Thunderbolt 3 with a maximum resolution of 5120x2880 @60 Hz
Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz |
| Max Shared Memory |
Maximum shared memory is 1GB |
| Display Port (s) |
1x Display Port 1.4 (4096x2304 @60 Hz) |
| USB (s) |
Intel Z490 Chipset
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia ASM1074 Chipset
8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors)
Intel JHL7540 Thunderbolt 3 Controller
2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel
Intel JHL7540 Thunderbolt 3 Controller
2x Thunderbolt 3 (USB Type-C) ports on the back panel
Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices
Supports up to 10 Gbps transfer rate with USB 3.2 Gen 2 10Gbps devices
Supports up to 5V/3A , 15W power charging
Supports Daisy-chain up to six ThunderboltTM 3 devices |
| LAN Port (s) |
1x Aquantia AQC107 10G LAN controller
1x Realtek RTL8125B 2.5G LAN controller |
| Supported Storage |
Intel Z490 Chipset
6x SATA 6Gb/s ports
3x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors |
| Audio |
Realtek ALC1220 Codec + ESS E9018 combo DAC
7.1-Channel High Definition Audio
Supports Optical S/PDIF output |
| Internal I/O Ports |
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin ATX PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
1x 3-pin Water Flow connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 2-pin Thermal Sensors connectors
1x TPM module connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector |
| Manufacturing Warranty |
03 Years Warranty |
| Special Features |
WIFI & BLUETOOTH
Intel AX201
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
Supports Bluetooth® 5.1 , FIPS, FISMA
The Wireless module is pre-install in the M2 (Key-E) slot |

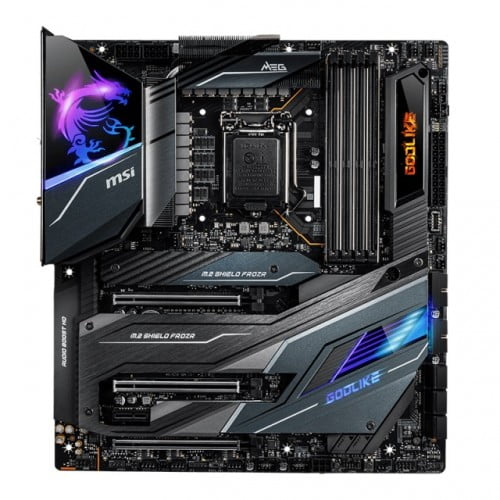

MSI MEG Z490 GODLIKE 10th Gen E-ATX Gaming Motherboard

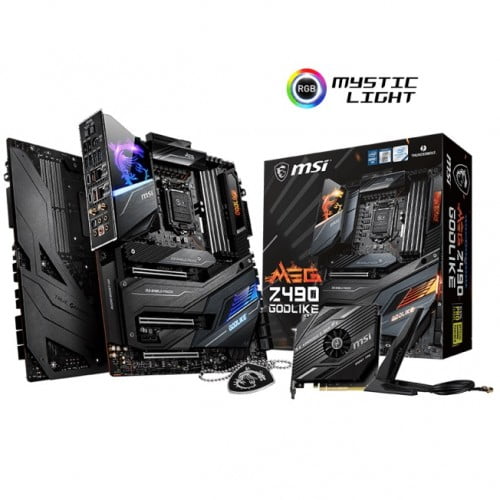

The MSI MEG Z490 GODLIKE LGA 1200 E-ATX Motherboard. Designed for high-end gamers, enthusiasts, and content creators, this E-ATX motherboard takes full advantage of the Intel Z490 chipset to support 10th generation Intel processors with the LGA 1200 socket. Up to 128GB of dual-channel DDR4 XMP memory, reaching 5000 MHz when overclocked, can be installed across four memory slots, allowing you to smoothly run complex 3D games with expansive environments and smoothly multitask demanding applications. TheMSI MEG Z490 GODLIKE Motherboard also features advanced cooling with support for up to three M.2 solid-state drives and six SATA III storage drives, which can be put into RAID 0, 1, 5, or 10 configurations. An included M.2 XPANDER-Z Gen 4 S card offers two extra M.2 slots with a dedicated cooling fan. The MSI MEG Z490 GODLIKE Motherboard has three PCIe 4.0 x16 slots can accommodate 2-way NVIDIA SLI or 3-way AMD CrossFire configurations to maximize your system's graphical capabilities for high frame rates, connecting 4K and 8K monitors, and faster video rendering times. An additional PCIe 3.0 x1 slot is available for compatible expansion cards.
The MSI MEG Z490 GODLIKE Motherboard also pairs the Realtek ALC1220 audio codec with an ESS SABRE E9018Q2C DAC chip to deliver deep and immersive 7.1-channel surround sound. Other features include superfast network connections via the wired Aquantia 10 Gigabit and Realtek 2.5 Gigabit Ethernet ports in addition to the built-in 802.11ax Wi-Fi. The MSI MEG Z490 GODLIKE Motherboard colorful OLED panel display can be configured to show system information or customized with animated GIFs. You can further customize your computing experience using the RGB headers to connect light strips, which can be synced with compatible peripherals such as mice and keyboards. Windows 10 or Windows 7 64-bit is required to take advantage of all the motherboard's features.
MSI MEG Z490 GODLIKE Motherboard Features:
- Supports 10th Generation Intel Core / Pentium Gold / Celeron Processors for LGA 1200 socket
- Supports dual channel DDR4 memory up to 128GB total (5000MHz)
- Triple Turbo M.2 with double-side M.2 Shield Frozr - transfer speeds of up to 32 GB/s bandwidth, with M.2 XPANDER-Z GEN4 S accessory card adds two additional M.2 slots
- 2x Thunderbolt 3 ports on the rear panel provide up to 40GB/s transfer speed. Supports daisy chain configurations and 4K displays.
- On-board 10G super LAN plus 2.5G LAN with Wi-Fi 6 (802.11ax)
- Frozr Heatsink designed with active cooling, Double Ball Bearings, Zero Frozr Technology, and MOSFET Backplates for high-performance heat dissipation
