Summary |
Specifications:
Power Supply Size: 160mm * 150mm * 85mm
Power Standard: Atx 12v
Applicable to Cpu Range: Amd, Intel
Pfc Type: Active Pfc
Rated Power: 550w
Maximum Power: 550w
Efficiency: 80%
Input Voltage: 160v-264v
3.3v Output Current 20a + 5v Output Current 15a + 12v1 Output Current 48a – 12v Output Current 0.3a + 5vsb Output Current 2.5a
Support Wide Voltage: Yes
Support Temperature Control Pwm: Yes
Certification: Cb, Ccc, Fcc, Class, B, Ce, Rohs
Product Weight: 1900g
Support Power: 20p / 24p Motherboard
Power Output Design: Multiplex + 12v
Ide Interface: 2
Sata Interface: 4
Cpu Interface: P4 + 4 19: Video Card Interface: (6pin + 2)* 2
03 Years Warranty

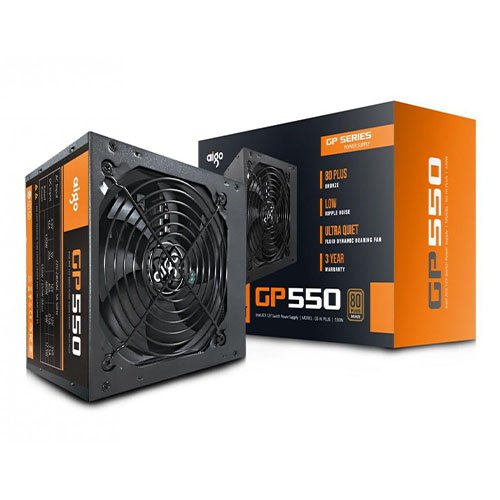

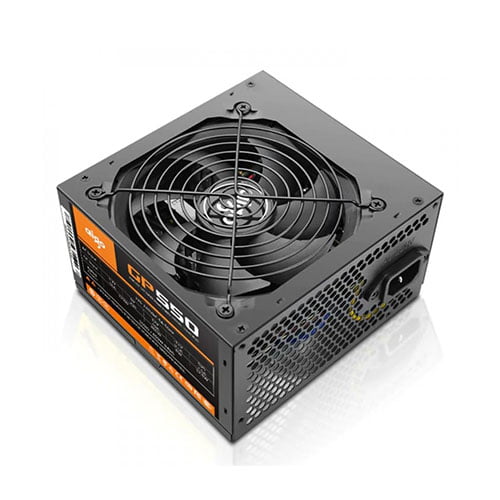

Aigo Gp550 550w POWER SUPPLY
The Aigo Gp550 550w POWER SUPPLY Rated Power 550 Watts, Suitable for High-end Computer Configuration Comply With Intel Atx12v Specification Design, Support Intel, Amd Full Range of Dual-core Platform,Energy Efficient Silent Fan.Built-in Pfc, Dual Magnetic Ring Magnetic Amplifier Circuit, Aigo Gp550 550w POWER SUPPLY High Frequency Low Resistance Filter Capacitor, Ensure That the Current is Pure and Stable. 12cm Hydraulic Bearing Fan, Quiet and Durable, Large Air Volume.Intelligent Temperature Control Circuit Design, Automatically Adjust Fan Speed, Extend Service Life.Large Speaker Capacity, Large Capacity, Support for Wide Use, Can Still Be Used Under Unstable Voltage Environment General.Multi-function Protection Circuit Design, With Over voltage, Over current, Overload, Under voltage, Short Circuit, Light Protection 9: Innovative Pest Control Technology Design.
Visit Ultratech for more updated prices in BD and follow us on Facebook for regular Offers... |
Key Features
Efficiency (Approx.)
Meet 80 PLUS Bronze efficiency
Others
Power Factor Correction APFC with PF value of 0.99
Support Motherboard RGB Sync Connectors 5V 3-pin Addressable (Digital) LED Header
Support C6/C7 power state Yes
Output
Total Power
600W
AC Input
100-240V, 4.5-9.5A, 47-63Hz
DC Output
+3.3V,+5V,+12V ,-12V, +5Vsb
Connector
Main Power
1 (20+4 Pin)
CPU
1 (4+4 Pin)
PCI-E
2 (6+2 Pin)
SATA
5 (5 Pin)
Molex
2 (4 Pin)
Floppy
1 (4 Pin)
Warranty Information
Manufacturing Warranty
03 years
Gamdias Kratos M1-600B Power Supply
Gamdias KRATOS M1 600B meets 80 PLUS Bronze efficiency, greatly reducing noise and operation cost. With built-in RGB lighting effects and addressable LEDs, a preferable individual style can be effortlessly achieved.
Meet 80 PLUS Bronze Efficiency
RGB Motherboard Sync
Neon-Flex RGB 30 built-in lighting effects
Addressable LEDs
Silent Mode
Support C6/C7 power state
Visit Ultratech for more updated price in BD and follow us on Facebook for regular Offers.
.. |
Cooler Master Elite V3 600W Power Supply
Cooler Master Elite V3 600W Power Supply efficiency is important because it directly affects you system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The new Elite V3 series has a guaranteed typical efficiency of 75%.
ACTIVE POWER FACTOR CORRECTION
A power supply unit works by taking power directly from the wall or other fixed power source, converting it to the correct output required by the connected components, and then distributing that power to said components. If any part of this process is interrupted or executed poorly, the connected components and the PSU itself could be damaged. Active PFC uses a circuit to correct power factor leading to reduced total harmonics, corrected AC input voltage, and increased overall efficiency output.
HIGHER TEMPERATURE RESISTANCE
The new Elite V3 has a maximum operating temperature of 40°C. That's at the level of many 80 Plus certified power supply units on the market today. This higher operating temperature allows you to power your system safely in warmer environments without having to worry about your system overheating or shutting off unexpectedly. The higher heat resistance also reduces temperature based wear, increasing the lifespan of the unit by a noticeable amount... |
Key Features
Efficiency (Approx.)
85% at typical load
Certification
80 PLUS Bronze
Fan Size
120mm Hydraulic Bearing (HYB) Fan
Input
Voltage
100-240 Vac (full range)
Frequency Range
60-50 Hz
Current
8-4 A
Output
Modular Type
Non-Modular
Total Power
550W
Connector
Main Power
ATX/MB 20+4 Pin x 1 : 550mm*1
CPU
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-E
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA
SATA x 6 : 500mm+120mm+120mm*2
Floppy
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm + 120mm + 120mm + 120mm *1
Warranty Information
Manufacturing Warranty
2 Years
Gigabyte P550B Power Supply Overview
Empower your computer with the Gigabyte P550B Power Supply from Gigabyte. Featuring a single +12V rail, this 550W PSU follows the Intel ATX 12V v2.31 form factor. A 120mm hydraulic bearing fan provides ample cooling and boasts a lifespan of more than four years. In addition to motherboard and CPU connectors, the GP-P550B also provides two PCIe and six SATA connectors, as well as three 4-pin peripheral connectors and a 4-pin floppy connector. Rated 80 PLUS Bronze, the Gigabyte GP-P550B delivers up to 85% efficiency and uses flat cables.
120mm Hydraulic Bearing Fan
A 120mm Hydraulic Bearing fan optimizes the noise reduction and thermal performance. The speed is adjusted according to automatic power detection, enabling longer and more stable fan operation... |
