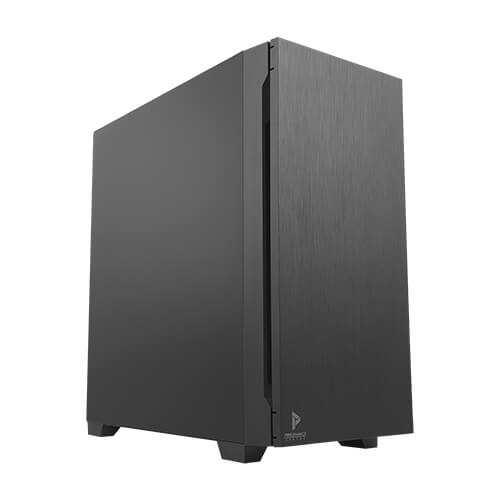

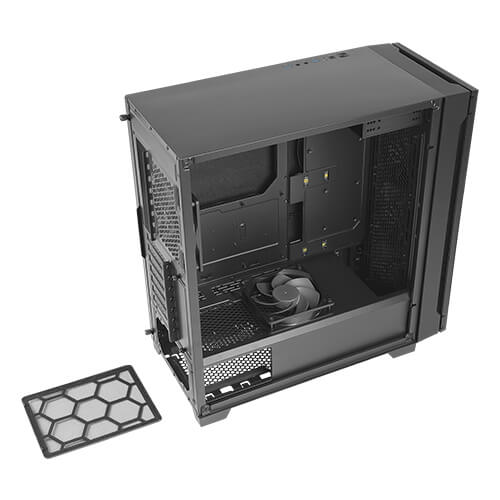

Antec P10 FLUX Mid Tower Silent Case Overview
The latest Antec P10 FLUX Mid Tower Silent Case comes with an industry-leading design of advanced ventilation, that taking the Performance Series silent cases to the next generation. This Antec case deliver remarkable performance upgrades and better productivity, it also means the functional requirement of PC equipment needs to be taken to the next level, especially the thermal performance.
F-LUX Platform

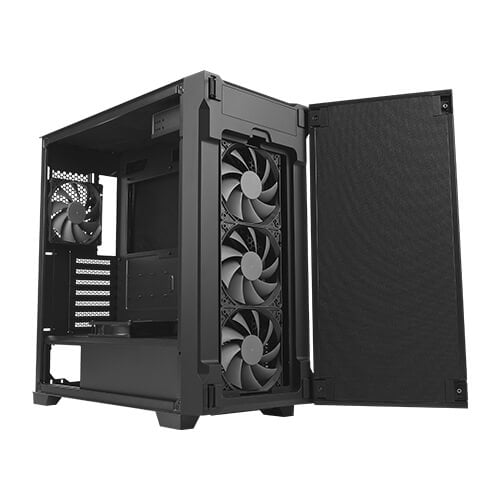

The F-LUX Platform is a new industry-leading and highly efficient design by Antec featuring an advanced case structure for excellent airflow combined and also here 5 x 120 mm fans included. A core element of the design ethos was to enhance GPU cooling performance. When the graphics card is functioning, enhancing the heat dissipation and gaming performance, the F-LUX Platform will provide massive airflow.
All-Round Directed Airflow
This case is festured with the air-concentrating front filter, P10 FLUX pulls in the air from all directions and enhances cooling. It is also comes with the designed of bars at various height, here, the front filter can concentrate airflow to improve thermal performance. And also this case has 11mm space between the front door and filter, that allows P10 Flux to pull in more air.
The Balance between Flow Luxury and Silence

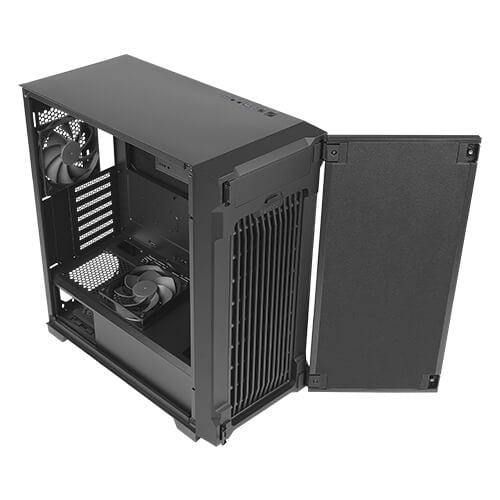

This new Antec case comes with a single press and open-or-close action, P10 FLUX can reach the performance you want, yet keep the balance between airflow and silence. The P10 FLUX features a reversible and swing-open front panel design. You can choose to install the front panel on either side according to your dominant hand or PC setup environment. With sound-dampening foam on the front door, sides and top, P10 FLUX ensures you the absolute silence.
Make it Cooler
The Antec P10 FLUX Mid Tower Silent Case keeps your gear cool with room for up to 360 mm radiator in the front & 120 mm at the rear.
.. |
Thermaltake Commander G33 ARGB Case Specifications
Features
SERIES : Commander
MODEL : G33 TG ARGB
CASE TYPE : Middle tower
SIDE PANEL : 4mm Tempered Glass x1
COLOR : Exterior & Interior: Black
MATERIAL : SPCC
EXPANSION SLOTS : 7 + 2
MOTHERBOARDS : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
PSU : Standard PS2 PSU (optional)
Interface
DIMENSION : 442 x 225 x 472 mm (17.4 x 8.85 x 18.58 inch)
NET WEIGHT : 7.72 kg / 17.02 lb
I/O PORT : USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, RGB Switch x 1
COOLING SYSTEM
Front (intake) :
200 x 200 x 30mm Addressable RGB fan
(600rpm, 24dBA) x 1
Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
DRIVE BAYS
2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket)
FAN SUPPORT
Front: 120mm x 3, 140mm x 2, 200mm x 2
Top: 120mm x 2, 140mm x 2
Rear: 120mm x 1, 140mm x 1
RADIATOR SUPPORT
Front: 280mm x 1 ,360mm x 1
Top: 240mm x 1
Rear: 120mm x 1
CLEARANCE
CPU cooler height limitation: 165mm
PSU length limitation: 160mm(With HDD Rack)
200mm(Without HDD Rack)
VGA length limitation: 300mm
VGA width limitation(Vertically): 45mm
RAM height limitation: 40mm(With radiator series)
Thermaltake Commander G33 Case Overview
Mid Tower Chassis
The Commander G33 Tempered Glass ARGB Edition mid-tower chassis is a brand-new high airflow case designed with a special mesh front panel. This entry-level chassis comes with a preinstalled 200mm ARGB fan that can be controlled via motherboard synchronization software or the RGB switch on the I/O port. Located at the rear of the chassis there is another 120mm standard fan preinstalled for outstanding ventilation. Other outstanding features include a 4mm tempered glass panel, a riser GPU support bracket, and removable magnetic filters for overall exceptional pc performance which is the ideal pc case for both gamers and enthusiasts.
One Built-in 200mm 5V ARGB Fan
The Commander G33 comes with one preinstalled 200mm 5V ARGB fan at the front and one 120mm standard fan at the rear. The fans feature 9 addressable LEDs, hydraulic bearings, and 16.8 million-color illumination to guarantee high airflow and awesome lighting modes.
The 5V ARGB fan can be controlled by using a simple interface built into the I/O panel that cycles through 7 different lighting modes and a range of different color options or your motherboard software.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock official websites.
Tempered Glass Panels
The chassis comes with one 4mm tempered glass panel on the left side, thicker and more scratch resistant when compared to standard acrylic. On top of this, the enlarged window design enables you to display and admire all your components in their full RGB glory.
Vertical GPU Mount
Specially designed with a dual GPU placement option, the Commander G33 has the support for vertical graphic card layouts with dual PCI-E slot designs. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging but also helps to reduce the weight on the motherboard. Thermaltake PCI-e X16 Riser Cable (Optional) – Supports a wide range of GPU solutions.
Excellent Dust Filtration
A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters provide excellent protection against both dirt and dust.
Opportunities For High-End Expansion
Commander G33 has good expandability. It can support a CPU cooler with a maximum height of 165mm, two-way VGA placement of up to 300mm in length for horizontal and 45mm in width for vertical option, a power supply with a length of up to 200mm (without HDD Rack) and RAM height limitation up to 40mm (with radiator series). Optimized for excellent cooling capability with one 200mm ARGB front fan and one 120mm rear fan preinstalled, the Commander G33 can house up to two 200mm at the front, two 140mm on the top, and one 140mm at the rear.
Visit Ultratech for more updated prices in BD and follow us on Facebook for regular Offers... |
Features
SERIES : Commander
MODEL : G31 TG ARGB
CASE TYPE : Middle tower
SIDE PANEL : 4mm Tempered Glass x1
COLOR : Exterior & Interior: Black
MATERIAL : SPCC
EXPANSION SLOTS : 7 + 2
MOTHERBOARDS : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
PSU : Standard PS2 PSU (optional)
Interface
DIMENSION : 445.57 x 225 x 471 mm (17.6 x 8.85 x 18.58 inch)
NET WEIGHT : 7.7 kg / 16.97 lb
I/O PORT : USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, RGB Switch x 1
COOLING SYSTEM
Front (intake) :
200 x 200 x 30mm Addressable RGB fan
(600rpm, 24dBA) x 1
Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
DRIVE BAYS
2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket)
FAN SUPPORT
Front: 3 x 120mm, 2 x 140mm, 2 x 200mm
Top: 2 x 120mm, 2 x 140mm
Rear: 1 x 120mm, 1 x 140mm
RADIATOR SUPPORT
Front: 280mm x 1 , 360mm x 1
Top: 240mm x 1
Rear: 120mm x 1
CLEARANCE
CPU cooler height limitation: 165mm
PSU length limitation: 160mm(With HDD Rack)
200mm(Without HDD Rack)
VGA length limitation: 300mm
VGA width limitation(Vertically): 45mm
RAM height limitation: 40mm(With radiator series)
Thermaltake Commander G31 Case Overview
Mid Tower Chassis
The Commander G31 Tempered Glass ARGB Edition mid-tower chassis is a brand-new high airflow case designed with a special mesh front panel. This entry-level chassis comes with a preinstalled 200mm ARGB fan that can be controlled via motherboard synchronization software or the RGB switch on the I/O port. Located at the rear of the chassis there is another 120mm standard fan preinstalled for outstanding ventilation. Other outstanding features include a 4mm tempered glass panel, a riser GPU support bracket, and removable magnetic filters for overall exceptional pc performance which is the ideal pc case for both gamers and enthusiasts.
One Built-in 200mm 5V ARGB Fan
The Commander G31 comes with one preinstalled 200mm 5V ARGB fan at the front and one 120mm standard fan at the rear. The fans feature 9 addressable LEDs, hydraulic bearings, and 16.8 million-color illumination to guarantee high airflow and awesome lighting modes.
The 5V ARGB fan can be controlled by using a simple interface built into the I/O panel that cycles through 7 different lighting modes and a range of different color options or your motherboard software.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock official websites.
Tempered Glass Panels
The chassis comes with one 4mm tempered glass panel on the left side, thicker and more scratch resistant when compared to standard acrylic. On top of this, the enlarged window design enables you to display and admire all your components in their full RGB glory.
Vertical GPU Mount
Specially designed with a dual GPU placement option, the Commander G31 has the support for vertical graphic card layouts with dual PCI-E slot designs. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging but also helps to reduce the weight on the motherboard. Thermaltake PCI-e X16 Riser Cable (Optional) – Supports a wide range of GPU solutions.
Excellent Dust Filtration
A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters provide excellent protection against both dirt and dust.
Opportunities For High-End Expansion
Commander G31 has good expandability. It can support a CPU cooler with a maximum height of 165mm, two-way VGA placement of up to 300mm in length for horizontal and 45mm in width for vertical option, a power supply with a length of up to 200mm (without HDD Rack) and RAM height limitation up to 40mm (with radiator series). Optimized for excellent cooling capability with one 200mm ARGB front fan and one 120mm rear fan preinstalled, the Commander G31 can house up to two 200mm at the front, two 140mm on the top, and one 140mm at the rear.
Visit Ultratech for more updated prices in BD and follow us on Facebook for regular Offers... |
More Information
P/N
CA-1L5-00M1WN-01
SERIES
Versa
MODEL
Versa J22 TG RGB
CASE TYPE
Middle tower
DIMENSION (H X W X D)
447 x 205 x 455 mm
(17.6 x 8.1 x 17.91 inch)
NET WEIGHT
7.1 kg / 15.65 lb
SIDE PANEL
4mm Tempered Glass x1
COLOR
Exterior & Interior : Black
MATERIAL
SPCC
COOLING SYSTEM
Rear (exhaust) :
120 x 120 x 25 mm RGB fan
(1000rpm, 16dBA)
Front (intake) :
120 x 120 x 25 mm RGB Fan
(1000rpm, 16dBA) x2
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
1x 5.25”; 2 x 2.5“
2x 3.5’’ or 2.5’’(HDD Tray); 2 x 2.5”(HDD Bracket)
EXPANSION SLOTS
7
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT
USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 140mm
Top:
2 x 120mm, 2 x 140mm
Rear:
1 x 120mm
RADIATOR SUPPORT
Front:
1 x 240mm, 1 x 280mm
Top:
1 x 240mm
Rear:
1 x 120mm
CLEARANCE
CPU cooler height limitation: 160mm
VGA length limitation: 310mm
PSU length limitation: 170mm
Thermaltake Versa J22 Tempered Glass
The Versa J22 is designed for the PC builder who wants a classic look and 5.25” bay support, but wants amazing cooling performance and tempered glass as well. The special RGB edition of the J22 comes with 3 built-in 120mm 12V RGB fans that are dual-mode controllable either via the I/O port RGB button or the synchronization with enthusiasts’ favorite RGB capable motherboard brands, including Asus, Gigabyte, MSI, ASRock, and Biostar.
The J22 is a standard mid-tower with ATX support, but it also boasts a suite of premium features that make it the most outstanding standard case you’ve seen
