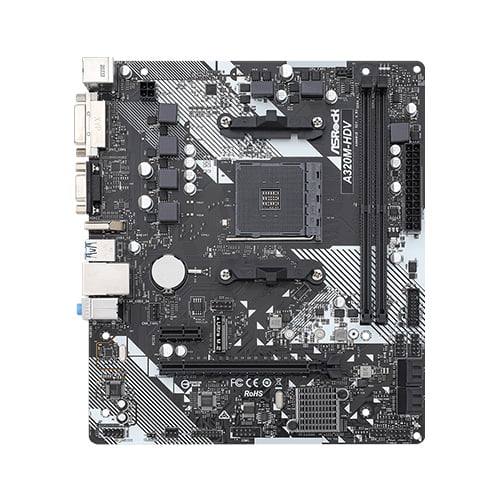

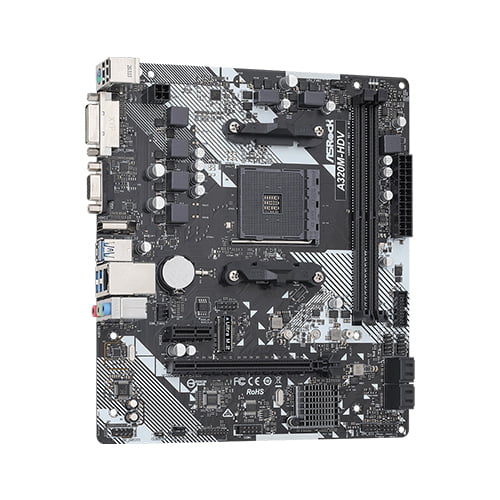

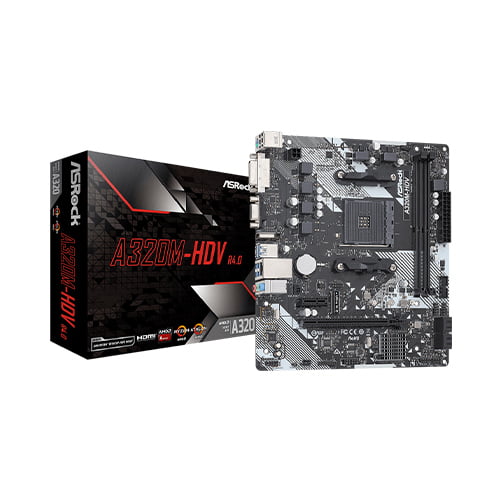

ASRock A320M-HDV R4.0 AMD Motherboard

ASRock A320M-HDV R4.0 AMD Motherboard Overview

ASRock A320M-HDV R4.0 AMD Motherboard built-in AMD AM4 Socket with  AMD Promontory A320 chipset. This Motherboard supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. The main component of the Motherboard This Motherboard Supports a CPU  up to 105W with AMD Socket AM4 A-Series APUs and Ryzen Series CPUs.It has High-Density Glass Fabric PCB, Sapphire Black PCB, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports) and ASRock Live Update & APP Shop o meet most of the user’s need. For graphical support, It has AMD Radeon Vega Series Graphics in Ryzen Series APU and AMD Radeon R-Series Graphics in A-series APU. That Motherboard can supports D-Sub resolution up to 2048x1536 @ 60Hz, DVI-D resolution up to 1920x1200 @ 60Hz) and HDMI (resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30H) graphics output options. In this amazing ASRock Motherboard the ASRock APP Charger, ASRock XFast LAN is used.Dual-Channel DDR4 Memory Technology (2 x DDR4 DIMM Slots). Moreover, In this exclusive Motherboard used in different types of memory storage; these are - Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Pinnacle R2400/2133 ECC & noidge) support DDR4 3200+(OC) / 2933(OC) / 2667/n-ECC, un-buffered memory, AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory, AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory, Max. the capacity of system memory: 32GB, 15μ Gold Contact in DIMM Slot. They have to include PCI-E x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H and Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, and PXE in this exclusive Motherboard. Special Features of this Motherboard That must be considered Have a look at the special features of this board that might firm your buying decision. This  Motherboard supports PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.PCB appearance represents rock-solid quality and gives the motherboard a more mysterious touch. This Motherboard High-Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity and also the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. You can easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. For gaming or entertainment, these are the features one should consider of purchasing it.
