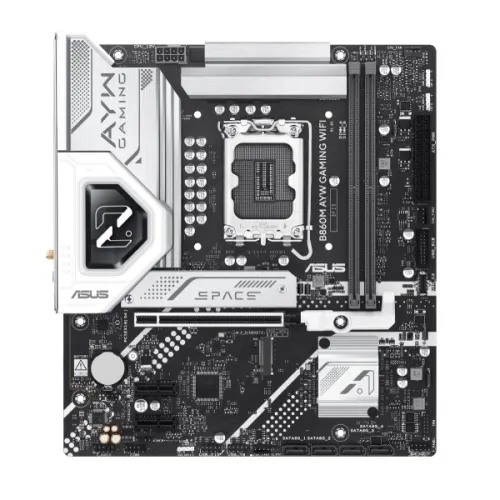

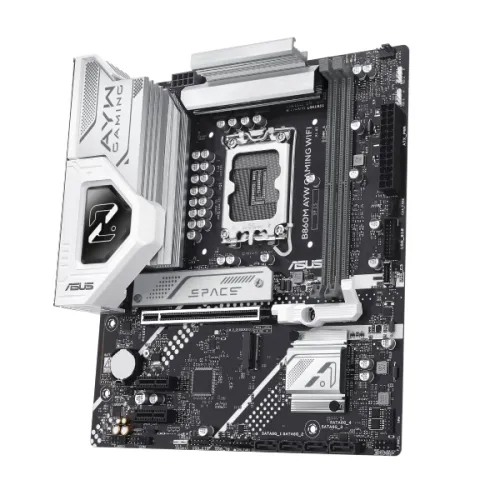

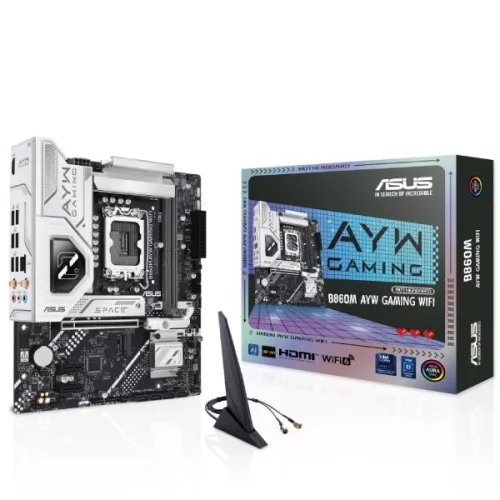

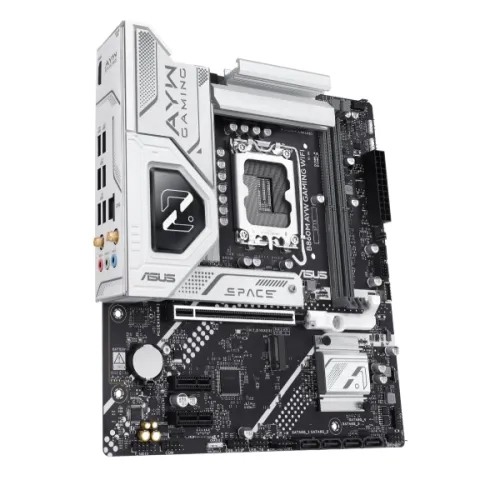

ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard

Name: ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard
Brand: Asus
SKU: UT-12886
Price: 25000 BDT
Availability: InStock
Rating: 5 (1 reviews)

Product ID: UT-12886
Customer rating: ★★★★★ 5.0 (1)
Availability: In stock
Questions: 0 answered

1 / 5

All prices include VAT. 0% EMI from ৳2,083/mo on 29 banks.

Save ৳3,000 -11%৳25,000~~Was ৳28,000~~

Key features

Full specs

Supported CPUIntel Core Ultra Processors (Series 2), LGA 1851
Supported RAM2x DDR5, Max 128GB, Support up to 8800+MT/s (OC)
Graphics Output1 x HDMI, Supports 4K@60Hz as specified in HDMI 2.1
Features2x M.2 Slot, 1 x 2.5Gb LAN, Wi-Fi 6, Bluetooth 5.3

0% EMI on credit cards of 29 banks — ৳2,083/mo for 12 months.
Online price saves you ৳3,000 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandAsus330 productsBrowse all →

Specifications

Key Specifications

Processor Type	Intel
Socket	LGA1851
Chipset	Intel B860
Form Factor	Micro ATX

RAM Type	DDR5
Maximum Memory	128GB
Memory Slots	2 Slots
Features	Wi-Fi, Bluetooth, M.2, RGB, USB Type-C, PCIe 5.0

Processor

Supported CPU	Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Memory

Memory	Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)

Expansion & Storage

Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 2 x PCIe 4.0 x1 slots

Storage

M.2 Socket: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Supported Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Graphics & Display

Onboard Graphics	1 x HDMITM port Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.

Display Outputs	1 x HDMI

Networking

LAN	1 x Realtek 2.5Gb Ethernet ASUS LANGuard

Wireless	Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3

Audio

Audio	3 x Audio jacks

Ports & Connectors

USB

Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A)** Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C® power delivery output: max. 5V/3A. ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Internal Connectors

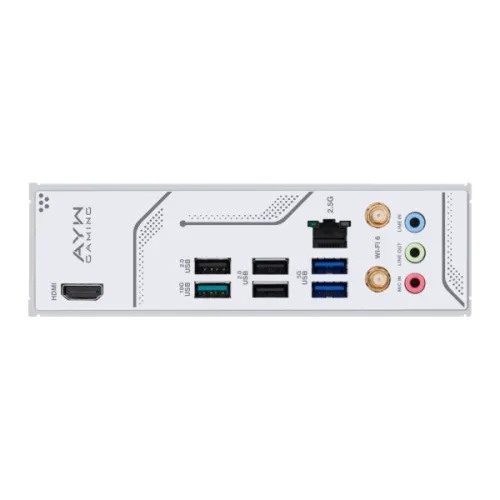

Back Panel I/O Ports 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMITM port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header

Other Features

BIOS	256(128+128) Mb Flash ROM, UEFI AMI BIOS
Special Features	ASUS 5X PROTECTION III DIGI+VRM LANGuard Overvoltage protection SafeSlot Core+ Stainless-steel back I/O ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsinks design ASUS EZ DIY ProCool Pre-mounted I/O shield Aura Sync Addressable Gen2 headers

Bundled Software	ASUS Exclusive Software Armoury Crate Aura Sync Fan Xpert 2+ Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash ASUS UEFI BIOS EZ Mode ASUS MyHotkey

Warranty

Warranty	3 Years

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard

The ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX PC Motherboard is a high-performance gaming and workstation motherboard designed for Inte l Core Ultra Processors (Series 2) with LGA1851 socket support.Powered by the Intel B860 chipset, it supports Intel Turbo Boost Technology 2.0, Turbo Boost Max Technology 3.0, and features DDR5 memory up to 128GB at 8800+ MT/s (OC) with Intel XMP and ASUS Enhanced Memory Profile III (AEMPIII). This makes it a perfect gaming motherboard for high-performance gaming PCs, content creation, and professional computing.

High-Performance Expansion and Storage

Equipped with one PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots, the motherboard supports advanced graphics cards and expansion devices. Storage includes two M.2 slots and four SATA 6Gb/s ports, with M.2_1 supporting PCIe 5.0 x4 and M.2_2 supporting PCIe 4.0 x4, plus RAID 0/1/5/10 through Intel Rapid Storage Technology. This ensures ultra-fast SSD and HDD performance and versatile storage solutions for gaming PCs, workstations, and multimedia setups.

Immersive Visuals, Audio, and Connectivity

Supports 4K@60Hz HDMI 2.1 output, with VGA resolution dependent on processor or GPU. Audio features Realtek 7.1 Surround Sound HD CODEC, 24-bit/192kHz playback, audio shielding, premium capacitors, and dedicated PCB layers. Networking includes Realtek 2.5Gb Ethernet with ASUS LANGuard, Wi-Fi 6 (1x1, dual-band), and Bluetooth v5.3, providing stable wired and wireless connectivity. Front and rear USB ports include USB 10Gbps Type-A, USB 5Gbps Type-A/Type-C, and USB 2.0, supporting high-speed data transfer and multiple device connections.

Why Choose ASUS B860M AYW GAMING WIFI?

Supports Intel Core Ultra Processors (Series 2) with LGA1851 socket
DDR5 memory up to 128GB, 8800+ MT/s (OC), Intel XMP & AEMPIII
2 x M.2 slots + 4 x SATA ports with RAID 0/1/5/10
PCIe 4.0 x16 and PCIe 4.0 x1 slots for graphics and expansion
Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth v5.3 connectivity
HDMI 2.1 4K@60Hz output and Realtek 7.1 Surround Sound audio
ASUS 5X Protection III, Q-Design, VRM/M.2 heatsinks, and Aura Sync

Buy Now ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard at Ultra Technology

The ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard combines DDR5 high-speed memory, PCIe 4.0 expansion, dual M.2 storage, Wi-Fi 6, 7.1 audio, and robust ASUS protection features—ideal for high-performance gaming PCs, content creation, and modern workstation builds.

Buy ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard from Ultra Technology

Get the ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard from Ultra Technology for ৳25,000 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from Asus, explore more Asus Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.

Reviews 1

5.0out of 5

★★★★★Based on 1 review

Aman1 Sept 2025
★★★★★
Excellent ASUS GAMING WIFI motherboard. smooth 4K gaming experience.
