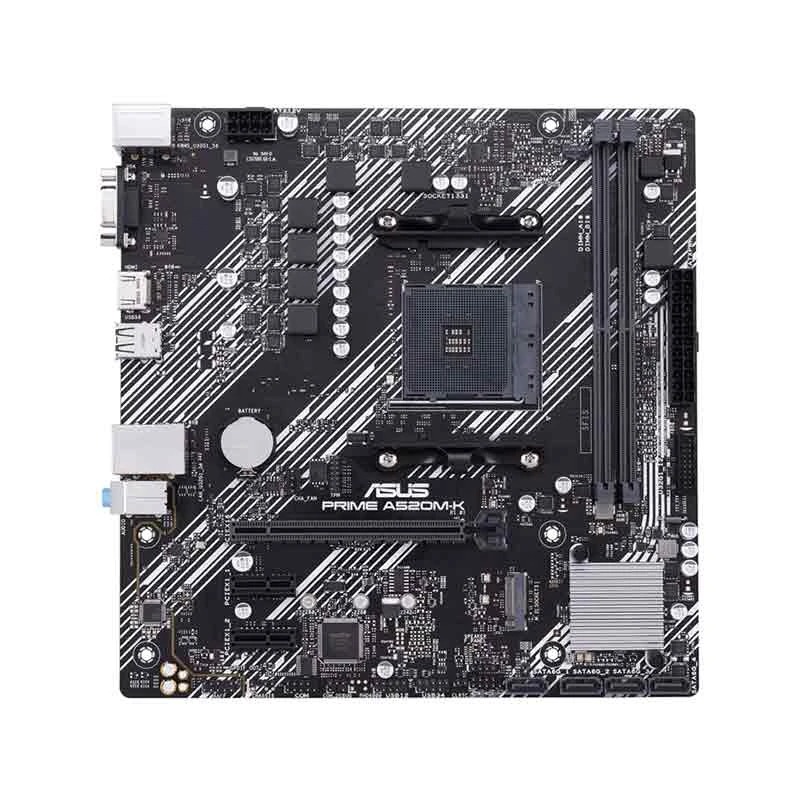

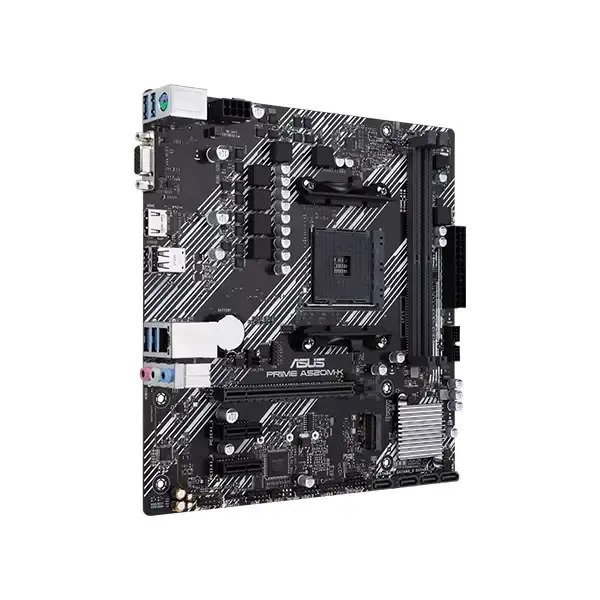

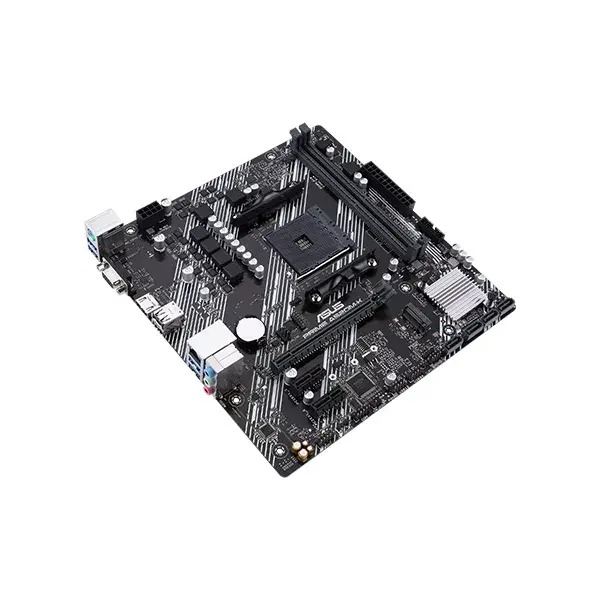

ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard

Product ID: UT-14241
Customer rating: No reviews yet
Availability: In stock
Questions: 0 answered

1 / 5

All prices include VAT. 0% EMI from ৳750/mo on 29 banks.

Save ৳800 -8%৳9,000~~Was ৳9,800~~

Key features

Full specs

Supported CPURyzen Series 5000/ 5000 G/ 4000 G/ 3000/ 3000 G
Form FactormATX
Memory Max.64GB
Ram TypeDDR4

0% EMI on credit cards of 29 banks — ৳750/mo for 12 months.
Online price saves you ৳800 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandAsus330 productsBrowse all →

Specifications

Key Specifications

Processor Type	AMD
Socket	AM4
Chipset	AMD A520
Form Factor	Micro ATX

RAM Type	DDR4
Maximum Memory	64GB
Memory Slots	2 Slots
Features	M.2

Processor

Supported CPU	AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *

Memory

Memory	2 x DIMM, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C./3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture, ECC Memory (ECC mode) support varies by CPU.

Expansion & Storage

Expansion Slots	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors AMD A520 Chipset,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode)

Storage	AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors: Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD A520 Chipset: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10

Graphics & Display

Onboard Graphics	1 x HDMI 2.1(4K@60HZ)

Networking

LAN	Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard

Audio

Audio	Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Shielding- Dedicated audio PCB layers Audio Feature:* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Ports & Connectors

USB	Front USB Port: 4 x USB 2.0 port(s)(4 x Type-A) ( Total 6 ) Rear USB Port ( Total 6 ): 4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),2 x USB 2.0 port(s)(2 x Type-A)

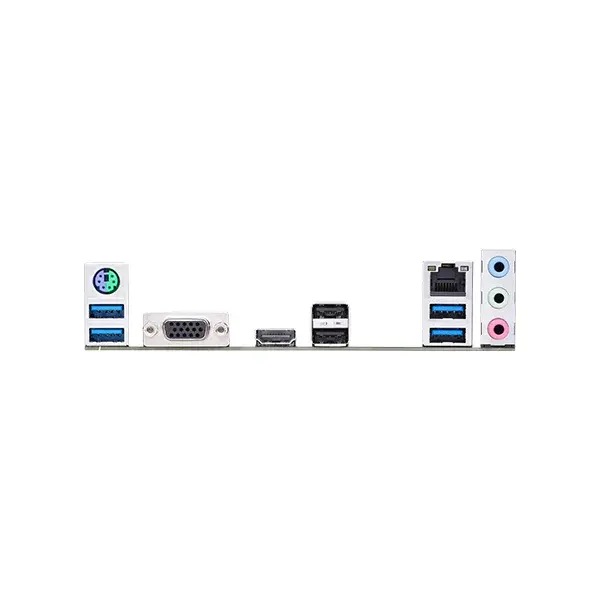

Rear Panel I/O	4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s)

Internal Connectors

1 x COM port header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header,4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector

Other Features

BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Special Features	ASUS 5X PROTECTION III ASUS DIGI+ VRM ASUS LANGuard ASUS Overvoltage Protection ASUS SafeSlot Core ASUS Stainless-Steel Back I/O ASUS Q-Design ASUS Q-DIMM ASUS Q-Slot ASUS Thermal Solution Aluminum heatsink design

Operating System	Windows 10 64-bit
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-Virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode

Warranty

Warranty	3-Year Brand Warranty

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

ASUS PRIME A520M-K/CSM AMD AM4 Micro-ATX Motherboard

The ASUS PRIME A520M-K/CSM AMD AM4 Micro-ATX Motherboard is a reliable and budget-friendly solution designed for users building an efficient AMD-based desktop PC. Engineered with ASUS's renowned quality and stability, this motherboard offers excellent compatibility with AMD Ryzen processors, making it an ideal choice for office work, home computing, education, and entry-level gaming systems. Its compact Micro-ATX design ensures compatibility with a wide range of PC cases while providing essential features for modern computing. Built on the AMD A520 chipset, the ASUS PRIME A520M-K/CSM supports AMD Ryzen processors and DDR4 memory, delivering smooth performance for multitasking, productivity applications, web browsing, and entertainment. The motherboard is designed with advanced protection features and premium components to ensure stable and long-lasting operation under daily workloads. With support for high-speed storage solutions, multiple USB connectivity options, and PCIe expansion capabilities, the motherboard provides the flexibility needed for future upgrades. ASUS engineering focuses on reliability and efficiency, allowing users to build a dependable PC without exceeding their budget. Whether you are assembling a new desktop, upgrading an existing system, or building a business workstation, the ASUS PRIME A520M-K/CSM delivers dependable performance, durability, and value for everyday computing needs.

Features of ASUS PRIME A520M-K/CSM AMD AM4 Micro-ATX Motherboard

AMD AM4 Socket Support
AMD A520 Chipset
Micro-ATX Form Factor
Compatible with AMD Ryzen Processors
DDR4 Memory Support
PCIe Expansion Slot Support
M.2 High-Speed Storage Support
SATA Storage Connectivity
Multiple USB Ports
ASUS Protection Technologies
Reliable Power Delivery Design
Business-Class Stability and Durability

Benefits of ASUS PRIME A520M-K/CSM AMD AM4 Micro-ATX Motherboard

Provides a stable platform for AMD Ryzen processors
Supports fast DDR4 memory for smooth performance
Offers flexibility for future storage upgrades
Suitable for office, education, and home use
Delivers reliable day-to-day computing performance
Compact design fits a variety of PC cases
Supports modern storage and connectivity options
Built with ASUS quality and durability

Why Choose ASUS PRIME A520M-K/CSM AMD AM4 Micro-ATX Motherboard?

The ASUS PRIME A520M-K/CSM is an excellent choice for users seeking a dependable and cost-effective motherboard for AMD Ryzen processors. Its combination of stability, compatibility, and upgrade flexibility makes it suitable for a wide range of applications, from office productivity to home entertainment and everyday computing.

With ASUS's commitment to quality engineering and system reliability, users can build a PC that delivers consistent performance and long-term dependability. Its Micro-ATX design also makes it a practical option for compact desktop builds.

Why Buy ASUS PRIME A520M-K/CSM AMD AM4 Micro-ATX Motherboard from Ultra Technology?

Ultra Technology offers genuine ASUS motherboards at competitive prices in Bangladesh. Customers receive authentic products backed by professional customer support and dependable service.

Whether you are building a new PC or upgrading your current system, Ultra Technology provides trusted hardware solutions, expert guidance, and a smooth purchasing experience to help you get the best value for your investment.

FAQ

Q1: Which processors are supported by this motherboard?

It supports AMD Ryzen processors that are compatible with the AM4 socket platform.

Q2: Does this motherboard support M.2 SSDs?

Yes, the motherboard includes M.2 support for high-speed storage devices.

Q3: Is this motherboard suitable for office and home PCs?

Yes, it is an excellent choice for office work, online learning, productivity, and everyday computing tasks.

Buy ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard from Ultra Technology

Get the ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard from Ultra Technology for ৳9,000 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from Asus, explore more Asus AMD Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
