ASUS PRIME B560-PLUS 11th Gen Intel ATX Motherboard

Name: ASUS PRIME B560-PLUS 11th Gen Intel ATX Motherboard
Brand: Asus
SKU: B560-P
Price: 14000.00 BDT
Availability: OutOfStock

ASUS PRIME B560-PLUS 11th Gen Intel ATX Motherboard

Based on 0 reviews. - Write a review

TBA

Stock: Out Of Stock
Brand: Asus
Model: B560-P
SKU: B560-P

Out Of Stock

Add to Wish List Compare this Product

Key Features

- ATX Form Factor
- Intel B560 Chipset
- LGA 1200 Socket
- 4 x Dual-Channel DDR4 Slots
- 6 x SATA III, 2 x M.2
- 1 x PCIe 4.0 x16 Slot

View more details

Contact for Bulk Quantity: 01771833944

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

Main Features
Audio	3 x 3.5 mm
Memory Specifications
Memory Slots	4 x 288-Pin
Generel information
Air Cooling	1 x 4-Pin CPU 3 x 4-Pin System
Channel Architecture	Dual Channel
CPU	Chipset: Intel B560 CPU Socket: LGA 1200

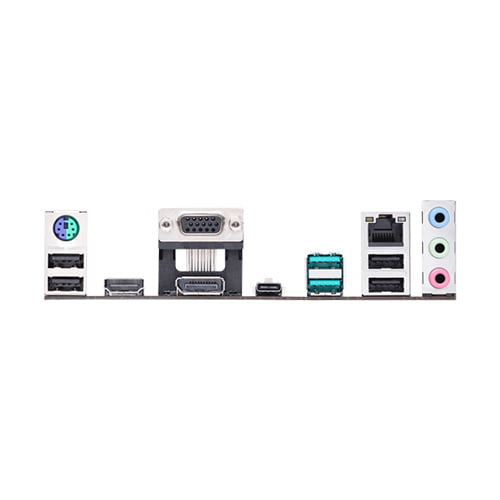

Display	1 x DisplayPort 1 x HDMI 1 x VGA
ECC Support	Non-ECC Unbuffered
Ethernet / Controller	1 x Intel I219-V Gigabit
Expansion Slots	1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1
I/O Connection Headers	USB 3.1 / USB 3.2 Gen 1
Legacy	1 x Serial
M.2	1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4) 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
Maximum Capacity	128 GB
Memory Support	DDR4 2133, 2400, 2666, 2800, 2933, 3200, 3333, 3466, 3600, 3733, 4000, 4266, 4400, 4600 MHz
Multi-GPU Support	None
Physical	Form Factor: ATX Dimensions: 9.2 x 12.0" / 23.4 x 30.5 cm
Power Connectors	1 x 24-Pin Mainboard 1 x 8-Pin ATX
PS/2	1 x Combo
SATA	6 x SATA III
Security	Chassis Intrusion, TPM Module
Thunderbolt	None
U.2	None
USB	1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port)

ASUS PRIME B560-PLUS Motherboard

ASUS PRIME B560-PLUS Motherboard is built on the Intel B560 chipset, giving you access to an LGA 1200 socket, allowing you to use a wide range of 10th and 11th gen processors. Four DDR4 RAM sockets allow you to install up to 128GB of memory for multitasking capabilities. Six SATA III and two M.2 PCIe ports allow you to expand your system storage with ease. Install an array of graphics and utility cards with one PCIe 4.0 x16, one PCIe 3.0 x16, and two PCIe 3.0 x1 slots. An array of USB 3.2 Gen 1 and Gen 2 ports allows you to connect various peripherals such as external drives and controllers with ease. A Gigabit Ethernet port gives you networking access, while HDMI and DisplayPort outputs allow you to experience crisp visuals for integrated graphics systems.

Intel 11th Gen

Ready for 11th Gen Intel Core processors, you can experience enhanced speeds with PCIe 4.0 capabilities, boosting performance for graphics cards, M.2 solid-state storage devices, and Thunderbolt 4 header support. The LGA 1200 socket allows you to equip your system with a range of 10th Gen Intel Core processors, giving you PCIe 3.0 speeds, and a wide choice of system components to choose from.

Thunderbolt Header

With a Thunderbolt internal header, you can experience enhanced transfer speeds, daisy-chain capabilities, charge devices, and even use high-resource demanding devices like external storage arrays with ease.

ASUS Optimem

The PRIME B560-PLUS improves memory stability by carefully routing traces and vias to preserve signal integrity between the CPU and RAM DIMMs. This reduces latency while improving memory frequency.

Comprehensive Cooling

Enlarged VRM, PHC, and M.2 heatsinks all dissipate heat efficiently, ensuring your components are safe from harm caused by prolonged system usage, especially under heavy loads. Hybrid fan headers and Fan Xpert work together to ensure optimal system and CPU fan operation.

ASUS Aura

Show your rig in an array of colors and effects with internal RGB headers. With ASUS Armoury Crate, you can change various aspects of your build while also unifying colors across various external peripherals for a unique style that stands out.

UEFI BIOS

Easily configure and fine-tune your system with a robust UEFI BIOS, giving you a wide range of comprehensive features for newcomers and seasoned builders. EZ Mode displays vital settings and offers guided wizards to get your rig running in no time. Advanced mode grants you deeper access to system functionality, allowing you to adjust performance just the way you want.

ASUS 5X Protection III

Whether you are new to building or a seasoned enthusiast, the PRIME B560-PLUS is equipped with various system and hardware improvements designed to protect your components. DIGI+ VRM heatsink protection and stainless-steel back I/O keeps your back ports safe and protected from heat and corrosion. LANGuard uses advanced signal-coupling technology to maintain network signal. Overvoltage Protection protects the motherboard from damage caused by unexpected high-level voltages from unstable power supplies. SafeSlot Core+ enhances PCIe slots with 1.6X stronger retention force suitable for heavyweight graphics cards.
