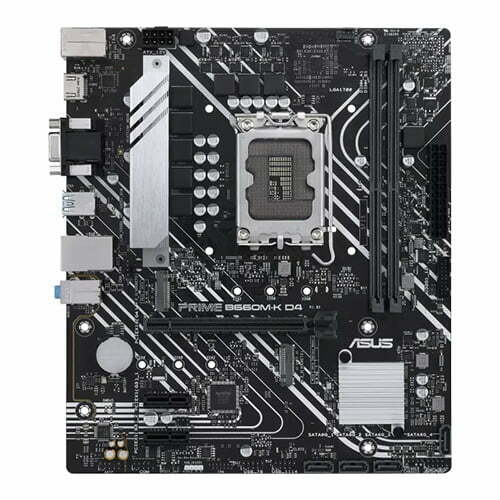

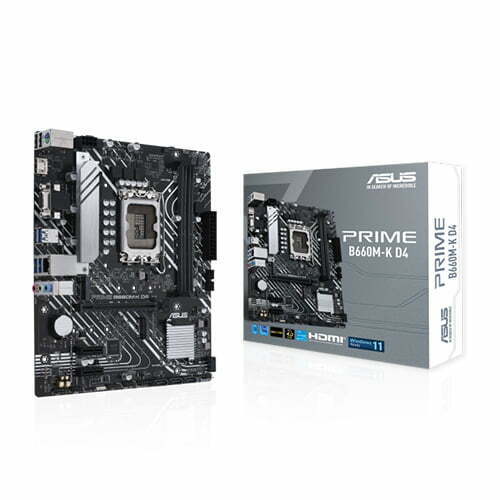

Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard

Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard
Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard
Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard
-3 %
Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard
Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard
Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard
Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard

TBA

  • Stock: Out Of Stock
  • Brand: Asus
  • Model: Model

Key Features

    • Intel LGA 1700 socket
    • Enhanced power solution
    • Comprehensive cooling
    • Ultrafast connectivity
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX 24.4cm x 21.1cm
Graphics Specifications
Graphics 1 x D-Sub port 1 x HDMI® port
Generel information
CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Ethernet 1 x Realtek 1Gb Ethernet
Expansion Slots Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots
Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Memory 2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Operating System Windows® 11 64-bit, Windows® 10 64-bit
Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel®B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports

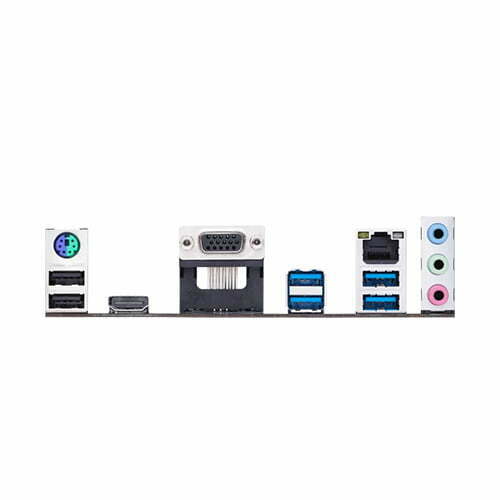

USB 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Asus PRIME B660M-K D4 DDR4 12th Gen Intel Motherboard

Asus PRIME B660M-K D4 DDR4 12th Gen Intel Motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Port configuration settings between different BIOS versions or share them with friends. Prime B660 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. Prime B660 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS B660 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.  A VRM with 6+1+1 Power Stages delivers the power and efficiency that the latest Intel processors demand. Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. Prime B660M-K D4 offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives. Prime B660M-K D4 is designed specifically for 12th Generation Intel® CoreTM CPUs and offer PCIe® 4.0 connectivity. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

Quick Compare

Product Details
Product Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard Gigabyte B760M H DDR4 13th and 12th Gen Intel Motherboard ASUS PRIME H610M-A WIFI D4 12th Gen Intel mATX Motherboard
Image Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard Gigabyte B760M H DDR4 13th and 12th Gen Intel Motherboard ASUS PRIME H610M-A WIFI D4 12th Gen Intel mATX Motherboard
Price 14,800৳ 14,400৳ 16,500৳ 14,500৳ 15,500৳ 14,700৳ 14,500৳ 14,000৳
Model Model MAG-B560M B760M H DDR4 Model
Brand Asus MSI Gigabyte Asus
Availability Out Of Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 2 reviews.

Based on 1 reviews.

Based on 0 reviews.
Summary Asus PRIME B660M-K D4 DDR4 12th Gen Intel Motherboard Asus PRIME B660M-K D4 DDR4 12th Gen Intel Motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. Port configuration settings between different BIOS versions or share them with friends. Prime B660 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. Prime B660 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS B660 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.  A VRM with 6+1+1 Power Stages delivers the power and efficiency that the latest Intel processors demand. Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. Prime B660M-K D4 offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives. Prime B660M-K D4 is designed specifically for 12th Generation Intel® CoreTM CPUs and offer PCIe® 4.0 connectivity. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly... MSI MAG B560M BAZOOKA Motherboard MSI MAG B560M BAZOOKA Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 5066(OC) MHz. Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. It comes with Premium Thermal Solution. Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works. It features 2.5G LAN with LAN Manager. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. The motherboard is powered by a USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C. It has Audio Boost, Reward your ears with studio-grade sound quality. It is supported with Multi-GPU. With Steel armor PCIe slots. Supports 2-Way AMD Crossfire... Gigabyte B760M H DDR4 13th and 12th Gen Intel MotherboardThe Gigabyte B760M H DDR4 13th and 12th Gen Intel Motherboard is a high-performance motherboard designed for LGA1700 socket, offering support for the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors. With its Micro ATX form factor, it provides a compact yet powerful solution for various computing needs.One notable feature of this motherboard is its reliable and efficient BIOS. It comes with a 128 Mbit flash BIOS, utilizing licensed AMI UEFI BIOS technology. It supports various industry standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, ensuring compatibility and ease of use.The Intel B760 Express Chipset forms the backbone of this motherboard, providing stable and efficient performance. It offers a range of connectivity options, including 2 USB 2.0/1.1 ports, 1 D-Sub port, 1 HDMI port, 4 USB 3.2 Gen 1 ports, 1 RJ-45 port, and 3 audio jacks. The motherboard also features Realtek Audio CODEC with High Definition Audio support, allowing for immersive sound experiences and flexible audio configurations.In terms of expansion slots, the Gigabyte B760M H DDR4 motherboard offers a PCI Express x16 slot supporting PCIe 4.0, and a PCI Express x1 slot supporting PCIe 3.0. This enables users to enhance their system's capabilities by adding dedicated graphics cards, sound cards, or other expansion cards.The motherboard incorporates comprehensive hardware monitoring features, including voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, and fan fail warning. Users can also control fan speeds for optimal cooling performance.For internal connectivity, the motherboard provides a range of connectors, such as ATX power connectors, CPU and system fan headers, M.2 Socket 3 connectors, SATA 6Gb/s connectors, USB headers, front panel headers, and more. These connectors offer flexibility and support for various peripherals and storage devices.The Gigabyte B760M H DDR4 motherboard supports DDR4 memory modules with speeds up to 3200 MHz, allowing for efficient multitasking and smoother system operation. It features dual-channel memory architecture and can support up to 64GB of system memory, depending on the configuration.With integrated Intel HD Graphics support, including a D-Sub port and an HDMI port, the motherboard enables seamless visuals and supports high resolutions up to 4096x2160@60Hz. It also supports the latest HDMI 2.0 version and HDCP 2.3 for enhanced video playback and content protection.This motherboard is compatible with both Windows 10 and Windows 11 64-bit operating systems, offering a modern and optimized computing experience.FeaturesCompatibility and Performance: The motherboard supports the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors, offering powerful performance for various computing tasks.Compact Form Factor: Designed in a Micro ATX form factor measuring 23.0cm x 21.5cm, it provides a compact and space-efficient solution for different system builds.Reliable BIOS: Equipped with a 128 Mbit flash BIOS and licensed AMI UEFI BIOS, it ensures stable system operation. It supports industry standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.Audio Enhancement: Features a Realtek Audio CODEC that supports High Definition Audio with 2/4/5.1/7.1-channel configurations. It also includes support for S/PDIF Out, allowing for high-quality audio output.Expansion Slots: Offers a PCI Express x16 slot (running at x16) for PCIe 4.0 support and a PCI Express x1 slot (running at x1) for PCIe 3.0 support. These slots enable the addition of dedicated graphics cards, sound cards, or other expansion cards.H/W Monitoring: Provides comprehensive hardware monitoring capabilities, including voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, and fan speed control.Connectivity Options: The motherboard includes various back panel connectors such as USB 2.0/1.1 ports, D-Sub and HDMI ports, USB 3.2 Gen 1 ports, RJ-45 port, and audio jacks. These connectors offer versatile connectivity options for peripherals and devices.Memory Support: Supports DDR4 memory modules with speeds up to 3200 MHz, offering efficient multitasking and system responsiveness. It features dual-channel memory architecture and can support up to 64GB of system memory.Storage Interface: Features M.2 connectors (M2A_CPU and M2P_SB) supporting PCIe 4.0 x4/x2 SSDs, providing fast storage options. It also includes four SATA 6Gb/s connectors and supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.Onboard Graphics: Integrated Intel HD Graphics support with a D-Sub port (max resolution 1920x1200@60 Hz) and an HDMI port (max resolution 4096x2160@60 Hz). It supports HDMI 2.0 version and HDCP 2.3, ensuring high-quality video playback.Operating System Support: Compatible with Windows 10 64-bit and Windows 11 64-bit, offering seamless integration with modern operating systems.USB Connectivity: Provides multiple USB ports, including six USB 3.2 Gen 1 ports (four on the back panel, two available through the internal USB header) and six USB 2.0/1.1 ports (two on the back panel, four available through internal USB headers). This allows for easy connection of USB devices and peripherals.Overall, the Gigabyte B760M H DDR4 13th and 12th Gen Intel Motherboard combines powerful performance, reliable features, and a compact form factor, making it an excellent choice for users seeking a versatile and efficient motherboard for their Intel-based systems... ASUS PRIME H610M-A WIFI D4 12th Gen Motherboard ASUS PRIME H610M-A WIFI D4 12th Gen Motherboard offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives. Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware...

Write a review

Note: HTML is not translated!
Bad Good

What is the Asus PRIME B660M-K D4 DDR4 12th Gen Intel LGA1700 Socket Motherboard price in bd 2024?

The Asus Model PC Components price in BD is not available at this moment. We will update the price soon. The Asus Model PC Components is Out Of Stock now in our store (Call us to know about details of this product). 15 customer buy this product From 3138 visitors. You can chose also MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard price in bd is 14,500৳, Gigabyte B760M H DDR4 13th and 12th Gen Intel Motherboard price in bd is 14,700৳, ASUS PRIME H610M-A WIFI D4 12th Gen Intel mATX Motherboard price in bd is 14,000৳, They are almost similler with Asus Model. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Asus Model online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
