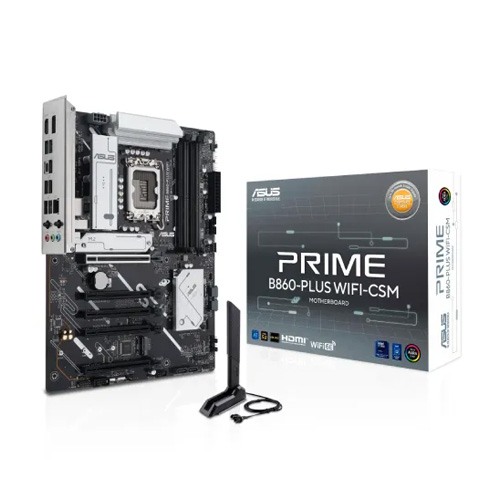

Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard

Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
-9 %
Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
Special Price: 28,700৳
Regular Price: 31,500৳
28,700৳
31,500৳
Ex Tax: 28,700৳
EMI starts at 10,064৳/month. View all 27 banks EMI plans >
  • Stock: In Stock
  • Brand: Asus
  • Model: PRIME B860-PLUS WIFI-CSM

Key Features

    • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
    • Supported RAM: 4x DDR5, Max 256GB, 8666+ MT/s (OC)
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: 2x M.2, Realtek 2.5Gb LAN, Wi-Fi 6E, Bluetooth 5.3
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Audio 3 x Audio jacks
Display Port (s) 1x DisplayPort
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Graphics 1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types
M.2 Socket 2 x M.2
PCI Intel Core Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (PCIEX16(G5))
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)
RAID SATA RAID 0/1/5/10
Slots 4
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Wireless Communication module Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
Main Features
BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Chipset INTEL B860
Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Memory Specifications
Maximum Memory Maximum Memory Capacity 256GB
Supported Memory 4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Connector & ports
HDMI 1x HDMI 2.1
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion headerv 1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
USB (s) Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps port (1 x USB Type-C)
1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Warranty Information
Warrantty 3 Year warranty

Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard

Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard is an advanced, high-performance motherboard designed to support the latest Intel Core Ultra Processors (Series 2) with the LGA 1851 socket. Powered by the Intel B860 chipset, this motherboard offers a robust platform for building cutting-edge systems, whether for gaming, content creation, or general computing needs. Equipped with four DDR5 DIMM slots, it supports up to 256GB of memory, with speeds of up to 8666+MT/s (OC), ensuring a smooth and responsive experience. The motherboard utilizes dual-channel memory architecture and supports Intel® Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III) for maximum performance. The Asus PRIME B860-PLUS features a wealth of expansion options, including PCIe 5.0 and PCIe 4.0 slots for high-speed graphics and additional expansion cards. It also supports M.2 slots for fast SSD storage, delivering top-tier storage speeds for quick file access. With support for both Wi-Fi 6E and Bluetooth v5.3, you can enjoy stable and fast wireless connections on 2.4/5/6GHz frequency bands. This motherboard also ensures superior audio performance with Realtek 7.1 Surround Sound High Definition Audio, providing an immersive sound experience. Multiple USB ports, including USB 20Gbps and USB Type-C, allow for efficient data transfer and peripheral connectivity. Additionally, Asus has equipped the B860-PLUS with 5X Protection III for enhanced durability, along with Aura Sync for customizable RGB lighting. For cooling, the motherboard includes an M.2 heatsink and VRM heatsink design to maintain optimal temperatures under load With a 3-year warranty, the Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard offers both performance and reliability, making it an excellent choice for building a powerful and future-proof PC.
