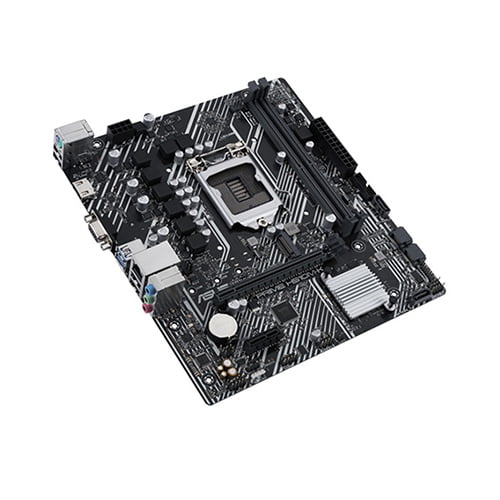

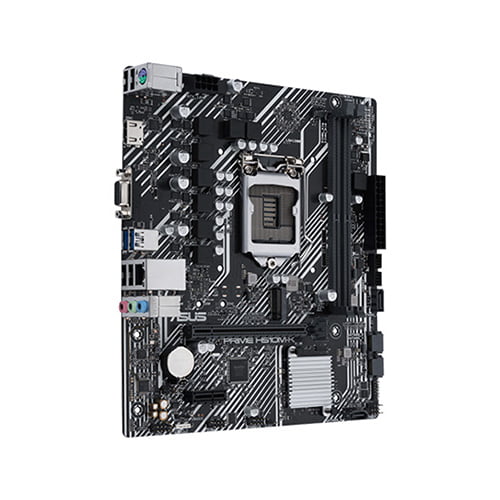

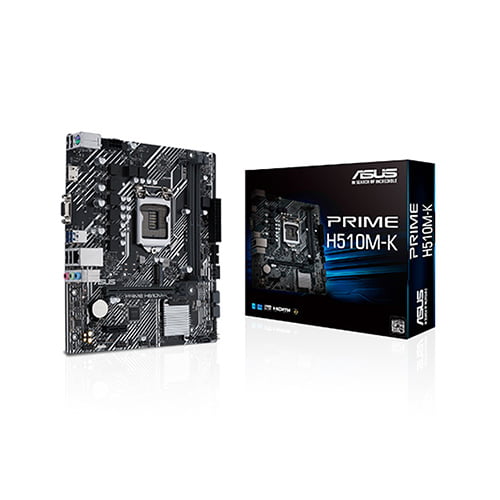

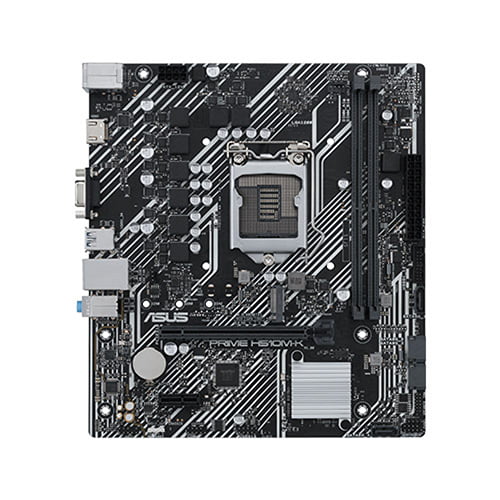

ASUS PRIME H510M-K MICRO ATX MOTHERBOARD

Product ID: H510M-K
Customer rating: No reviews yet
Availability: In stock
Questions: 0 answered

1 / 5

All prices include VAT. 0% EMI from ৳917/mo on 29 banks.

Save ৳500 -4%৳11,000~~Was ৳11,500~~

Key features

Full specs

FeatureIntel H510 Chipset
ConnectivityRear 6 USB ports
Feature128 Mb Flash ROM
PlatformmATX Form Factor

0% EMI on credit cards of 29 banks — ৳917/mo for 12 months.
Online price saves you ৳500 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandAsus330 productsBrowse all →

Specifications

Key Specifications

Processor Type	Intel
Socket	LGA1200
Chipset	Intel H510

Form Factor	Micro ATX
RAM Type	DDR4
Features	M.2, RGB

Processor

Supported CPU	Intel Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron Processors* Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Memory

DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Expansion & Storage

Expansion Slots	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 -Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot

Storage	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H510 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports

Graphics & Display

Onboard Graphics	1 x D-Sub 1 x HDMI 1.4 / 2.0

Display Outputs	HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max.

Networking

LAN	1 x Intel® I219-V 1Gb Ethernet ASUS LANGuard

Audio

Audio	Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback"

Ports & Connectors

USB	Rear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports

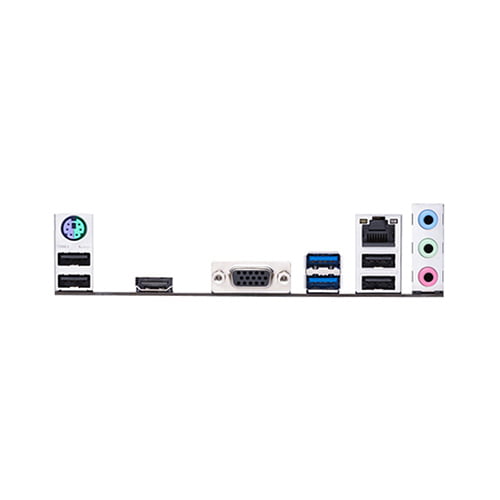

Rear Panel I/O	2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Intel I219-V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal Connectors	2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI™ port 1 x Intel I219-V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Other Features

BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header

Dimensions	10.79 x 10.31 x 2.05 inches

Warranty

Warranty	3 Years

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

ASUS PRIME H510M-K MOTHERBOARD Overview

ASUS PRIME H510M-K MOTHERBOARD are expertly engineered to unleash the full potential of 11th and 10th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-K provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. Cool to the Core Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads Cooler by Design Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. Build on a Solid Foundation Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. M.2 (up to 32 Gbps) M.2 slot supports data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives. Small Details Make a Big Difference Prime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced. [ninja_tables id="47355"]

Buy ASUS PRIME H510M-K MICRO ATX MOTHERBOARD from Ultra Technology

Get the ASUS PRIME H510M-K MICRO ATX MOTHERBOARD from Ultra Technology for ৳11,000 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from Asus, explore more Asus Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
