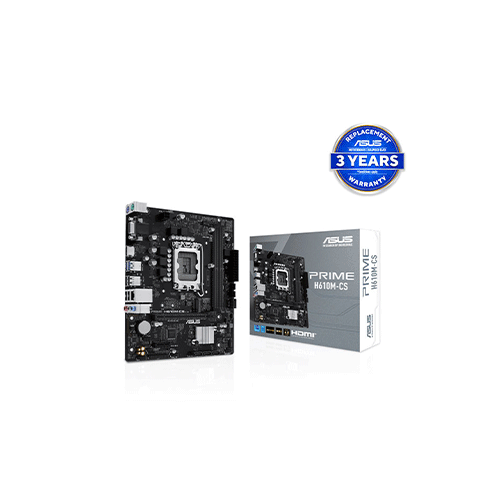

ASUS PRIME H610M-CS LGA1700 micro-ATX Motherboard

ASUS PRIME H610M-CS LGA1700 micro-ATX Motherboard
-18 %
ASUS PRIME H610M-CS LGA1700 micro-ATX Motherboard
11,100৳
13,500৳
Ex Tax: 11,100৳
EMI starts at 3,892৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: Asus
  • Model: PRIME H610M-CS

Key Features

  • Chipset: Intel H610 Chipset for 13th Gen & 12th Gen
  • Socket: Intel Socket LGA1700
  • Storage Supports: 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Memory: 2 x DIMM, Max. 96GB, DDR5
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Chipset Intel H610 Chipset
Form Factor mATX Form Factor
8.9 inch x 7.7 inch (22.6 cm x 19.5 cm)
General Information
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Documentation
1 x User guide
Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x VGA port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
CPU Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports up to Intel 65W CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Ethernet 1 x Realtek 1Gb Ethernet
Expansion Slots Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset

1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Graphic 1 x VGA port
1 x HDMI port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
Manageability WOL by PME, PXE
Memory 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Operating System Windows 11, Windows 10 64-bit
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
EPU
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design
USBGuard
Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
USB Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Connector & ports
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports an additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Warranty Information
Warranty 3 Years Replacement Warranty
*(Terms and Conditions Applied)

ASUS PRIME H610M-CS LGA1700 micro-ATX Motherboard

The ASUS PRIME H610M-CS LGA1700 is a feature-rich micro-ATX motherboard designed to support 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors. Built on the Intel H610 chipset, this motherboard offers solid performance and reliability, making it ideal for both home and office use. It supports up to 96GB of DDR5 memory with speeds up to 5600MHz, ensuring high-speed data processing and multitasking capabilities. The dual-channel memory architecture and Intel XMP support further enhance memory performance. For graphics, the motherboard provides both VGA and HDMI ports, with the HDMI port supporting 4K resolution at 60Hz, offering crystal-clear visuals for modern displays. The expansion slots include a PCIe 4.0 x16 slot for high-speed graphics cards and a PCIe 3.0 x1 slot for additional peripherals. Storage options are versatile, with one M.2 slot supporting PCIe 3.0 x4 mode and four SATA 6Gb/s ports, allowing for fast data transfer rates and ample storage solutions. The Realtek 1Gb Ethernet ensures reliable network connectivity, while the Realtek 7.1 Surround Sound Audio CODEC delivers high-definition audio for an immersive multimedia experience. ASUS PRIME H610M-CS also features several ASUS-exclusive technologies like 5X Protection III, ensuring long-term durability and stability with protections such as overvoltage protection, SafeSlot Core, and stainless-steel back I/O. Additionally, it offers a range of connectivity options, including USB 3.2 Gen 1 and USB 2.0 ports, both on the front and rear panels. The motherboard includes comprehensive software, such as Armoury Crate and AI Suite 3, which help manage system performance and keep everything running smoothly. With a compact form factor and a 3-year warranty, this motherboard offers great value for users looking to build a reliable and efficient PC.

Quick Compare

Product Details
Product ASUS PRIME H610M-CS LGA1700 micro-ATX Motherboard MSI PRO H610M-G DDR5 mATX Motherboard GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD
Image ASUS PRIME H610M-CS LGA1700 micro-ATX Motherboard MSI PRO H610M-G DDR5 mATX Motherboard GIGABYTE H610M S2H DDR4 12TH GEN MICRO ATX MOTHERBOARD
Price 13,500৳ 11,100৳ 13,500৳ 11,000৳ 14,000৳ 11,000৳
Model PRIME H610M-CS PRO H610M-G H610M-S2H
Brand Asus MSI Gigabyte
Availability In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 1 reviews.

Based on 0 reviews.
Summary ASUS PRIME H610M-CS LGA1700 micro-ATX MotherboardThe ASUS PRIME H610M-CS LGA1700 is a feature-rich micro-ATX motherboard designed to support 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors. Built on the Intel H610 chipset, this motherboard offers solid performance and reliability, making it ideal for both home and office use. It supports up to 96GB of DDR5 memory with speeds up to 5600MHz, ensuring high-speed data processing and multitasking capabilities. The dual-channel memory architecture and Intel XMP support further enhance memory performance. For graphics, the motherboard provides both VGA and HDMI ports, with the HDMI port supporting 4K resolution at 60Hz, offering crystal-clear visuals for modern displays. The expansion slots include a PCIe 4.0 x16 slot for high-speed graphics cards and a PCIe 3.0 x1 slot for additional peripherals. Storage options are versatile, with one M.2 slot supporting PCIe 3.0 x4 mode and four SATA 6Gb/s ports, allowing for fast data transfer rates and ample storage solutions. The Realtek 1Gb Ethernet ensures reliable network connectivity, while the Realtek 7.1 Surround Sound Audio CODEC delivers high-definition audio for an immersive multimedia experience. ASUS PRIME H610M-CS also features several ASUS-exclusive technologies like 5X Protection III, ensuring long-term durability and stability with protections such as overvoltage protection, SafeSlot Core, and stainless-steel back I/O. Additionally, it offers a range of connectivity options, including USB 3.2 Gen 1 and USB 2.0 ports, both on the front and rear panels. The motherboard includes comprehensive software, such as Armoury Crate and AI Suite 3, which help manage system performance and keep everything running smoothly. With a compact form factor and a 3-year warranty, this motherboard offers great value for users looking to build a reliable and efficient PC... MSI PRO H610M-G DDR5 mATX MotherboardMSI PRO H610M-G DDR5 mATX Motherboard is a powerful and reliable motherboard designed to meet the demands of modern computing. Featuring the latest DDR5 memory technology, this motherboard provides enhanced speed and efficiency for seamless multitasking and rapid data transfer. The Micro ATX form factor ensures compatibility with a wide range of computer cases while offering a compact design for space-conscious builds. Equipped with Intel's H610 chipset, the motherboard supports 10th and 11th Gen Intel Core processors, delivering impressive performance for gaming, content creation, and everyday computing tasks. The motherboard boasts a robust power delivery system, ensuring stable power to the CPU for optimal performance and longevity. Additionally, it includes PCIe 4.0 support for high-speed data transfer and expansion capabilities. The PRO H610M-G features a comprehensive set of connectivity options, including USB 3.2 Gen 1 ports, HDMI, and a range of audio connectors for an immersive audio experience. The motherboard also incorporates MSI's advanced cooling solutions to keep temperatures in check during intense computing sessions. With a user-friendly BIOS interface and durable build quality, the MSI PRO H610M-G DDR5 mATX Motherboard is an excellent choice for users seeking a reliable foundation for their desktop systems.MSI PRO H610M-G Motherboard Price in BDDiscover the ultimate cost-effective solutions for your office needs with the best price list in Bangladesh. Our curated selection of office essentials ensures that you can equip your workspace with top-quality products without breaking the bank. From ergonomic office furniture to productivity-boosting accessories, our budget-friendly offerings cater to small startups and established enterprises alike. Enhance efficiency and foster a conducive work environment while adhering to your budget constraints with our comprehensive array of competitively priced office supplies.FeaturesDDR5 Memory Support: The MSI PRO H610M-G motherboard is equipped with DDR5 memory support, harnessing the latest in memory technology for improved speed and efficiency in data processing.Intel H610 Chipset Compatibility: Designed to support 10th and 11th Gen Intel Core processors, the motherboard features the Intel H610 chipset, ensuring compatibility with a wide range of CPUs for diverse computing needs.Micro ATX Form Factor: With a Micro ATX form factor, this motherboard is suitable for compact builds, offering versatility and compatibility with smaller computer cases while providing essential features for a powerful computing experience.PCIe 4.0 Support: The motherboard incorporates PCIe 4.0 support, allowing for high-speed data transfer and accommodating the latest PCIe 4.0-enabled components for enhanced system performance.Comprehensive Connectivity: Boasting USB 3.2 Gen 1 ports, HDMI output, and various audio connectors, the PRO H610M-G provides a wide array of connectivity options, facilitating seamless integration with peripherals, displays, and audio devices.Robust Power Delivery System: The motherboard features a robust power delivery system to ensure stable and reliable power supply to the CPU, contributing to optimal performance and longevity of the system.Advanced Cooling Solutions: MSI has integrated advanced cooling solutions into the motherboard to manage temperatures effectively, providing enhanced thermal performance during demanding computing tasks and prolonged usage.User-Friendly BIOS Interface: The motherboard comes with a user-friendly BIOS interface, making it easy for users to customize settings and optimize performance according to their preferences.Durable Build Quality: Built with durability in mind, the MSI PRO H610M-G motherboard offers a reliable foundation for desktop systems, providing a sturdy and long-lasting platform for computing needs.PCIe Expansion Slots: The motherboard includes PCIe expansion slots, allowing users to customize their systems with additional components such as graphics cards, storage, and networking cards for enhanced functionality... GIGABYTE H610M S2H DDR4 MOTHERBOARD GIGABYTE H610M S2H DDR4 MOTHERBOARD with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Realtek Gaming LAN, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 6. The maximum memory capacity on the H610 motherboard is 64 GB. The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, the total memory capacity is 64GB, which was only available on High-End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive applications such as rendering and video editing. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers versions.GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. [ninja_tables id="47232"]..
