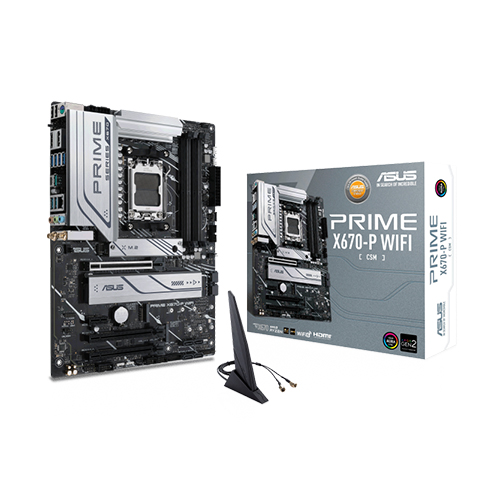

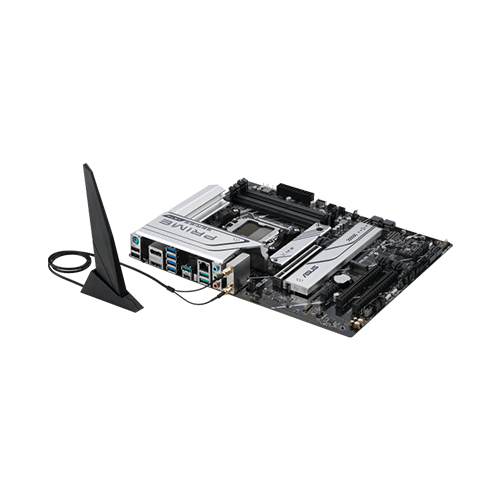

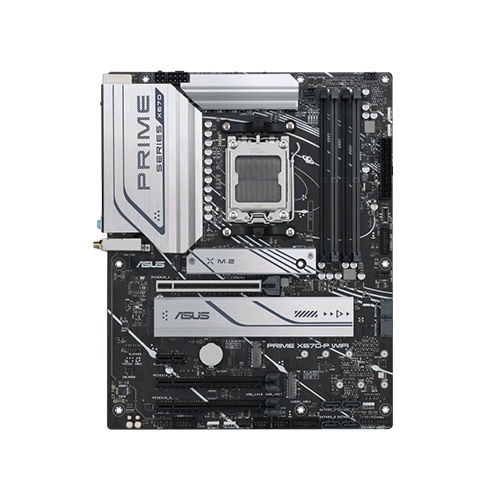

ASUS PRIME X670-P WIFI-CSM AMD ATX Motherboard
Discontinued
- Stock: Discontinued
- Brand: Asus
- Model: PRIME X670-P WIFI-CSM
Discontinued
Key Features
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- AMD X670 Chipset
- Form Factor: ATX Form Factor
- 1 x Realtek 2.5Gb Ethernet
| General Information | |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Audio Feature | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD X670 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot** |
| Graphic | 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt™ (USB4®) header |
| Manageability | WOL by PME, PXE |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II |
| Operating Systems | Windows® 11, Windows® 10 64-bit |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
| Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports** * AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. |
| USB | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Main Features | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD X670 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
ASUS PRIME X670-P WIFI-CSM AMD ATX Motherboard
The ASUS PRIME X670-P WIFI-CSM AMD ATX Motherboard is a high-performance motherboard designed for AMD Ryzen™ 7000 Series Desktop Processors. It features a robust set of features and components that cater to the needs of gamers, content creators, and PC enthusiasts.
With a 256 Mb Flash ROM and UEFI AMI BIOS, this motherboard offers a reliable and user-friendly interface for system configuration and customization. The AMD X670 chipset provides excellent performance and supports the latest technologies.
The motherboard comes in the ATX form factor, measuring 12 inches by 9.6 inches (30.5 cm x 24.4 cm), ensuring compatibility with a wide range of PC cases. It includes several accessories such as SATA cables, ASUS Wi-Fi moving antennas, an I/O shield, and screw packages for M.2 SSDs, among others.
The audio capabilities of the ASUS PRIME X670-P are impressive, featuring a Realtek 7.1 Surround Sound High Definition Audio CODEC. It supports jack-detection, multi-streaming, and front panel jack-retasking. The motherboard also includes audio shielding, premium audio capacitors, and dedicated audio PCB layers for superior audio quality.
For connectivity, the back panel I/O ports offer a comprehensive range of options, including USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, DisplayPort, HDMI, Wi-Fi, Ethernet, and audio jacks. The motherboard supports up to three M.2 slots and six SATA 6Gb/s ports for ample storage possibilities.
The ASUS PRIME X670-P provides extensive internal I/O connectors for fans and cooling, power, storage, USB, RGB lighting, and more. It supports up to 128GB of DDR5 memory and features ASUS Exclusive Software such as Armoury Crate, AI Suite 3, and ASUS CPU-Z for efficient system management and customization.
With ASUS 5X PROTECTION III, the motherboard ensures reliable performance and protection with features like DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, Safeslot Core+, and Stainless-Steel Back I/O. It also incorporates ASUS Thermal Solution, including M.2 heatsinks and a VRM heatsink design, to keep the system cool during demanding tasks.
The ASUS PRIME X670-P WIFI-CSM AMD ATX Motherboard offers a powerful and feature-rich platform for building high-performance PCs. Whether you're a gamer, content creator, or power user, this motherboard provides the necessary performance, connectivity, and customization options to meet your needs.
Features
- AMD X670 Chipset: The motherboard is built around the AMD X670 chipset, providing excellent compatibility and performance for the latest AMD Ryzen processors.
- ATX Form Factor: The motherboard follows the ATX form factor, which ensures compatibility with a wide range of computer cases and components.
- Comprehensive Accessories: The motherboard comes with various accessories including SATA cables, ASUS Wi-Fi moving antennas, I/O Shield, Rubber Package for M.2, Screw Packages for M.2 SSDs, and documentation such as an ACC Express Activation Key Card and User guide.
- High Definition Audio: The motherboard features a Realtek 7.1 Surround Sound High Definition Audio CODEC, offering immersive audio experiences. It supports up to 24-Bit/192 kHz playback and includes audio shielding, premium audio capacitors, and dedicated audio PCB layers for enhanced audio quality.
- Extensive I/O Ports: The back panel of the motherboard includes a range of I/O ports, such as USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, DisplayPort, HDMI, Wi-Fi Module, Realtek 2.5Gb Ethernet port, Audio jacks, BIOS FlashBack™ button, and PS/2 Keyboard/Mouse combo port.
- Expansion Slots: The motherboard offers multiple expansion slots, including one PCIe 4.0 x16 slot (supports x16 mode) for AMD Ryzen 7000 Series Desktop Processors, two PCIe 4.0 x16 slots (support x4 mode) from the AMD X670 chipset, and one PCIe 3.0 x1 slot. These slots provide flexibility for adding graphics cards, sound cards, and other expansion cards.
- Wireless Connectivity: The motherboard includes Wi-Fi 6 (802.11 a/b/g/n/ac/ax) for high-speed wireless networking and Bluetooth v5.2 for seamless connectivity with other Bluetooth-enabled devices.
