Main Features | |
Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features: - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio Shielding - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
Graphics Specifications | |
Graphics | 1 x DisplayPort 1.4 1 x HDMITM 2.0 |
Connector & ports | |
HDMI | 1 x HDMITM 2.0 |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 4-pin VRM_HS Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x CPU Over Voltage jumper 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
LAN Port (s) | 1 x Intel I225-V 2.5Gb Ethernet |
Supported Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports |

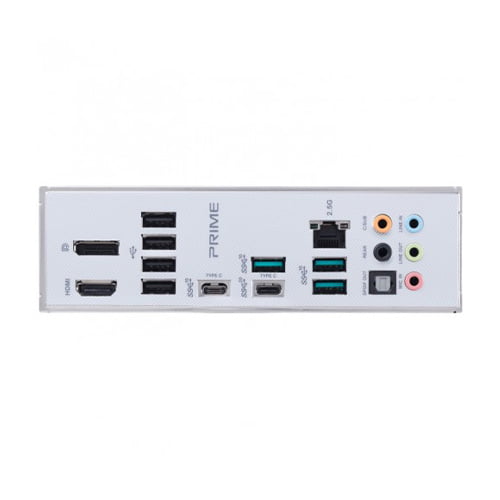

USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Generel information | |
Basic Information | Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Chipset: Intel Z590 Chipset BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Display Port (s) | 1 x DisplayPort 1.4 |
M.2 Socket | M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/ 2260/ 22110 (supports PCIe 3.0 x4 & SATA modes) |
Memory | Type: DDR4 Slots: 4 x DIMM Supported Memory: 5333(OC) /5133(OC) /5000(OC) /4800(OC) /4700(OC) /4600(OC) /4500(OC) /4400(OC) /4266(OC) /4133(OC) /4000(OC) /3866(OC) /3733(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3200 /3000 /2933 /2800 /2666 /2400 /2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II Maximum Memory: 128GB |
Others | Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS Stainless-Steel Back I/O ASUS Q-Design : - M.2 Q-Latch - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green]) - ASUS Q-Slot ASUS Thermal Solution: - Aluminum M.2 Heatsink - Flexible M.2 heatsink ASUS EZ DIY: - Protocol - Pre-mounted I/O shield - ASUS SafeSlot ASUS Exclusive Software: Armoury Crate: - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-way Optimization with AI Overclocking TPU EPU Digi+ VRM Fan Xpert 4 Turbo app - EZ update AI Charger ASUS CPU-Z ASUS Turbo LAN MyAsus DTS: X® Ultra UEFI BIOS: AI Overclocking Guide ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - EZ Tuning Wizard FlexKey |
PCI | Intel 11th & 10th Gen Processors 3 x PCIe 4.0/3.0 x16 slots - Intel 11th Core processors support PCIe 4.0 x16 - Intel10th processors support PCIe 3.0 x16 Intel Z590 Chipset 1 x PCIe 3.0 x4 slot |
Warranty Information | |
Warranty | 3 Years |
