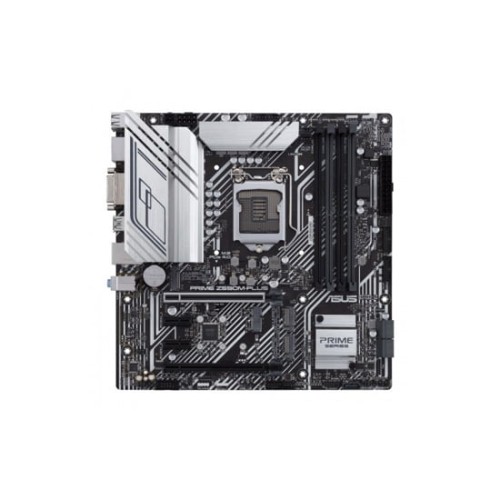

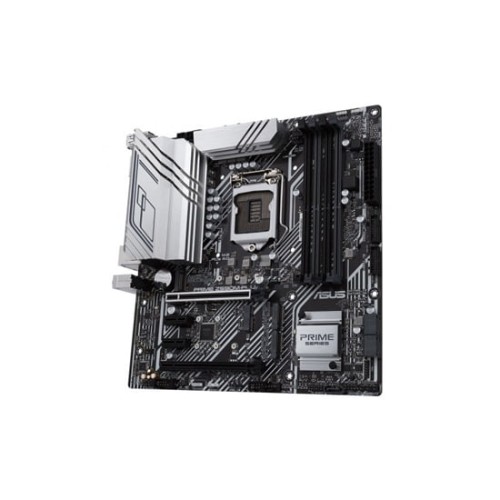

Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard

Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard
Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard
Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard
Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard
Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard
Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard
Asus Prime Z590M-PLUS Intel 10th and 11th Gen Micro ATX Motherboard
18,400৳
Ex Tax: 18,400৳
EMI starts at 6,452৳/month. View all 25 banks EMI plans >
  • Stock: In Stock
  • Brand: Asus
  • Model: Model

Key Features

    • Supports 10th and 11th Gen Intel Core Processors
    • Next-gen connectivity
    • Comprehensive cooling
    • Enhanced power solution
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/ 192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Chipset Intel Z590 Chipset
Form Factor mATX Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Graphics Specifications
Graphics 1 x DisplayPort 1.4 1 x DVI-D 1 x HDMI 1.4/ 2.0
Memory Specifications
Supported Memory 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively
Connector & ports
Internal I/O Ports Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 5 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
LAN Port (s) 1 x Intel I219-V 1Gb Ethernet
Supported Storage Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280
USB (s) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)
Generel information
Connector & Ports HDMI: 1 x HDMI 1.4/ 2.0 Display Port (s): 1 x DisplayPort 1.4 DVI-D (s): 1 x DVI-D
M.2 Socket Total supports 3 x M.2 slots and 5 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/ 2280 (supports PCIe 3.0 x4 mode)
Memory Type: DDR4 Slots: 4 x DIMM Maximum Memory: 128 GB
PCI Intel 11th & 10th Gen Processors 1 x PCIe 4.0/ 3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 or x8/ x8 or x8/ x4/ x4 mode - Intel10th Gen processors support PCIe 3.0 x16 or x8/ x8 or x8/ x4/ x4 mode Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
Special Features Wireless & Bluetooth: M.2 slot only
TPM (Trusted Platform Module ) 1 x SPI TPM header
Warranty Information
Warranty 3 Years

Asus Prime Z590M-PLUS Motherboard

Asus Prime Z590M-PLUS Motherboard is expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590M-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z590 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. The motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Asus Prime Z590M-PLUS 11th Gen Motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Stable power is essential to extract every last bit of performance out of 11th Generation Intel Core processors. Prime Z590M-PLUS is geared to cater to the demands of these high-core count CPUs. Proprietary connector augment the motherboard's link to the PSU with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector. Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Features:

  • Robust Power Design The Prime Z590-PLUS uses robust 10+1 DrMOS power stages to stabilize system efficiency. Equipped with an 8-pin ProCool connector, the board passes 12-volts of power directly to the CPU, ensuring electrical stability.
  • Onboard Audio Immerse yourself deep within your media and games with premium onboard audio. Constructed with premium Japanese capacitors, the Prime Z590-PLUS separates analog and digital signal domains to reduce multi-lateral interference and ensure minimal crosstalk between audio paths, providing a clear audio experience.
  • Personalization Designed with customization in mind, the already elegant Prime Z590-PLUS provides you with the ability to equip your rig with an array of RGB lighting and effects. The Addressable Gen 2 RGB headers and Armoury Crate illumination system can mix and match colors and effects to your personal taste, giving you a unique aesthetic that stands out. AURA Sync unites interior lighting and external devices such as mice and keyboards, taking your lighting game to the next level.
