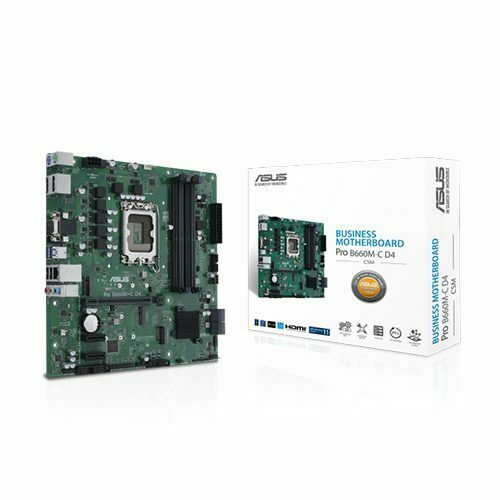

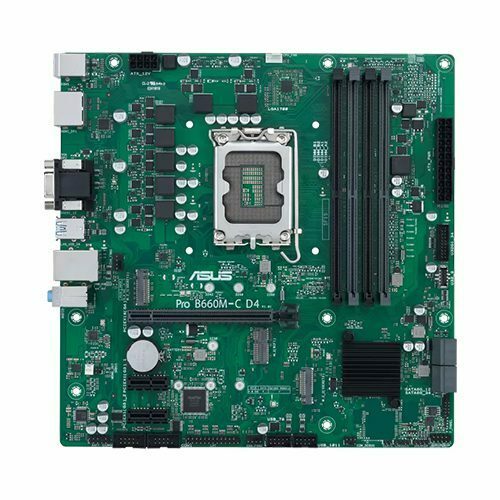

ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard

ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard
ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard
ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard
-8 %
ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard
ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard
ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard
ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard

TBA

  • Stock: Out Of Stock
  • Brand: Asus
  • Model: Model

Key Features

    • Model: Pro B660M-C D4-CSM
    • Intel B660 Chipset
    • Intel LGA 1700 socket
    • Consistent and reliable performance
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback "
BIOS 128Mb Flash ROM
Chipset Intel B660 Chipset
Graphics Specifications
Graphics 2 x DisplayPort 1 x D-Sub port 1 x HDMI® port
Generel information

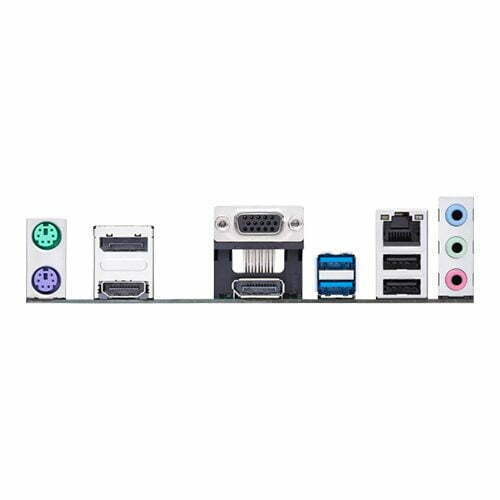

Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI® port 1 x D-Sub port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) por
CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard
Expansion Slots Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots
Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header
Memory 4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Optimem
Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports
USB Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)
Warranty Information
Warranty 3 Years Warranty

ASUS Pro B660M-C D4-CSM 12th Gen Intel Motherboard

  • Intel LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
  • ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
  • Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
