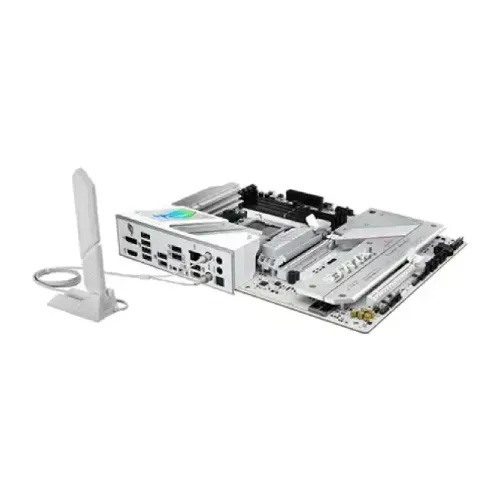

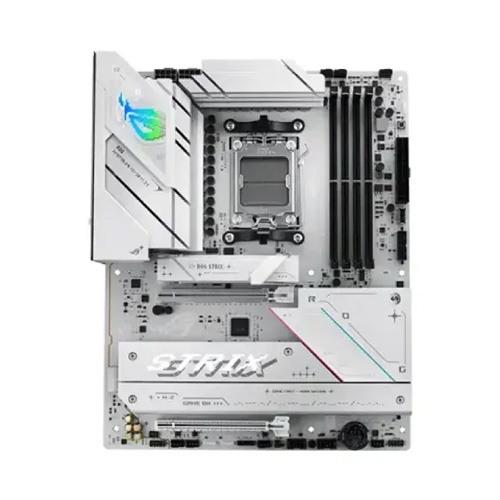

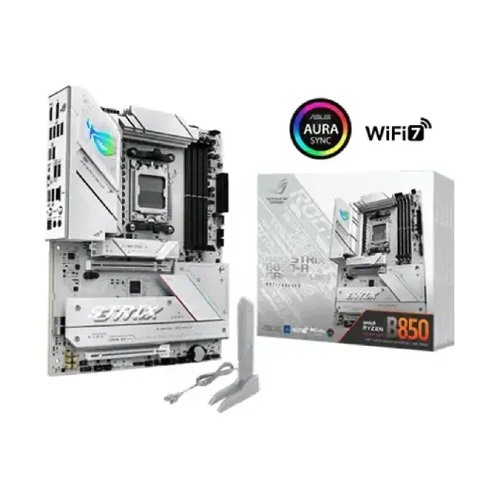

Asus ROG STRIX B850-A GAMING WIFI ATX Motherboard
- Stock: In Stock
- Brand: Asus
- Model: ROG STRIX B850-A GAMING WIFI
Key Features
- Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
- Supported RAM: 4x DDR5, up to 256GB, 8000+ MT/s (OC)
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
| General Information | |
| Type | DDR5 |
| Audio | 2 x Audio jacks |
| Display Port (s) | 1x DisplayPort 1.4 |
| Graphics | 1 x DisplayPort* 1 x HDMI™ port** - Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 ** Supports 4K@60Hz as specified in HDMI 2.1 *** VGA resolution support depends on processors' or graphic cards' resolution. |
| M.2 Socket | 4 x M.2 |
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)* AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** * Specifications vary by CPU types. ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3 |
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| Slots | 4 x DIMM |
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers |
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4 |
| Main Features | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD B850 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Memory Specifications | |
| Maximum Memory | 256GB |
| Supported Memory | max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
| Connector & ports | |
| HDMI | 1x HDMI 2.1 |

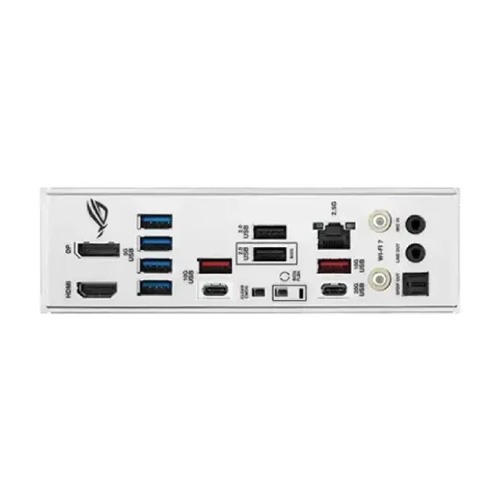

| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports MD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports * Specifications vary by CPU types. ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. |
| USB (s) | Rear USB (Total 10 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
| Warranty Information | |
| Warrantty | 3 Years Warranty |
Asus ROG STRIX B850-A GAMING WIFI ATX Motherboard
Asus ROG STRIX B850-A GAMING WIFI ATX Motherboard is a high-performance gaming motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors. Built with the AMD B850 chipset, it delivers powerful performance and advanced features for gamers and PC enthusiasts. This ATX motherboard supports DDR5 memory with speeds up to 8000+ MT/s (OC), ensuring blazing-fast performance for demanding applications. With four DIMM slots, it can handle up to 256GB of RAM, providing ample memory for multitasking and gaming. The ROG SupremeFX 7.1 Surround Sound powered by ALC4080 ensures immersive audio quality, enhancing your gaming and entertainment experience. For storage, the motherboard features four M.2 slots and two SATA 6Gb/s ports, offering ultra-fast data transfer speeds and flexible storage configurations. The PCIe expansion slots include one PCIe 5.0 x16 slot with Q-Release Slim for high-end graphics cards, ensuring optimal gaming performance. The connectivity on the ROG STRIX B850-A is top-notch, featuring Wi-Fi 7, Bluetooth 5.4, and Intel 2.5Gb Ethernet, providing seamless networking for online gaming and streaming. The rear I/O panel is loaded with 10 USB ports, including USB 20Gbps (Type-C), USB 10Gbps, and USB 5Gbps for high-speed data transfer and connectivity. Additional highlights include ASUS Q-Design, M.2 Q-Latch, PCIe SafeSlot, and Pre-mounted I/O Shield for easier installation and durability. The motherboard is also equipped with Aura Sync RGB lighting, allowing customizable aesthetics With 3 years of warranty, the Asus ROG STRIX B850-A GAMING WIFI ATX Motherboard is a premium choice for gamers and professionals looking for superior performance, connectivity, and reliability.
