ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
-11 %
ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
- Stock: In Stock
- Brand: Asus
- Model: ROG STRIX B860-F GAMING WIFI
Key Features
- Chipset: Intel B860 Chipset for Core Ultra Processors
- Socket: Intel Socket LGA1851
- Memory: 4 x DIMM slots, max. 256GB, DDR5
- Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
| Main Features | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | Intel B860 Chipset |
| Form Factor | Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| General Information | |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubbers Documentation 1 x Quick Start guide |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080: - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-bit/384 kHz playback on the front panel Audio Features: - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF outport - Premium audio capacitors- Audio cover |
| Bluetooth | v5.4 |
| Color | Black |
| CPU Socket | Intel Socket LGA1851 for Intel Core Ultra Processors(Series 2) Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Ethernet | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Graphics | 1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4. Supports 8K@60Hz with DSC as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, with maximum total bandwidth of up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. VGA resolution support depends on the processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card |

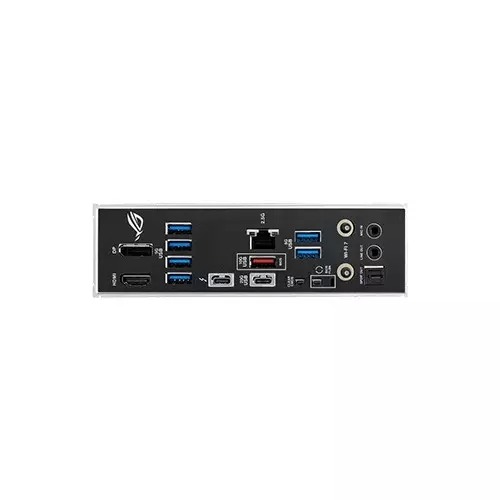

| I/O Port | Back Panel I/O Ports: 1 x Thunderbolt 4 (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button Internal I/O Connectors: Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
| Operating System Support | Windows 11 (22H2 & later) |
| Software Features | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving ASUS Driver Hub AIDA64 Extreme (60 days free trial) HWiNFO ASUS GlideX TurboV Core Adobe Creative Cloud (Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with an SSD device, PCIEX16(G4) will be disabled. Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Wi-Fi | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Warranty Information | |
| Warranty | 3 Years Replacement Warranty |
ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
ASUS ROG STRIX B860-F is designed for the latest Intel LGA1851 socket, supporting Intel Core Ultra Series 2 processors. With Intel B860 Chipset and technologies like Intel Turbo Boost 2.0 and Turbo Boost Max 3.0, it ensures high performance and efficiency for both gaming and productivity.
High-Speed Memory & Storage
This motherboard comes with 4 DIMM slots, supporting up to 256GB DDR5 memory with speeds up to 9066MT/s (OC). It includes support for Intel XMP profiles and ASUS Enhanced Memory Profile III (AEMP III) for fine-tuned performance. Storage options are equally robust, featuring 4 M.2 slots (PCIe 5.0 & PCIe 4.0) and 4 SATA 6Gb/s ports, with RAID 0/1/5/10 support.
Graphics & Expansion
With DisplayPort, HDMI, and Thunderbolt 4 outputs, it supports resolutions up to 8K@60Hz with DSC. Expansion includes PCIe 5.0 x16 for powerful GPUs and an additional PCIe 4.0 x16 slot (x4 mode), ensuring future-proof gaming and content creation capability.
Networking & Connectivity
Gamers get ultra-fast connectivity with Wi-Fi 7 (802.11be), 2x2 antennas, and 2.5Gb Intel Ethernet. It also includes Bluetooth v5.4, making it perfect for both wired and wireless setups.
SupremeFX Audio
The ROG SupremeFX ALC4080 codec delivers 7.1-channel surround sound with premium capacitors, Savitech amplifier, and optical S/PDIF out, ensuring immersive audio for gaming and media.
DIY-Friendly Design & Features
ASUS equips this board with Q-Design features such as M.2 Q-Latch, PCIe Q-Release Slim, and pre-mounted I/O shield for easy installation. Enhanced cooling includes M.2 heatsinks, VRM heatsinks, and backplates.
Software & Extras
Bundled with Armoury Crate, Aura Sync RGB, Dolby Atmos, and AIDA64 (trial), it offers deep customization. Accessories include Wi-Fi antenna, SATA cables, M.2 tools, and ROG stickers.
Quick Compare
| Product Details | ||||
| Product | ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming Motherboard | GIGABYTE Z890 AORUS ELITE ICE WIFI 7 DDR5 MOTHERBOAD | MSI PRO Z890-A WIFI LGA 1851 ATX Motherboard | GIGABYTE Z790 AERO G 13TH AND 12TH GEN DDR5 ATX MOTHERBOARD |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | ROG STRIX B860-F GAMING WIFI | Z890 AORUS ELITE WIFI7 ICE | PRO Z890-A WIFI | Model |
| Brand | Asus | Gigabyte | MSI | Gigabyte |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | ASUS ROG STRIX B860-F GAMING WIFI Intel LGA1851 ATX Gaming MotherboardASUS ROG STRIX B860-F is designed for the latest Intel LGA1851 socket, supporting Intel Core Ultra Series 2 processors. With Intel B860 Chipset and technologies like Intel Turbo Boost 2.0 and Turbo Boost Max 3.0, it ensures high performance and efficiency for both gaming and productivity.High-Speed Memory & StorageThis motherboard comes with 4 DIMM slots, supporting up to 256GB DDR5 memory with speeds up to 9066MT/s (OC). It includes support for Intel XMP profiles and ASUS Enhanced Memory Profile III (AEMP III) for fine-tuned performance. Storage options are equally robust, featuring 4 M.2 slots (PCIe 5.0 & PCIe 4.0) and 4 SATA 6Gb/s ports, with RAID 0/1/5/10 support.Graphics & ExpansionWith DisplayPort, HDMI, and Thunderbolt 4 outputs, it supports resolutions up to 8K@60Hz with DSC. Expansion includes PCIe 5.0 x16 for powerful GPUs and an additional PCIe 4.0 x16 slot (x4 mode), ensuring future-proof gaming and content creation capability.Networking & ConnectivityGamers get ultra-fast connectivity with Wi-Fi 7 (802.11be), 2x2 antennas, and 2.5Gb Intel Ethernet. It also includes Bluetooth v5.4, making it perfect for both wired and wireless setups.SupremeFX AudioThe ROG SupremeFX ALC4080 codec delivers 7.1-channel surround sound with premium capacitors, Savitech amplifier, and optical S/PDIF out, ensuring immersive audio for gaming and media.DIY-Friendly Design & FeaturesASUS equips this board with Q-Design features such as M.2 Q-Latch, PCIe Q-Release Slim, and pre-mounted I/O shield for easy installation. Enhanced cooling includes M.2 heatsinks, VRM heatsinks, and backplates.Software & ExtrasBundled with Armoury Crate, Aura Sync RGB, Dolby Atmos, and AIDA64 (trial), it offers deep customization. Accessories include Wi-Fi antenna, SATA cables, M.2 tools, and ROG stickers... | GIGABYTE Z890 AORUS ELITE ICE WIFI 7 DDR5 MOTHERBOADGIGABYTE Z890 AORUS ELITE ICE WIFI 7 DDR5 Motherboard is a powerhouse designed for enthusiasts and gamers seeking exceptional performance and reliability. With support for Intel Core Ultra Processors (Series 2) and the advanced Intel Z890 chipset, this motherboard delivers cutting-edge computing capabilities.This motherboard features an ATX form factor and supports DDR5 memory, offering speeds up to 9200MT/s when overclocked and a maximum capacity of 256GB. Whether you're gaming, streaming, or handling heavy multitasking, the Z890 AORUS ELITE ensures seamless performance. Its robust PCIe 5.0 and PCIe 4.0 slots provide enhanced expansion options for high-performance GPUs and storage solutions.Equipped with state-of-the-art connectivity options, the motherboard includes Intel Thunderbolt™ 4, multiple USB 3.2 ports, and advanced networking options like Realtek 2.5Gb Ethernet and MediaTek Wi-Fi 7. These features enable ultra-fast data transfers and lag-free gaming experiences. For immersive audio, the Realtek ALC1220 CODEC offers high-definition sound, including support for 7.1-channel setups and S/PDIF out.The Z890 AORUS ELITE also focuses on aesthetics and durability with its sleek design and premium build quality. Integrated RGB lighting with addressable headers allows for customizable illumination to match your setup. The advanced cooling design, including multiple fan and water cooling pump headers, ensures your system remains cool and stable even under heavy loads.With support for GIGABYTE's Control Center (GCC), Q-Flash Plus, and Smart Backup, the motherboard provides users with intuitive tools for system management and updates. Its extensive storage options include four M.2 connectors and four SATA 6Gb/s ports, ensuring flexibility for high-speed storage configurations.The GIGABYTE Z890 AORUS ELITE ICE WIFI 7 is the ideal choice for those who demand peak performance, superior connectivity, and reliability for their next-generation PC build.FeaturesSupports Intel Core Ultra Processors with Intel Z890 Chipset.DDR5 memory support with speeds up to 9200MT/s (O.C) and a maximum capacity of 256GB.PCIe 5.0 slot for next-gen GPU and SSD support.Advanced networking with Realtek 2.5Gb Ethernet and Wi-Fi 7.Thunderbolt™ 4 and USB 3.2 ports for ultra-fast data transfer.High-definition audio with Realtek ALC1220 CODEC and 7.1-channel support.Robust cooling system with multiple fan and pump headers.RGB lighting with customizable effects via GIGABYTE Control Center... | MSI PRO Z890-A WIFI LGA 1851 ATX Motherboard.. | GIGABYTE Z790 AERO G 13TH ATX MOTHERBOARD GIGABYTE Z790 AERO G Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production. Simplify Your Connections. Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C® cable. DDR5 will satisfy your insatiable need for speed. Whether you’re editing hundreds of audio samples, working with 4K video, or even multitasking,DDR5 will satisfy your insatiable need for speed. Performance Equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices. Fast Speed. More Space. Equipped with a full-speed PCIe 5.0 M.2 slot. A total of five onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration. Aesthetic Cooling Design. GIGABYTE’s advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process. Key Features Supports 13th And 12th Gen Intel Core Series Processor VisionLINK: One USB-C Port For Video, Data Transfer And Charging Dual Channel DDR5 : 4*SMD DIMMs With XMP Memory Module Support Next Generation Storage : 1*PCIe 5.0 X4 And 4*PCIe 4.0 X4 M.2 Connectors GIGABYTE Z790 AERO G vs ASUS PRIME H610M-A D4 INFORMATION GIGABYTE Z790 AERO G ASUS PRIME H610M-A D4 CHIPSET Intel® Z790 Express Chipset Intel H610 Chipset FORM FACTOR ATX Form Factor; 30.5cm x 24.4cm mATX Form Factor 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm ) LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x Intel 1Gb Ethernet CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 [embed]https://www.youtube.com/watch?v=iG2_mx-CdHc[/embed] [ninja_tables id="57842"].. |
|
|
|
|
|
|
