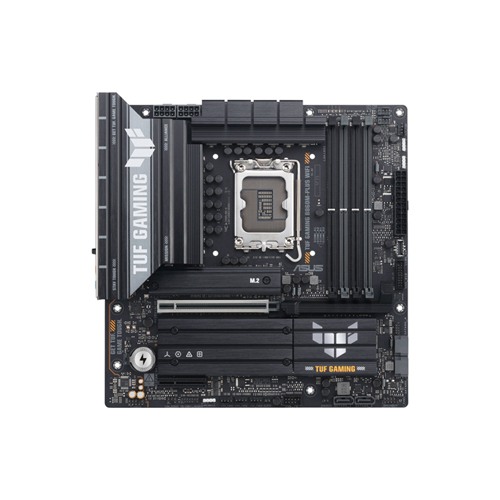

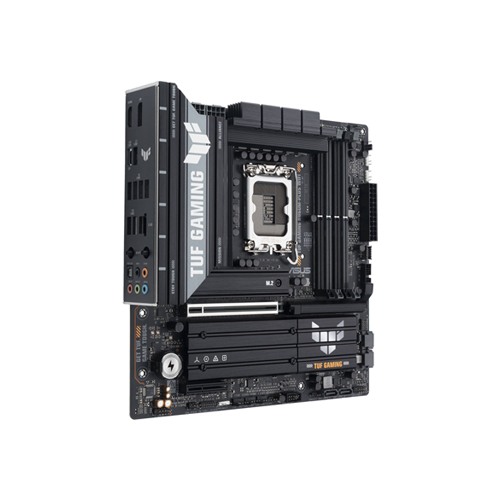

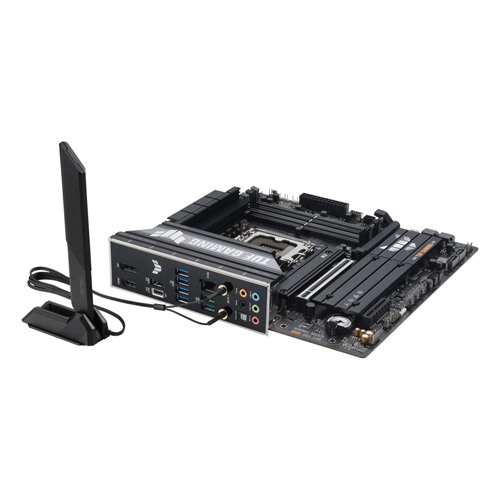

Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard
- Stock: In Stock
- Brand: Asus
- Model: TUF GAMING B860-PLUS WIFI
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB, 8666+ MT/s (OC)
- Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
- Features: 3x M.2, Realtek 2.5Gb LAN, Wi-Fi 7, Bluetooth 5.4
| General Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving ASUS DriverHub ASUS GlideX TUF GAMING CPU-Z Adobe Creative Cloud (Free Trial) DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Display Port (s) | 1x DisplayPort 1.4a |
| Graphics | 1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
| M.2 Socket | 3x M.2 |
| PCI | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode. |
| RAID | SATA RAID 0/1/5/10 |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
| Main Features | |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | INTEL B860 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket |
| Memory Specifications | |
| Maximum Memory | Maximum Memory Capacity 256GB |
| Memory Slots | 4 |
| Memory Type | DDR5 |
| Supported Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)*" Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
| Connector & ports | |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x USB Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x USB Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
| Warranty Information | |
| Warranty | 3 Year warranty |
Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard
The Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard is built on the Intel B860 chipset with support for Intel Core Ultra Processors (Series 2) using the LGA 1851 socket, delivering next-gen performance and efficiency for gamers, PC builders, creators, and professionals. With Intel Turbo Boost Technology 2.0 and Turbo Boost Max 3.0, it ensures reliable speed and responsiveness for gaming, multitasking, content creation, and high-performance computing. This DDR5 motherboard features four DIMM slots supporting up to 256GB of DDR5 memory with speeds up to 8666+ MT/s (OC), dual-channel architecture, Intel® XMP, and ASUS Enhanced Memory Profile III (AEMPIII) for optimized stability and overclocking.
High-Performance Expansion and Storage
Equipped with a PCIe 5.0 x16 slot, a PCIe 4.0 x16 (x4 mode), and a PCIe 4.0 x1 slot, the Asus TUF GAMING B860-PLUS WIFI motherboard supports advanced graphics cards, GPUs, and expansion options. For storage, it offers 3× M.2 PCIe slots (5.0/4.0) and 4× SATA 6Gb/s ports with RAID 0/1/5/10 support, ensuring ultra-fast performance, SSD and HDD compatibility, and versatile storage setups for gaming rigs and workstation PCs.
Immersive Visuals, Audio, and Connectivity
The motherboard supports 4K@60Hz resolution via HDMI 2.1 and DisplayPort 1.4, while a USB Type-C (20Gbps) port with DP Alt Mode enhances display connectivity for monitors. Audio is powered by Realtek 7.1 Surround Sound HD CODEC with 24-bit/192kHz playback for immersive sound during gaming and media production. Networking includes Realtek 2.5Gb Ethernet with TUF LANGuard, Wi-Fi 7 (802.11be) up to 2.9Gbps, and Bluetooth 5.4 for stable wired and wireless connections.
Why Choose Asus TUF GAMING B860-PLUS WIFI?
- Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
- DDR5 motherboard with 4× DIMM slots up to 256GB, 8666+ MT/s (OC), XMP & AEMPIII support
- 3× M.2 PCIe (5.0/4.0) + 4× SATA ports with RAID 0/1/5/10 support
- PCIe 5.0 x16 slot for next-gen GPUs, graphics cards, and expansion
- Realtek 2.5Gb Ethernet, Wi-Fi 7, and Bluetooth 5.4 connectivity
- 4K-ready HDMI 2.1, DisplayPort 1.4, and USB-C DP Alt Mode
- Realtek 7.1 Surround Sound HD Audio for immersive gaming and media
- ASUS TUF Protection, Thermal Solutions, and Aura Sync RGB
Buy Now Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard at Ultra Technology
The Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard, available at Ultra Technology, combines DDR5 performance, PCIe 5.0 expansion, advanced M.2 storage, Wi-Fi 7, 7.1-channel audio, and high-speed networking in a durable ATX design—perfect for gaming PCs, professional workstations, and high-performance custom builds.
