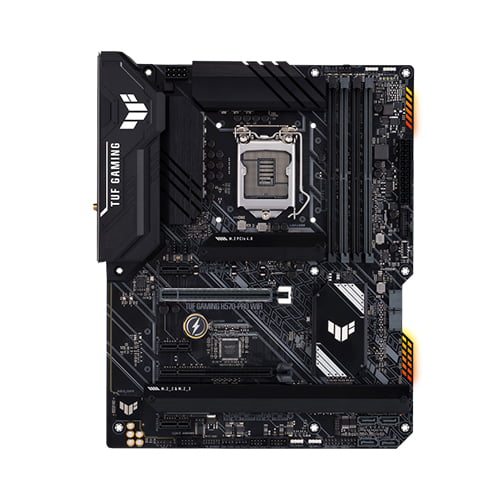

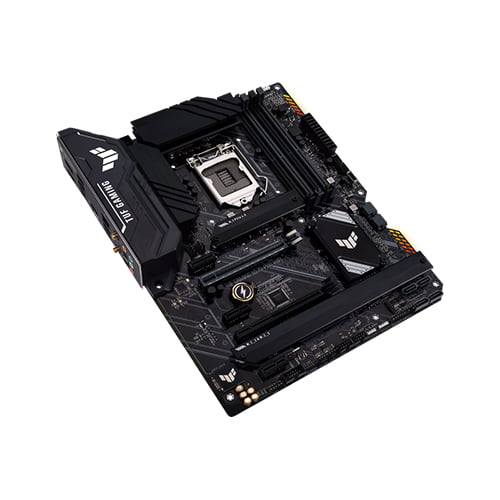

ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard

ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard
ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard
ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard
ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard
-5 %
ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard
ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard
ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard
ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard
ASUS TUF GAMING H570-PRO WIFI 6 LGA 1200 ATX Gaming Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: Asus
  • Model: 1200M
  • SKU: 1200M

Discontinued

Add to Wish List Compare this Product

Key Features

    • Intel LGA 1200 socket
    • Enhanced power solution
    • Comprehensive cooling
    • Made for online gaming
    • Two-way AI Noise-Cancelation
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information

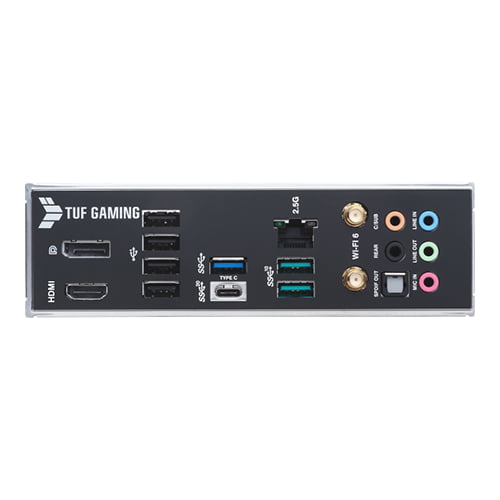

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Ethernet 1 x Realtek 2.5Gb Ethernet
Expansion Slots Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th processors support PCIe 4.0 x16 - Intel® 10th processors support PCIe 3.0 x16 Intel® H570 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 3 x PCIe 3.0 x1 slots Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory.
Intrernal I/O Connectors 1 x Thunderbolt 4 header Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
Manageability WOL by PME, PXE
Memory DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/ 3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/ 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
Operating System Windows 10 64bit
Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - TUF LANGuard - Overvoltage Protection ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel H570 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 6 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
USB Rear USB:Total 8 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Wireless & Bluetooth Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later
Main Features
Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Chipset Intel H570 Chipset
Form Factor ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Graphics Specifications
Graphics Memory 1 x DisplayPort 1.4 1 x HDMI 2.0 Graphics specifications may vary between CPU types. Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to

ASUS TUF GAMING H570-PRO WIFI Gaming Motherboard

ASUS TUF GAMING H570-PRO WIFI Gaming Motherboard takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING H570-PRO WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors, plus support for faster memory and storage, TUF GAMING H570-PRO series motherboards are the perfect foundation for your next high-core-count battle rig.

DrMOS

The onboard VRM of TUF GAMING H570-PRO series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.

Easy PC DIY

TUF GAMING motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity.

Build with Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

Immersive Gaming

TUF GAMING H570-PRO series motherboards provide a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Exclusive 2.5 Gigabit Ethernet

2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
