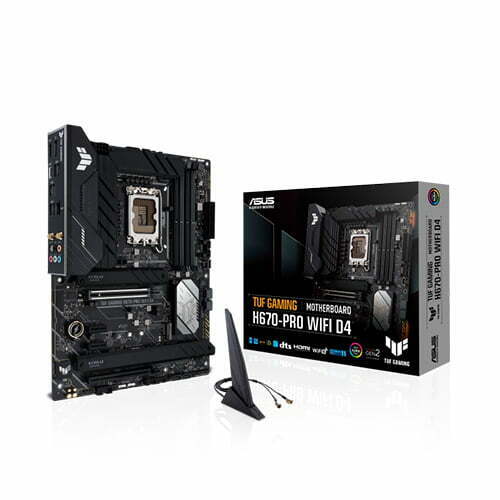

ASUS TUF GAMING H670-PRO WIFI D4 12th Gen Intel ATX Motherboard

ASUS TUF GAMING H670-PRO WIFI D4 12th Gen Intel ATX Motherboard
ASUS TUF GAMING H670-PRO WIFI D4 12th Gen Intel ATX Motherboard
-5 %
ASUS TUF GAMING H670-PRO WIFI D4 12th Gen Intel ATX Motherboard
ASUS TUF GAMING H670-PRO WIFI D4 12th Gen Intel ATX Motherboard
ASUS TUF GAMING H670-PRO WIFI D4 12th Gen Intel ATX Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: Asus
  • Model: H670P
  • SKU: H670P

Discontinued

Add to Wish List Compare this Product

Key Features

    • ATX Form Factor
    • Intel H670 Chipset
    • LGA 1700 Socket
    • 4 x Dual-Channel DDR4-5333 (O.C.)
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Display 1 x DisplayPort 1.4 1 x HDMI 2.1
Add-On 1 x Thunderbolt Header
Air Cooling 2 x 4-Pin CPU 4 x 4-Pin System
AUDIO CODEC Realtek (7.1-Channel)
Bluetooth 5.2
Channel Architecture Dual Channel
CPU Socket LGA 1700
Diagnostics Clear CMOS
Dimensions 12.0 x 9.6" / 30.5 x 24.4 cm
ECC Support Non-ECC Unbuffered
I/O Connection Headers AAFP
LED Header 4 x RGB
Legacy 1 x Serial
Liquid Cooling 1 x 4-Pin Pump
M.2 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified)) 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
Maximum Capacity 128 GB
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5333 MHz
Power Connectors 1 x 24-Pin Mainboard 1 x 8-Pin ATX 1 x 4-Pin ATX
ROM 192 Mb
Security Chassis Intrusion
Supported Operating Systems Windows 11 (64-Bit) Windows 10 (64-Bit)
Thunderbolt None
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port) 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Wi-Fi Wi-Fi 6 (802.11ax) (MU-MIMO)
SATA 4 x SATA III
Main Features
Audio None
Chipset Intel H670
Form Factor ATX
Memory Specifications
Memory Slots 4 x 288-Pin
Physical Specification
Expansion Slots 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1

ASUS TUF GAMING H670-PRO WIFI D4 Motherboard

ASUS TUF GAMING H670-PRO WIFI D4 Motherboard features the Intel H670 chipset and LGA 1700 socket. Install up to 128GB of dual-channel DDR4 RAM across four memory slots, with speeds up to 5333 MHz supported when overclocking. Four SATA III and four M.2 connectors allow you to install a wide array of storage drives, while the PCIe 5.0 x16 slot allows you to install high-end graphics cards. The onboard VRMs feature 14+1 DRMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package delivering the power efficiency that 12th Gen Intel Core processors demand. The power stages are each rated to handle 50 amperes to provide stable performance for current and future Intel processors. Six-Layer PCB Design Six printed circuit board (PCB) layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. Built TUF Military-grade TUF chokes deliver steady power to the CPU, helping to improve system stability, while TUF capacitors deliver +20% temperature tolerance and 2.5 times longer lifespan. PCIe 5.0 The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data-transfer speed of PCIe 4.0, making it robust enough to handle data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-on cards, and backward compatibility with previous versions of PCI Express. Thunderbolt 4 Support TUF Gaming H670 series motherboards feature Thunderbolt 4 support via an onboard header. With an intel-certified ASUS ThunderboltEX 4 add-on card (sold separately), TUF Gaming H670-PRO Wi-Fi D4 can also enable bi-directional speeds of up to 40 Gb/s on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display.
