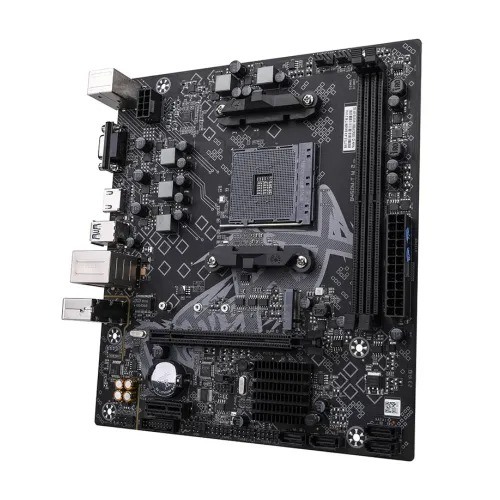

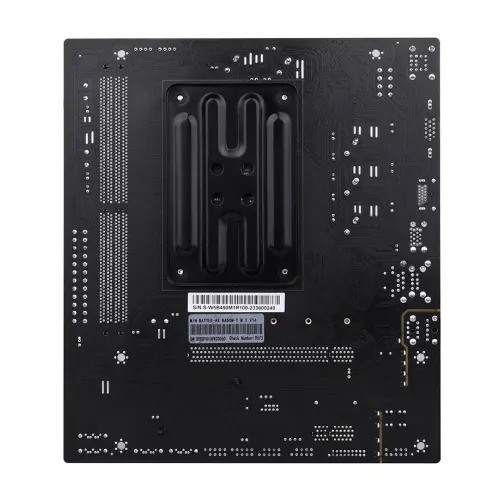

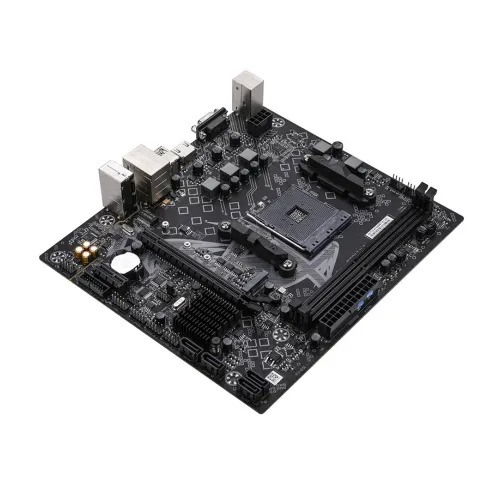

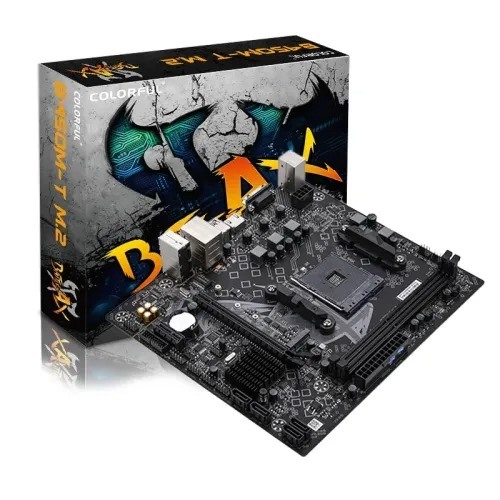

Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard
TBA
- Stock: Out Of Stock
- Brand: Colorful
- Model: BATTLE-AX B450M-T
Out Of Stock
Key Features
- Supported CPU: Ryzen 5000/ 5000 G/ 3rd/ 2nd/1st Gen for Socket AM4
- Supported RAM: 2x DDR4 Up to 3600(OC) Max. 64GB
- Graphics Output: 1x HDMI 2.0, 1x VGA
- Features: 1x M.2 slot, 1x RTL8111H Gigabit Ethernet Card
| Main Features | |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels |
| BIOS | 128M UEFI, support multiple languages |
| Chipset | AMD B450 |
| Form Factor | M-ATX 220mmx195 mm |
| Supported CPU | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard |
| Memory Specifications | |
| Maximum Memory | Up to 64GB of memory (a single socket can support up to 32 GB of memory) |
| Slots | 2 x DIMM |
| Supported Memory | Supports DDR4-3600 (OC)/3200 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666/2400/2133 MHz memory Supports Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology |
| Type | DDR4 |
| Connector & ports | |
| Audio Jack | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| HDMI | 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution |

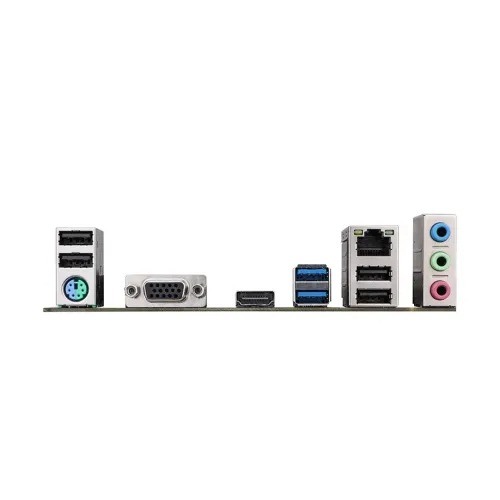

| Internal I/O Ports | Rear I/O: -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/output/microphone) On board : -1×CPU fan pin -1×System fan pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×Debug light pin |
| LAN Port (s) | 1×Gigabit network interface RTL8111H Gigabit Ethernet Card |
| Supported Storage | 1x M.2 slot and 4 SATA 6Gb/s hard drive interfaces M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel) |
| USB (s) | 4×USB 2.0 interfaces 2×USB 3.2 Gen 1 Type-A interfaces |
| VGA | 1×VGA interface |
| Expansion Slots | |
| M.2 Socket | 1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel) |
| PCI | 1 PCIe 3.0 x16 slot 1 PCIe 3.0 x1 slot |
| Other Features | |
| Special Features | Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| Warranty Information | |
| Warrantty | 03 years |
Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard for Reliable Gaming and Performance Builds
The Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard is a solid choice for gamers, PC builders, and everyday users who want a dependable foundation for their AMD-based build. Designed with the popular AM4 socket, this board supports Ryzen processors and offers essential features to power gaming rigs and productivity systems. Its compact mATX form factor allows installation in a variety of cases while still providing multiple connectivity options and expansion slots. The onboard M.2 slot enables high-speed NVMe SSD storage, reducing load times and improving system responsiveness. With durable build quality and optimized performance features, the Colorful BATTLE-AX B450M-T motherboard from Ultra Technology delivers reliable performance for gamers and creators on a budget.
AM4 Socket Support for AMD Ryzen Processors
The Colorful BATTLE-AX B450M-T motherboard supports AMD AM4 socket processors, making it compatible with a wide range of Ryzen CPUs. Whether you’re equipping an entry-level Ryzen for everyday tasks or a more powerful Ryzen for gaming and multitasking, this board provides the performance foundation you need. The AM4 platform is well-established and offers excellent compatibility with DDR4 memory and modern components, ensuring smooth performance for both casual users and gamers alike.
M.2 Slot for High-Speed NVMe SSD Storage
This motherboard features an onboard M.2 slot that supports high-speed NVMe SSDs, allowing you to take advantage of fast read/write performance and quick system boot times. Installing an M.2 SSD dramatically improves overall responsiveness compared to traditional SATA storage, reducing application load times and enhancing workflow efficiency. This makes the Colorful BATTLE-AX B450M-T an efficient choice for users who want fast storage without extra hardware complexity. The combination of DDR4 memory support and M.2 storage boosts system performance for gaming and professional tasks.
Compact mATX Design for Flexible Builds
The mATX form factor of the Colorful BATTLE-AX B450M-T motherboard makes it ideal for compact and space-efficient builds. It fits many mid-tower and micro-tower cases, providing flexibility for users who want smaller yet powerful systems. Despite its compact size, the board still offers essential ports, expansion slots, and connectivity options for USB devices, audio peripherals, and graphics cards. This versatility makes it suitable for gaming, multimedia, and everyday computing setups.
Reliable Build Quality and Essential Connectivity
Built with durable components, the Colorful BATTLE-AX B450M-T motherboard provides dependable performance over long periods of use. It includes multiple USB ports, audio jacks, and PCIe slots to connect your peripherals and expansion cards easily. The stable power delivery and efficient layout support consistent performance during gaming and multitasking workloads. This board is a practical solution for users who want a reliable motherboard that balances features and affordability.
Buy Now from Ultra Technology
Buy the Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard from Ultra Technology and start building a strong and efficient PC system. Ultra Technology offers genuine products, competitive prices, and expert customer support to help you choose the right components for your build. Whether you’re building a gaming rig, home PC, or productivity workstation, this motherboard gives you the performance and reliability you need. Order now from Ultra Technology and enjoy fast delivery and professional assistance for your PC project.
