Summary |
Compatibility
Motherboard Support
ATX, Micro-ATX, Mini-ITX
Internal Drive Bays
2 x 3.5"
1 x 2.5"
Expansion Slots
7 x Full Height
Maximum GPU Length
15.75" / 400 mm
CPU Cooler Height
6.42" / 163 mm
Supported PSU Size
ATX
Maximum PSU Length
7.09" / 180 mm
Cooling
Fan Mounting (Front)
3 x 120 mm
Or
2 x 140 mm
Fan Mounting (Rear)
1 x 120 mm
Fan Mounting (Top)
2 x 120 mm
Fans Included (Front)
2 x 120 mm LED
Fans Included (Rear)
1 x 120 mm
Maximum Radiator Size (Front)
280 mm
Maximum Radiator Size (Rear)
120 mm
Filter Locations
Bottom, Front, Top
I/O
Connections
2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
Audio Connections
1 x 3.5 mm Input
1 x 3.5 mm Output
Display Connections
None
Physical
Windowed Panel
Yes
Material
Tempered Glass, Steel, Plastic
Built-In Lighting
Yes
Cable Management Space
0.91" / 23 mm
Dimensions (W x H x D)
19.33 x 8.31 x 17.91" / 491 x 211 x 455 mm
Weight
13.67 lb / 6.2 kg
Packaging Info
Package Weight
16.435 lb
Box Dimensions (LxWxH)
21.9 x 21.1 x 11.3"

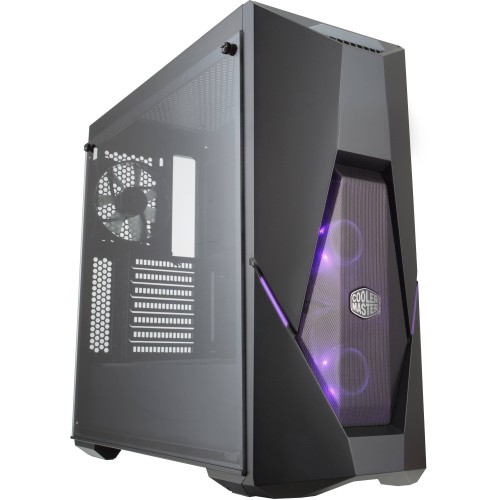

Cooler Master MasterBox K500 Mid-Tower Computer Case Overview
Show off your PC build with the MasterBox K500 Mid-Tower Computer Case from Cooler Master. Compatible with ATX, Micro-ATX, and Mini-ITX motherboards, the MasterBox K500 boasts a tempered-glass panel, ideal for showcasing your PC components, while two of the three included 120mm fans feature RGB lighting. RGB front-panel accents and an RGB controller are also included. The case comes equipped with two 3.5" drive bays, one 2.5" drive bay, support for liquid cooling systems, and room for graphics cards up to 15.7" long.
Efficient Thermal Performance
A partial meshed front panel and ventilation holes on top of the case give your parts fresh air to breathe.
RGB Lighting Effects
Two 120mm RGB fans behind the mesh, two RGB lighting accents on the front panel, and the RGB power button create a lighting system to show off your unique gaming build.
RGB Lighting Control
The included RGB controller can directly customize the lighting even without an RGB-ready motherboard.
1-to-5 Splitter Cable for RGB LED Fans
The included RGB Connector Splitter and 4-pin male-to-male adapters are designed for compatibility with ASUS, Gigabyte, MSI and ASRock motherboards.
Edge-to-Edge Tempered Glass Side Panel
Show off your build and have easy access to your components.
Black Coated Interior
Let your system stand out with a black coating and PSU cover.
.. |
