Summary |
SPECIFICATIONS
Interface:
Case Type: MID Tower
Motherboard Support: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX
Synchronization: 5V (3pin) with ASUS / MSI /ASROCK / GIGABYTE motherboard
Color: Black
Expansion Slots: 7
MATERIALS : Steel, Plastic, Tempered Glass, Mesh
WEIGHT : 6.95 kg
DUST FILTERS : Top, Bottom, Front
POWER SUPPLY SUPPORT : Bottom mount, ATX
Dimension (LxWxH): 493 x 217 x 469mm, 429.5 x 205x 447mm
I/O Port: 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller (only for the S00 versions), 1x ARGB 2-to-3 splitter
Pre-installed: Fans
Radiator Support:
TOP : 120mm, 240mm, 360mm, (44mm max motherboard component height)
FRONT : 120mm, 140mm, 240mm, 280mm, 360mm
REAR : 120mm
Fan Support:
TOP : 3x 120mm, 2x 140mm
FRONT : 3x 120mm, 2x 140mm
REAR : 1x 120mm
Drive Bays:
5.25″ DRIVE BAYS : No
2.5″ / 3.5″ DRIVE BAYS (COMBO) : 2
2.5″ DRIVE BAYS : 4 (2+2 combo)
Clearance:
CPU COOLER : 165mm
PSU : 180mm/7.08″, 295mm/11.61″ (w/ HDD cage removed)
GFX : 410mm/16.1″
DESCRIPTIONS

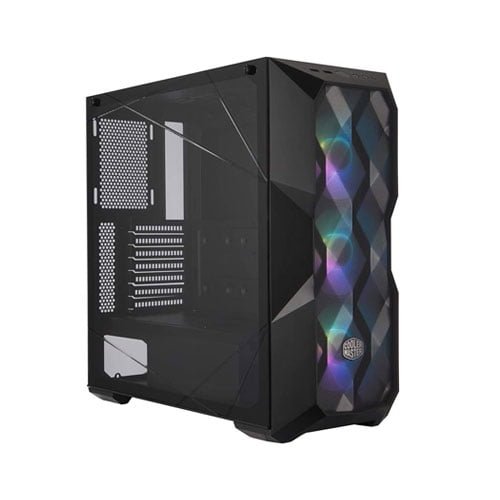

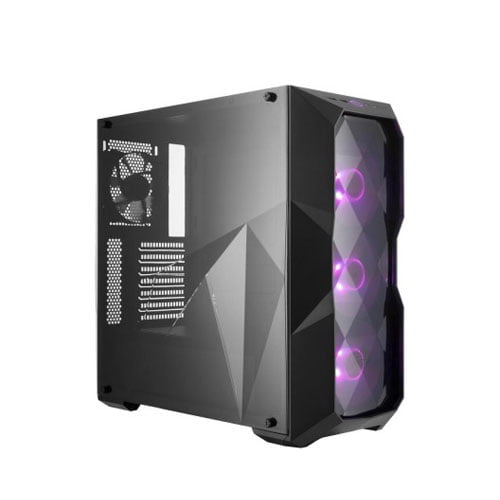

Cooler Master MasterBox TD500 Black Windowed ATX Full Tower Desktop Case
Cooler Master MCB-D500D-KANN-S00 MasterBox TD500 Black Windowed ATX Full-Tower Desktop Chassis
AESTHETIC DIAMOND CUT DESIGN
The diamond cut pattern extending from the front panel to the side panel shows a unique lighting effect for your system build.
EDGE TO EDGE TRANSPARENT SIDE PANEL
Show off your build through the uniquely shaped edge to edge transparent side panel and enjoy the special lighting effects from different viewing angles.
COVERS FOR CLEAN BUILDS
An additional cable covers take cable management to the next level. Assemble clean builds like a pro.
VERSATILE COOLING OPTIONS
Front: Three 120mm or two 140mm fans and up to a 360mm radiator.
Top: Two 120mm or two 140mm fans and a 120/240mm radiator.
Rear: One 120mm fan or radiator.
All to ensure you don’t have to compromise on performance.
MAIN COMPONENTS CLEARANCE
The MasterBox TD500 supports CPU-Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm, and Power Supplies up to a length of 180mm.
EXPANDING THE POSSIBILITIES
The spacious interior fits all standard motherboards for your system needs. Let your configuration stand out with an all-black background... |
