| Summary |
Key Features
Efficiency (Approx.)
80 PLUS Efficiency Bronze
Certification
RGB 650 Watt 80 Plus Bronze Certified
Fan Size
120 mm
Lighting Effect
Dynamic customizable lighting
Others
MTBF hours 100,000 hours
80 PLUS Efficiency Bronze
PSU Form Factor ATX
ATX12V Version v2.4
Continuous output rated temperature: C 40 ° C
Continuous power: 650 W
Fan bearing technology Sheathed bearing
Cable Type Black sheathed and flat cables
C-Link Ready: Yes
Dimensions: 150 x 86 x 140 mm
EPS12V Connector: 2
EPS12V Version: v2.92
Output
Modular Type
Fully modular
Total Power
650 W
Connector
CPU
ATX Connector 1
PCI-E
PCIe Connector 4
SATA
SATA Connector 7
Warranty Information
Manufacturing Warranty
05 years warranty

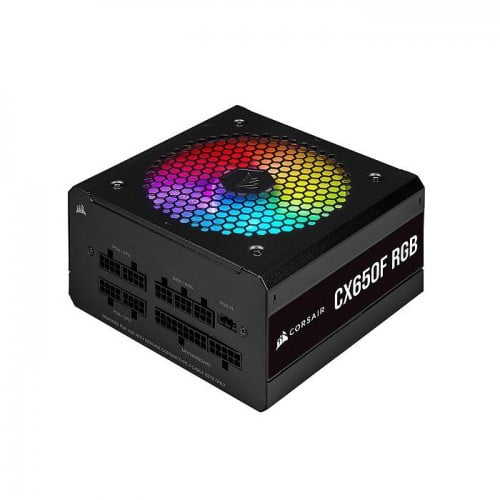

Corsair CX650F Power Supply Overview:
GO WITH THE GLOW
CX-F RGB power supplies light up the internals of your PC with eight individually addressable RGB LEDs and fully modular cables for easy cable management
BRILLIANT LIGHTING, INTELLIGENTLY CONTROLLED

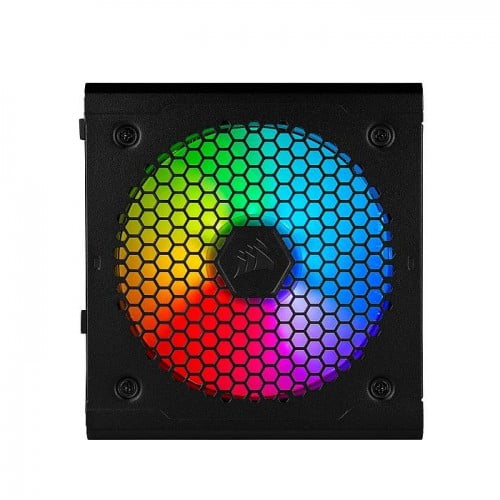

Each CX-F RGB PSU features a brilliantly lit 120mm RGB fan with eight individually addressable RGB LEDs to give beautiful accent lighting to your build.
THREE WAYS TO LIGHT IT UP
Push the button on the back, connect to a CORSAIR iCUE RGB Lighting Controller (sold separately), or use your motherboard’s built-in ARGB control with the included adapter cable. Control your lighting however you want to.
EFFICIENT, FULLY MODULAR POWER
CORSAIR CX-F RGB Series fully modular power supplies deliver reliable 80 PLUS Bronze efficient power to your system and let you use only the cables you need for a cleaner build.
OPTIMIZED FOR LOW NOISE
CX-F features a finely tuned 120mm RGB fan with a dedicated fan curve to keep noise levels down.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each CX-F RGB power supply features a robust LLC topology with DC-DC conversion, and 105°C rated 100% Japanese primary capacitors. And Microsoft Modern Standby Support ensures extremely fast wake-from-sleep times and better low-load efficiency.
COMPACT 140MM-LONG CASING
Ensures an easy fit in almost all modern enthusiast PC cases.

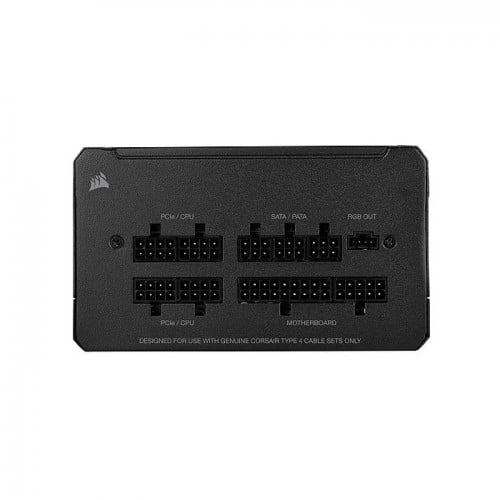

FULLY MODULAR
Reduce cable clutter by only connecting the cables that your system needs.
.. |
