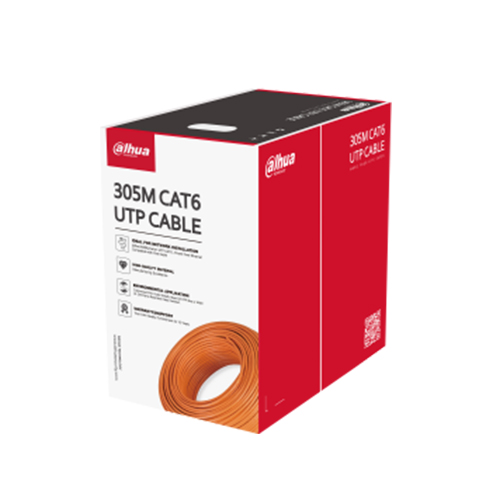

Dahua PFM922I-6UN-C CAT6 UTP Networking Cable

Dahua PFM922I-6UN-C CAT6 UTP Networking Cable

The Dahua PFM922I-6UN-C CAT6 UTP Networking Cable is a high-quality networking cable designed to provide reliable and efficient data transmission in various networking applications. With its advanced features and durable construction, this cable ensures optimal performance and durability.

One notable feature of the PFM922I-6UN-C cable is its certification. It complies with the CPR Eca certification, which guarantees its fire resistance and safety standards. This makes it suitable for installations in both residential and commercial settings where fire safety is a priority.

The cable's conductor is made of CCA (Copper-Clad Aluminum) material with a copper content of 22% to 31%. This conductor construction allows for efficient data transfer while providing cost savings compared to pure copper cables. The conductor has a diameter of 0.57 mm ± 0.01 mm, and it meets the 23AWG (American Wire Gauge) standard, ensuring reliable signal transmission.

The insulation material used is HDPE (High-Density Polyethylene), which provides excellent insulation properties. It has a minimum average thickness of 0.21 mm and a diameter of 1.02 mm ± 0.06 mm. The insulation maintains a minimum insulation resistance of 5000MΩ·km, ensuring reliable signal integrity and protection against interference.

The cable's sheath is made of PVC (Polyvinyl Chloride) material with a minimum average thickness of 0.5 mm. This durable sheath provides protection against physical damage and environmental factors. It has a diameter of 6.5 mm ± 0.3 mm and comes in an eye-catching orange color for easy identification.

The PFM922I-6UN-C cable offers excellent transmission characteristics, including a characteristic impedance of 100 ± 15Ω, near-end cross-talk of ≥39.30 dB/100 m at 250 MHz, maximum attenuation of 34.8 dB/100 m at 250 MHz, and a return loss of ≥17.3 dB/100 m at 250 MHz. These specifications ensure minimal signal loss and high-speed data transmission over long distances.

In terms of mechanical properties, the cable exhibits high tensile strength and elongation at break for both the sheath and insulation. It can withstand installation bending with a radius greater than 8 times its outer cable diameter, making it flexible and easy to install.

Furthermore, the Dahua PFM922I-6UN-C CAT6 UTP Networking Cable comes with a 10-year warranty, highlighting the manufacturer's confidence in its quality and reliability.

Features

• CPR Eca Certification: The cable is certified under the CPR (Construction Products Regulation) Eca classification, ensuring its compliance with fire safety standards. This makes it suitable for installations where fire resistance is a priority.
• CCA Conductor: The cable features a conductor made of CCA (Copper-Clad Aluminum) material with a copper content ranging from 22% to 31%. This construction provides efficient data transmission while offering cost savings compared to pure copper cables.
• 23AWG American Wire Gauge: The cable meets the 23AWG standard, which indicates the wire's diameter and ensures reliable signal transmission and performance.
• Electrical Performance: The cable has a maximum DC resistance of 11.5Ω/100 m for a single conductor and a minimum insulation resistance of 5000MΩ·km. It also maintains a low DC resistance unbalance of 2% (pair intra) and 4% (pairs inter). The cable exhibits excellent dielectric strength, with no breakdown observed at 1KV DC for 1 minute.
• Environmental Durability: The insulation material is made of HDPE (High-Density Polyethylene) and has a minimum average thickness of 0.21 mm. It exhibits a maximum shrinkage of ≤5% and maintains its integrity even under low-temperature bending and heat shock conditions. The cable can operate in temperatures ranging from -20°C to +60°C (-4°F to 140°F) and can be installed in temperatures ranging from 0°C to +50°C (32°F to 122°F).
• Color-Coded Pairs: The cable comes with color-coded pairs, including blue/white-blue, orange/white-orange, green/white-green, and brown/white-brown. This feature simplifies cable identification and helps with proper installation.
• Separator and Rip Cord: The cable includes a translucent PE separator with a specification of 4.5 × 0.4 mm, which helps maintain the cable's structural integrity. It also features a polyester rip cord with a specification of 500D, facilitating easy cable jacket stripping when required.
• PVC Sheath: The cable is protected by a durable PVC (Polyvinyl Chloride) sheath with a minimum average thickness of 0.5 mm. The sheath has a diameter of 6.5 mm ± 0.3 mm and comes in an orange color, providing additional protection against physical damage and ensuring easy identification.
• Transmission Performance: The cable offers excellent transmission characteristics, including a characteristic impedance of 100 ± 15Ω, near-end cross-talk of ≥39.30 dB/100 m at 250 MHz, maximum attenuation of 34.8 dB/100 m at 250 MHz, and a return loss of ≥17.3 dB/100 m at 250 MHz. These specifications guarantee minimal signal loss and reliable data transmission over extended distances.
• Mechanical Strength: The cable exhibits high mechanical strength, with the sheath having a tensile strength of ≥13.5 MPa and the insulation having a tensile strength of ≥16 MPa. It also displays elongation at break values of ≥150% for the sheath and ≥300% for the insulation. The cable's installation bending radius should be greater than 8 times its outer cable diameter.
• Conductor Elongation at Break: The cable's conductor offers elongation at break of ≥10%, providing flexibility and resilience during installation and operation.

Overall, the Dahua PFM922I-6UN-C CAT6 UTP Networking Cable is a dependable and high-performance networking cable suitable for various networking applications. It offers excellent transmission characteristics, durability, and fire safety compliance, making it an ideal choice for professional installations where reliable data transfer is essential.
