Summary |
Model
DQ750-M-V2L WH
Type
ATX 12V V2.4
Color
Black, White
Certifications
80PLUS GOLD
Dimension
150×160×86mm (W × L × H)
Output Capacity
750W
Input Voltage
100-240V
Input Current
10.0A
Input Frequency Range
47-63Hz
Fan Size
120mm
PFC
Active
Power Good Signal
100-500ms
Hold Up Time
>16ms (80% Loading)
Efficiency
>90% Under Typical Load (50% Loading)
Standby Efficiency
ErP Lot 3 2014
Protection
OVP/UVP/OCP/SCP/OPP/OTP
Operation Temperature
0-40°C
Regulatory
CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs
MTBF
100,000 Hours
EAN
6933412798941
P/N
DP-DQ750-M-V2L WH
OVERVIEW:

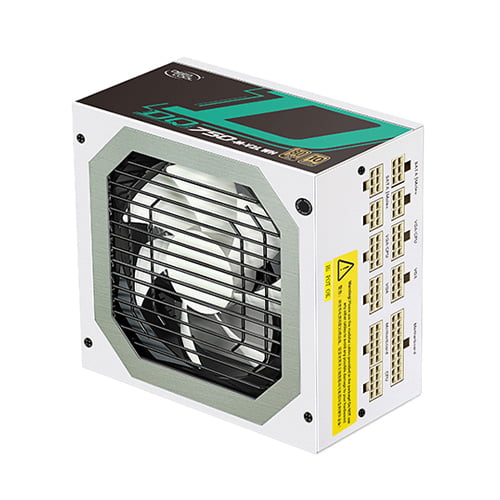

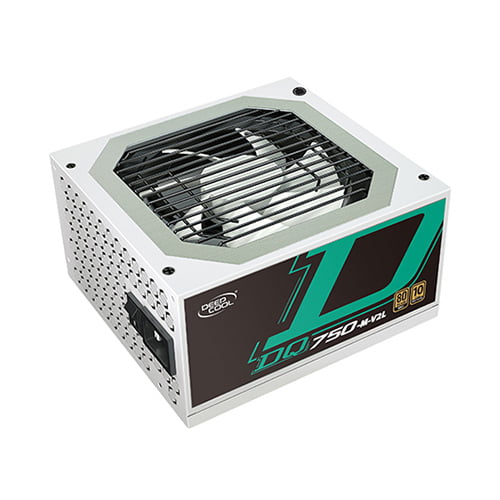

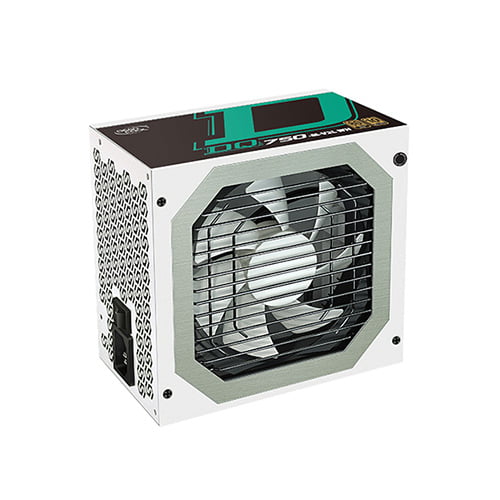

The DQ750-M-V2L WH fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L WH offers better reliability for your PC system.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L WH delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
Features:
80 PLUS® GOLD certified – Up to 90.4% efficiency
100% High quality Japanese capacitors
Full bridge PFC + LLC Resonant converter
Fully modular with flat cable design
CircuitShield™ — OVP / UVP / SCP / OPP / OTP
Output:
AC INPUT
VOLTAGE
CURRENT
FREQUENCY
100-240V
10.0A
47-63Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
CURRENT(Max)
20A
20A
62.0A
0.3A
2.5A
OUTPUT(Max)
110W
744W
3.6W
12.5W
RATED POWER
750W
.. |
Key Features
Efficiency (Approx.)
Efficiency: 88%
Certification
80 PLUS Bronze EU 230V
Fan Size
120mm
Input
Voltage
Input Voltage: 200-240Vac
Frequency Range
50-60Hz
Current
10-6A
Output
Modular Type
Non Modular
Total Power
MWE 750W
DC Output
DC to DC topology technologies
Connector
Main Power
ATX 24-PIN CONNECTORS: 1
CPU
EPS 4+4 PIN CONNECTORS: 1
EPS 8 PIN CONNECTOR: 1
PCI-E
PCI-E 6+2 PIN CONNECTORS: 4
SATA
SATA CONNECTORS: 6
Molex
PERIPHERAL 4-PIN CONNECTORS: 3
Warranty Information
Manufacturing Warranty
05 Years Warranty
Cooler Master 750W 230V 80 Plus Power Supply
The MWE Bronze V2 offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS Bronze efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great mid-tier computing experience, you can't go wrong with the MWE Bronze V2. It's important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn't need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn't necessarily either of those things. The MWE Bronze V2 guarantees a typical efficiency of 85% while being both safe and reliable.
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze's solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system's temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required. Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading. The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system's overall performance. That's why the MWE Bronze only uses one +12V rail for this process.
This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections. Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly.These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow. The many processes required by a power supply unit in order to take power directly from the wall or other fixed power source, convert it to the correct output required by the connected components, and then distribute that power to said components safely can be full of risks.
Visit Ultratech for more updated price in BD and follow us on Facebook for regular Offers.
.. |
Thermaltake Toughpower GF1 650W Gold Power Supply Overview
THERMALTAKE TOUGHPOWER GF1 650W GOLD models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors, and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near-silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.
Ultra Quiet 140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near-silent operation.
<30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components functioning reliably for longer.
Extremely Strict Voltage Regulation <±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 series saves energy through its high energy efficiency of up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
.. |
Thermaltake Smart BX1 Power Supply Overview
Thermaltake Smart BX1 Power Supply series is built to deliver 80 PLUS Bronze efficiency. It is mainly available in 550W, 650W, and 750W models. Now mainly talk about the 750W model. The 10 RGB LEDs come preinstalled on the 120mm fan. Capable of displaying 7 colors (Red, Green, Blue, Yellow, Purple, Light Blue, and White), 3 illumination modes including Pulse, Full-lighted and RGB Cycle, and an LED Off mode. Adding personal appeal to your build has never been so easy by just pressing one RGB lighting button! There is also a built-in memory function to save the color applied and insure the same color selection every time you boot your PC. An ultra-Quite 120mm Hydraulic Bearing Fan with intelligent RPM control to guarantee superior cooling performance and silent operation. All ripples are lower than 80mV for high stability on +12V, +5V, or +3.3V from 0% to 100% load to ensure a high-quality power supply. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, operating reliably for longer. A high-Quality Japanese Main Capacitor is used in this power supply which improves durability and offers the highest stability and reliability. Its Powerful single +12V rail ensures a stable and reliable supply to other PC components. Soft black cables come with a sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage. Smart BX1 RGB series saves energy through its high energy efficiency of up to 88% and is certified to 80 PLUS Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving. Smart BX1 RGB Series is the best idea for users to go with when they are looking for an RGB PSU that permits remarkable functionality and aesthetics in all cases.
