| Summary |
Video Memory Specifications
Type
GDDR6
Size
8 GB
Resolution
7680 x 4320
Core Clock
1845 MHz (Reference Card: 1725 MHz)
Memory Clock
14000 MHz
BUS Type
GDDR6
Memory Interface
PCI-E 4.0 x 16
Stream Processors
NVIDIA Ampere Streaming Multiprocessors
CUDA Cores
5888
Interface
Display Port
DisplayPort 1.4a x 3
HDMI
2.1 x 2,
2.0 x 1 (The middle HDMI output supports up to HDMI 2.0)
Power Specifications
Connectors
PCI-E 4.0 x 16
Recommended PSU
650W
Display Option
Multi Display
4
Application Programming Interfaces
DirectX
12 Ultimate
OpenGL
4.6
Physical Specifications
Dimensions
L=290 W=131 H=60 mm
Warranty
Manufacturing Warranty
02 years warranty

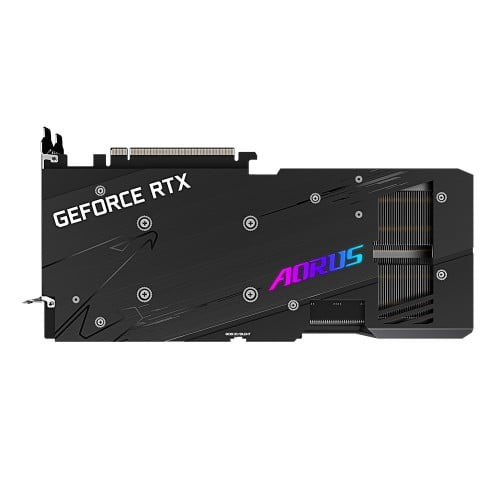

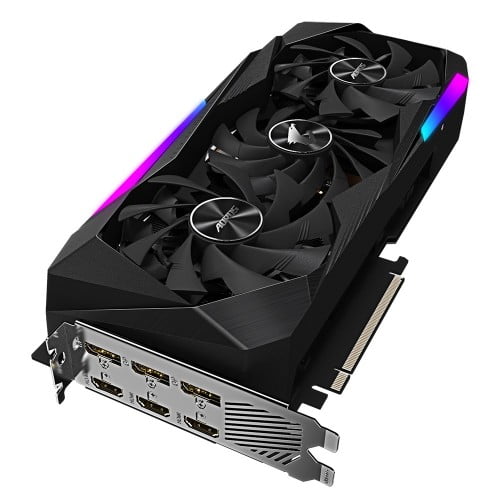

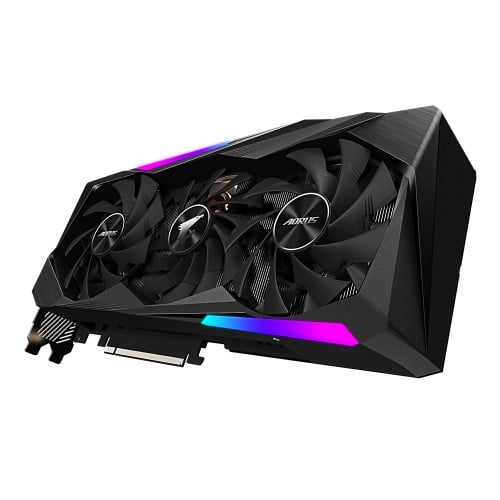

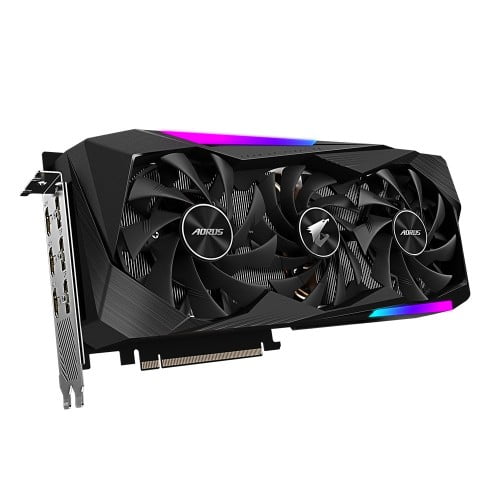

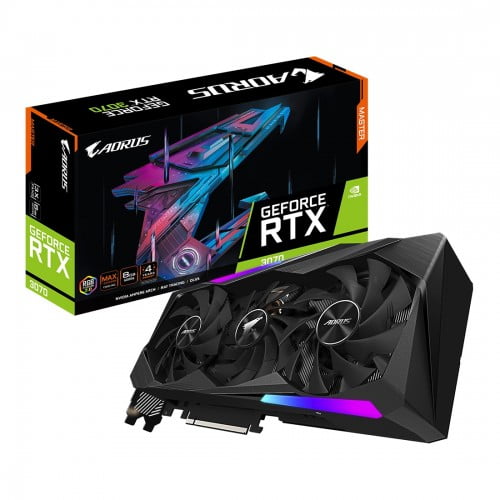

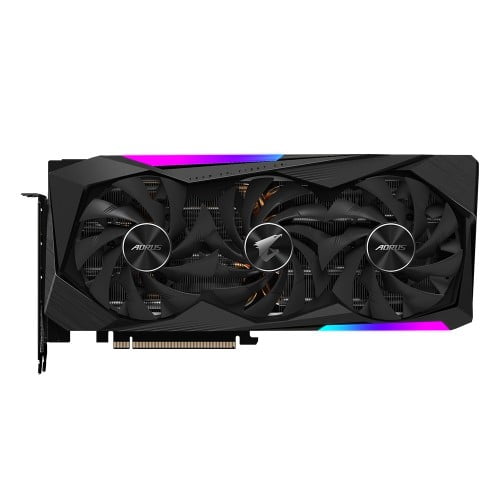

Gigabyte AORUS GeForce RTX 3070 MASTER 8GB Graphics Card
The latest NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. You will feel blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS. The NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming. Gigabyte AORUS GeForce RTX 3070 MASTER 8GB Graphics Card featured with NVIDIA Ampere Streaming Multiprocessors, Powered by GeForce RTX 3070, Integrated with 8GB GDDR6 256-bit memory interface, MAX-COVERED cooling, LCD Edge View, RGB Fusion 2.0, 6 video outputs and Protection metal back plate.
In this graphics card, NVIDIA Reflex delivers the ultimate competitive advantage with lowest latency. The best responsiveness. This graphics card is Powered by GeForce RTX 30 Series GPUs and NVIDIA G-SYNC monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games. You will enjoy new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. This Graphics card is featured with Steal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app gives you powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal.
.. |
Asus TUF GeForce RTX 3080 V2 Graphics Card
Asus TUF GeForce RTX 3080 V2 Graphics Card has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types. To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heat spreader at the microscopic level.
Asus TUF GeForce RTX 3080 V2 Graphics Card extra flatness allows for better contact with the die for improved thermal transfer. The heat spreader draws heat up into heat pipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint. This generation of TUF Gaming graphics cards also features a dedicated heatsink for VRAM to keep temperatures well under the maximum. The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. Beneath the GPU, a bracket provides consistent mounting pressure between the die and the heat spreader. ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display... |
MSI GeForce RTX 5070 Ti 16G SHADOW 3X OC 16GB GDDR7 Graphics CardMSI GeForce RTX 5070 Ti 16G SHADOW 3X OC Graphics Card. Built with the latest GDDR7 16GB memory, this card delivers incredible speed, responsiveness, and power, perfect for high-end gaming and creative workloads. It supports a maximum resolution of 7680 x 4320, making it ready for 4K and even 8K gaming experiences. The RTX 5070 Ti SHADOW 3X OC is engineered for extreme performance, reaching a core clock speed of up to 2497 MHz through MSI Center tuning, and a boost clock of 2482 MHz. Coupled with a blazing-fast memory clock of 28 Gbps and a 256-bit memory bus, it ensures seamless gameplay, faster load times, and unparalleled graphical fidelity. Equipped with the latest PCI-E 5.0 interface, it maximizes data transfer rates for smoother overall performance. With 8960 CUDA cores, real-time ray tracing, and AI-enhanced graphics powered by DirectX 12 Ultimate and OpenGL 4.6 support, this card brings lifelike visuals to your games and creative projects. Connectivity is robust with three DisplayPort 2.1b ports and one HDMI 2.1b port, allowing up to four simultaneous displays for multi-monitor setups. It requires a 16-pin power connector and recommends a 750W PSU for optimal performance, with a maximum power consumption of 350W. Physically, the card measures 303 x 121 x 49 mm, weighs 994g (card only), and follows the ATX PCB form factor. Plus, with MSI’s signature SHADOW 3X cooling technology, it keeps temperatures low and performance high during intense sessions. Backed by a solid 3-year manufacturing warranty, the MSI GeForce RTX 5070 Ti 16G SHADOW 3X OC is your ultimate upgrade for cutting-edge gaming and productivity... |
