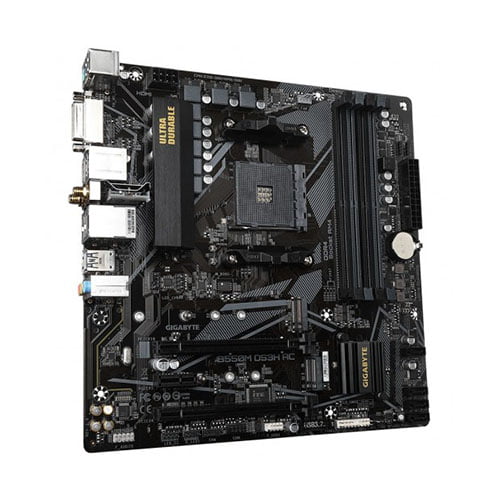

Gigabyte B550M DS3H AC AM4 Micro-ATX Motherboard

Gigabyte B550M DS3H AC AM4 Micro-ATX Motherboard
Gigabyte B550M DS3H AC AM4 Micro-ATX Motherboard
Gigabyte B550M DS3H AC AM4 Micro-ATX Motherboard
-16 %
Gigabyte B550M DS3H AC AM4 Micro-ATX Motherboard
Gigabyte B550M DS3H AC AM4 Micro-ATX Motherboard
Gigabyte B550M DS3H AC AM4 Micro-ATX Motherboard
Gigabyte B550M DS3H AC AM4 Micro-ATX Motherboard
Based on 0 reviews. - Write a review

TBA

  • Stock: Out Of Stock
  • Brand: Gigabyte
  • Model: B550M-DS3H
  • SKU: B550M-DS3H

Out Of Stock

Add to Wish List Compare this Product

Key Features

    • Model: Gigabyte B550M DS3H AC UD
    • Supports 3rd Gen AMD Ryzen Processors
    • Dual Ultra-Fast NVMe
    • High-Quality Audio Capacitors
    • RGB FUSION 2.0 Supports
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information

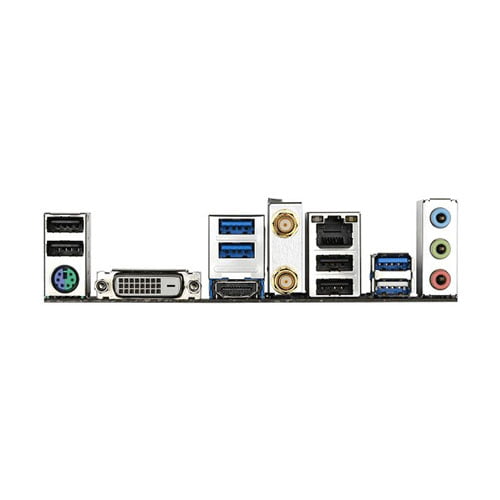

External I/O Ports 1 x PS/2 keyboard/mouse port 1 x DVI-D port 2 x SMA antenna connectors (1T1R) 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit) Wireless Communication module: Intel Wi-Fi AC 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate
Memory Type Dual Channel DDR4 Memory Technology Slots 4 x DIMM Supported Memory AMD Ryzen™ 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Mamory 128 GB
Slots PCI 1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode M.2 Socket 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs
USB port CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Main Features
Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD B550
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon™ Graphics processors Supporting SATA and PCIe 3.0 x2 SSDs
Graphics Specifications
Graphics Memory Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Max Shared Memory 16 GB
Connector & ports
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Supported Storage 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Warranty Information
Warranty 03 Years

Gigabyte B550M DS3H AM4 Micro-ATX Motherboard

Gigabyte B550M DS3H AC Motherboard maximizes your PC's potential with AMD Store MI technology. Store MI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC into a performance-driven system. PERFORMANCE Gigabyte B550M DS3H AC Motherboard use a 5+3 phases pure digital PWM + Low RDS (on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. CONNECTIVITY Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module, The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2. Dual NVMe PCIe 4.0*/3.0 M.2 Connectors Gigabyte B550M DS3H AC Motherboard With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, B550M DS3H AC Motherboard bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes. Exclusive Realtek 8118 Gaming LAN Gigabyte B550M DS3H AC Motherboard use High Speed Gigabit LAN with Automatic Bandwidth Allocation, Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. [ninja_tables id="47268"]
