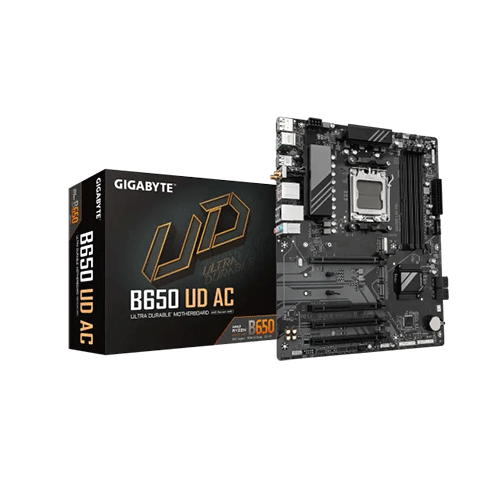

GIGABYTE B650 UD AC AM5 ATX Motherboard

Product ID: UT-10673
Customer rating: No reviews yet
Availability: In stock
Questions: 0 answered

1 / 1

All prices include VAT. 0% EMI from ৳2,083/mo on 29 banks.

Save ৳1,099 -4%৳25,000~~Was ৳26,099~~

Key features

Full specs

Supported Memory2 x DDR5 6400(OC) Max. 96GB
Features1 x DisplayPort, 1 x HDMI
Graphics Output2 x DisplayPort, 1 x HDMI port
Supported CPURyzen 9000 / 8000 / 7000 Series Processors for Socket AM5

0% EMI on credit cards of 29 banks — ৳2,083/mo for 12 months.
Online price saves you ৳1,099 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandGigabyte341 productsBrowse all →

Specifications

Key Specifications

Processor Type	AMD
Socket	AM5
Chipset	AMD B650
Form Factor	ATX

RAM Type	DDR5
Maximum Memory	192GB
Features	Wi-Fi, Bluetooth, M.2, RGB, USB Type-C, PCIe 5.0

Memory

Memory	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Expansion & Storage

Expansion Slots

PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1 Slots: 4 x DIMM

Storage

Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Graphics & Display

Onboard Graphics	supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.

Display Outputs	Display Port (s): 1 x DisplayPort HDMI: 1 x HDMI

Networking

LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless	AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek RTL8821CE) WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.)

Audio

Audio	3 x audio jacks

Ports & Connectors

USB

CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal Connectors

Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support

Other Features

BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features	TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus

Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty

Warranty	3 Years

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

GIGABYTE B650 UD AC AM5 ATX Motherboard

The GIGABYTE B650 UD AC AM5 ATX Motherboard is a high-performance, feature-packed motherboard designed to support AMD's cutting-edge Ryzen 7000, 8000, and 9000 series processors. With an AMD B650 chipset, it delivers robust performance and exceptional connectivity options for gaming, content creation, and everyday computing. This ATX motherboard supports DDR5 memory with speeds of up to 7600 MT/s (overclocked) and a maximum system memory capacity of 192 GB, ensuring fast and efficient multitasking. It features four DIMM slots with dual-channel architecture and supports both AMD EXPO and XMP memory profiles for optimized overclocking performance. For expansion, the GIGABYTE B650 UD AC offers a PCI Express x16 slot that supports PCIe 4.0, making it compatible with modern GPUs and NVMe SSDs. It also includes additional PCIe slots for added flexibility, but note that certain slots may be disabled when using specific Ryzen 8000 series processors. On the storage front, this motherboard provides three M.2 connectors, supporting both PCIe 5.0 and 4.0 NVMe SSDs, along with four SATA 6Gb/s ports, giving users extensive storage options. RAID configurations (RAID 0, 1, 10) are supported for both NVMe and SATA devices, offering enhanced data redundancy and performance. Connectivity is a standout feature of the GIGABYTE B650 UD AC, with a range of ports, including USB 3.2 Gen 2, HDMI 2.1, DisplayPort 1.4, and a Realtek 1 Gbps LAN port. It also includes integrated Wi-Fi 802.11ac and Bluetooth 5.0 for wireless connectivity. The motherboard also supports Gigabyte’s Control Center (GCC), allowing users to manage system settings and updates easily. Overall, the GIGABYTE B650 UD AC motherboard is an excellent choice for users seeking high performance, versatility, and future-proofing for their AMD-based systems.

GIGABYTE B650 UD AC AM5 ATX Motherboard Features

AMD AM5 Socket Support: Compatible with AMD Ryzen 7000, 8000, and 9000 series processors, providing a future-proof platform for high-end computing.
DDR5 Memory Support: Supports up to 192 GB of DDR5 memory across 4 DIMM slots with speeds of up to 7600 MT/s when overclocked, ensuring fast data processing and multitasking.
PCIe Expansion: Equipped with a PCI Express x16 slot supporting PCIe 4.0, providing high bandwidth for graphics cards or NVMe SSDs, alongside additional PCIe 3.0 x1 slots for other devices.
Triple M.2 Slots: Three M.2 connectors allow for fast storage solutions, including support for PCIe 5.0 and PCIe 4.0 NVMe SSDs, ensuring superior data transfer rates.
Advanced Connectivity: Features multiple USB ports, including USB 3.2 Gen 2 Type-A and USB Type-C, HDMI 2.1, DisplayPort 1.4, and Realtek GbE LAN for high-speed data transfer and display options.
Integrated Wi-Fi and Bluetooth: Includes an AzureWave Wi-Fi module supporting Wi-Fi 802.11ac and Bluetooth 5.0 for seamless wireless connectivity.
Audio and Visual: Realtek High Definition Audio CODEC supports up to 7.1-channel surround sound, ensuring immersive audio quality.
RAID Support: Offers RAID 0, 1, and 10 configurations for both NVMe SSDs and SATA storage, improving performance and data redundancy.
RGB and Cooling: Comes with multiple fan headers, water pump support, and addressable RGB Gen2 LED strip headers for efficient cooling and customizable lighting.
User-Friendly Features: Gigabyte's Control Center (GCC), Q-Flash, and Q-Flash Plus support make BIOS updates and system management easier.

These features make the GIGABYTE B650 UD AC a versatile and powerful motherboard for gaming, content creation, and performance-driven tasks.

Buy GIGABYTE B650 UD AC AM5 ATX Motherboard from Ultra Technology

Get the GIGABYTE B650 UD AC AM5 ATX Motherboard from Ultra Technology for ৳25,000 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from Gigabyte, explore more Gigabyte AMD Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
