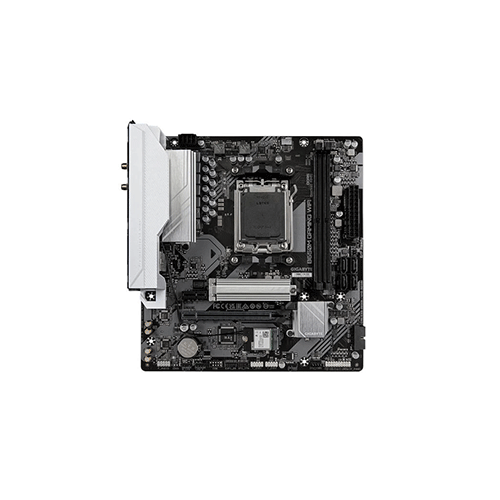

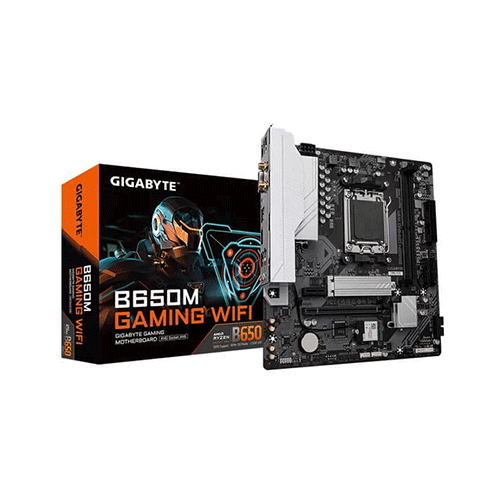

Gigabyte B650M Gaming WIFI AM5 MATX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: B650M Gaming WIFI
Key Features
- Fast Networks:2.5GbE LAN
- Extended Connectivity:HDMI , D-sub
- SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
- EZ-Latch:PCIe x16 Slot with Quick Release Design
| General Information | |

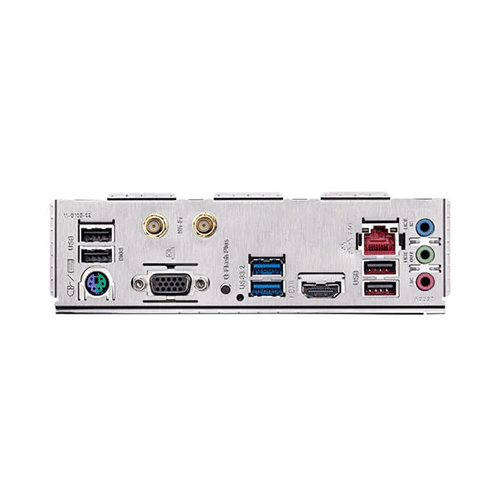

| Back Panel Connectors | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
| Expansion Slots | Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| USB | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 2 x USB 2.0/1.1 ports available through the internal USB header |
| Wireless Communication module | AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Main Features | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Chipset | AMD B650 |
| Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000/8000/9000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Warranty Information | |
| Warranty | 3 Years |
Gigabyte B650M Gaming WIFI AM5 MATX Motherboard
The Gigabyte B650M Gaming WIFI AM5 MATX Motherboard is a high-performance micro ATX board designed for users seeking power and versatility in a compact form. Powered by the AMD B650 chipset, this motherboard is compatible with AMD Ryzen 7000, 8000, and 9000 series processors, making it a future-proof choice for gamers and creators. It supports up to 96GB of DDR5 memory with dual-channel architecture, reaching speeds of up to 6400 MHz through overclocking (OC), ensuring exceptional multitasking and data processing performance. For connectivity, the B650M Gaming WIFI offers both high-speed wired and wireless options. It features a Realtek 2.5GbE LAN chip for stable wired connections and an integrated AzureWave Wi-Fi module supporting dual-band Wi-Fi 5 (802.11ac) and Bluetooth 4.2, giving users flexibility for seamless online experiences. Storage options include an M.2 slot with PCIe 4.0 support for rapid SSD access and four SATA 6Gb/s connectors supporting RAID 0, 1, and 10, allowing for both NVMe SSD and traditional SATA drives. Onboard graphics support includes a D-Sub port and HDMI 2.1 port capable of delivering high-definition visuals up to 4K, ideal for multi-display setups. The motherboard also supports 7.1-channel HD audio powered by Realtek, delivering immersive sound quality customizable through software. The Gigabyte B650M Gaming WIFI is equipped with a range of USB options, including USB 3.2 Gen 1 and USB 2.0 ports for convenient device connectivity. The board’s advanced thermal management features Smart Fan technology with multiple fan headers and customizable settings to maintain optimal cooling. Additional features like the Gigabyte Control Center (GCC) and Q-Flash Plus make firmware updates and system customization straightforward. With a 3-year warranty, the B650M Gaming WIFI AM5 offers robust performance, connectivity, and expansion options for demanding users.
Gigabyte B650M Gaming WIFI AM5 MATX Motherboard Features
- Powerful AMD B650 Chipset: Designed to support AMD Ryzen™ 7000, 8000, and 9000 Series Processors with the AM5 socket, delivering high performance for gaming and productivity.
- DDR5 Memory Support: Offers two DDR5 DIMM slots with a maximum memory capacity of 96GB and speeds up to 6400 MT/s through overclocking, supporting AMD EXPO™ and XMP profiles for flexible and high-speed memory configurations.
- Integrated Wi-Fi and Bluetooth: Equipped with an AzureWave Wi-Fi module supporting dual-band Wi-Fi 5 (802.11ac) and Bluetooth 4.2, providing flexible wireless connectivity options.
- Realtek® 2.5GbE LAN: Comes with a Realtek® 2.5GbE LAN chip, ensuring fast and stable wired network connections for gaming and streaming.
- High-Definition Audio: Realtek® Audio CODEC supports up to 7.1-channel audio, with customizable jack functionality and enhanced sound quality for immersive audio experiences.
- Multiple Expansion Slots: Includes one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for graphics cards and other expansion needs, allowing enhanced performance and customization.
- Storage Versatility: Features one PCIe 4.0 M.2 slot for ultra-fast SSDs and four SATA 6Gb/s connectors with RAID 0, 1, and 10 support for ample storage options.
- USB Connectivity: Offers a mix of USB 3.2 Gen 1 and USB 2.0 ports, along with internal headers for connecting additional USB devices, ensuring broad compatibility with peripherals.
- Compact Micro ATX Form Factor: Measuring 24.0cm x 22.5cm, it fits easily in compact cases while delivering comprehensive features for gaming setups.
- User-Friendly Features: Supports GIGABYTE Control Center (GCC) for easy system management and Q-Flash Plus for BIOS updates without requiring a CPU or memory, simplifying maintenance and updates.
- 3-Year Warranty: Comes with a 3-year warranty, providing reliability and support for long-term use.
