GIGABYTE B850M FORCE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: B850M FORCE WIFI6E
Key Features
- Supported CPU: AMD Socket AM5
- Form Factor: Micro ATX Form Factor
- Memory Max.: Up to 128 GB
- Ram Type: DDR5
| General Information | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Bluetooth | BT 5.3 |
| Bundled Software | Norton Internet Security (OEM version) |
| Controller | iTE I/O Controller Chip |

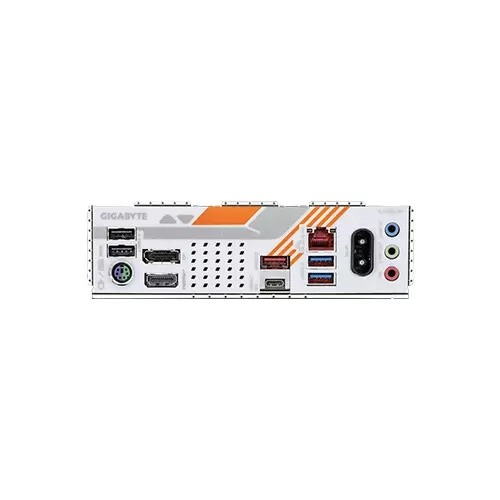

| External I/O Ports | 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (1T1R) 3 x audio jacks |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support forAMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Other Features | H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| Slots | Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| WiFi | MediaTek Wi-Fi 6E MT7902 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - Support for 11ax 160MHz wireless standard |
| Main Features | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD B850 |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors |
| Connector & ports | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Warranty Information | |
| Warranty | 3 Years |

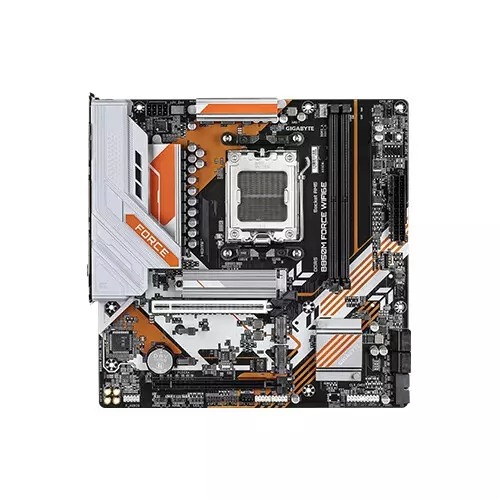

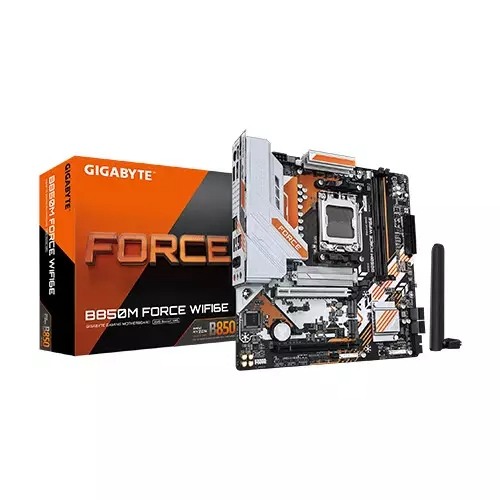

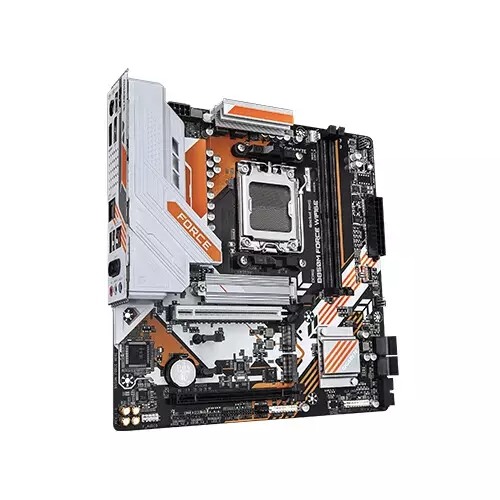

GIGABYTE B850M FORCE WIFI6E Motherboard
GIGABYTE B850M FORCE WIFI6E is a powerful and future-ready Micro ATX motherboard designed for AMD AM5 platforms. Built on the AMD B850 chipset, it fully supports AMD Ryzen 7000, 8000, and 9000 Series processors, delivering excellent performance, stability, and next-generation connectivity. With DDR5 memory support, PCIe 5.0 readiness, and Wi-Fi 6E, this motherboard is ideal for gamers, creators, and power users who want compact performance without compromise.
Processor & Chipset Support
Powered by the AMD B850 chipset, this motherboard supports the latest AMD Ryzen™ processors on the AM5 socket. It ensures long-term upgrade potential with advanced BIOS features, including a 256 Mbit AMI UEFI BIOS, Q-Flash, and Q-Flash Plus for easy BIOS updates without installing a CPU or memory.
Memory Performance
The board supports up to 128GB DDR5 memory across two DIMM slots with dual-channel architecture. With overclocking support up to DDR5 9600 MT/s (OC) and compatibility with AMD EXPO and XMP profiles, users can unlock maximum memory performance for demanding workloads and gaming.
Storage & Expansion
For storage, the GIGABYTE B850M FORCE WIFI6E offers three M.2 slots and four SATA 6Gb/s ports, supporting PCIe 5.0, 4.0, and RAID configurations. The primary PCIe x16 slot supports PCIe 5.0 (with Ryzen 7000/9000 CPUs), ensuring full bandwidth for modern GPUs. An additional PCIe 4.0 x4 slot provides extra expansion flexibility.
Graphics & Display Output
Integrated graphics support includes HDMI 2.1 with 4K@60Hz and DisplayPort 1.4 with up to 4K@144Hz output, making it suitable for high-resolution displays and smooth visuals, depending on CPU capability.
Connectivity & Networking
This motherboard features 2.5GbE LAN for fast wired networking and Wi-Fi 6E with Bluetooth 5.3, delivering ultra-low latency, higher bandwidth, and improved wireless stability. A wide range of USB ports, including USB 3.2 Gen 2 Type-A and USB-C, ensures excellent peripheral support.
Cooling, RGB & Reliability
Advanced hardware monitoring, multiple fan and pump headers, and extensive RGB lighting support (ARGB Gen2) allow users to build a cool, quiet, and visually stunning system. GIGABYTE Control Center makes system tuning simple and intuitive.
Buy Now GIGABYTE B850M FORCE WIFI6E from Ultra Technology
Upgrade your PC with cutting-edge performance and connectivity by choosing the GIGABYTE B850M FORCE WIFI6E AMD AM5 DDR5 Micro ATX Motherboard from Ultra Technology—your trusted source for genuine PC components.
