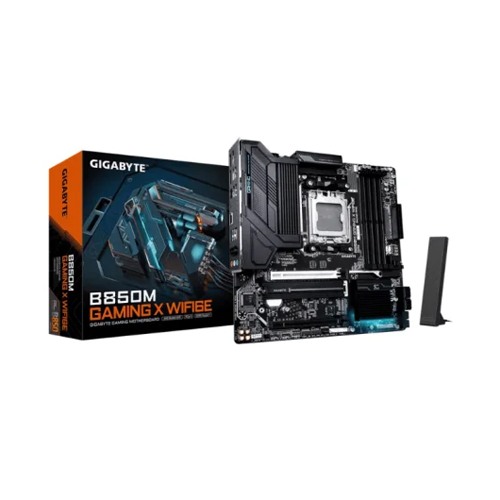

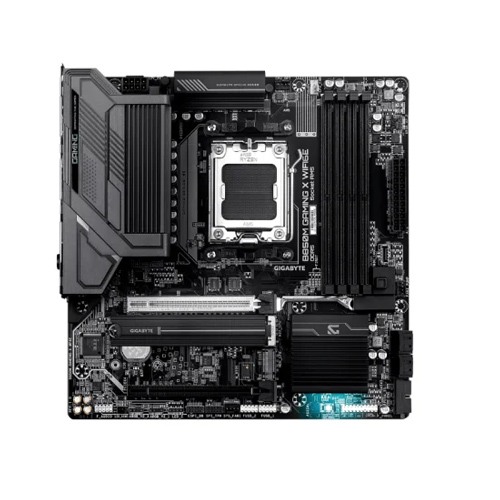

Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard

Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard
Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard
-16 %
Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard
Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard
Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard
Special Price: 30,500৳
Regular Price: 36,500৳
30,500৳
36,500৳
Ex Tax: 30,500৳
EMI starts at 10,695৳/month. View all 27 banks EMI plans >
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: B850M GAMING X WF6E

Key Features

    • Chipset: AMD B850
    • BIOS: 1 x 256 Mbit flash
    • Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
    • maximum resolution: 3840x2160@144 Hz
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.


- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card
is to be installed, be sure to install it in the PCIEX16 slot.
Wireless Communication module RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Wireless Communication module Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Main Features
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD B850
Memory Specifications
Supported Memory Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory
Profile (XMP) memory modules
Connector & ports
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI
V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
LAN Port (s) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type
25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type
25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
USB (s) CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
Warranty Information
Warrantty 3 years

Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard

Gigabyte B850M GAMING X WF6E AM5 Micro ATX Motherboard is a high-performance motherboard designed to support AMD Ryzen™ 9000, 8000, and 7000 series processors, making it an excellent choice for gamers and PC enthusiasts. Built on the AMD B850 chipset, this motherboard delivers superior speed, stability, and compatibility with the latest hardware. Equipped with four DDR5 DIMM slots, it supports up to 256GB of system memory with speeds up to 8200 MT/s (O.C.), ensuring seamless multitasking and high-speed performance. The PCIe 5.0 x16 slot provides high-bandwidth connectivity for modern GPUs, while the dual M.2 slots (PCIe 5.0 & 4.0 support) enhance storage options with ultra-fast NVMe SSD compatibility. For graphics, the motherboard features an integrated AMD Radeon™ Graphics processor, supporting HDMI 2.1 and DisplayPort 1.4 outputs with resolutions up to 4096x2160@60Hz and 3840x2160@144Hz, respectively. This ensures stunning visuals for gaming and professional applications. The Gigabyte B850M GAMING X WF6E includes Realtek® 2.5GbE LAN for ultra-fast wired networking and Wi-Fi 6E with Bluetooth 5.3, providing seamless wireless connectivity. The Realtek® Audio CODEC ensures high-definition audio with multi-channel support for an immersive sound experience. Connectivity options are extensive, featuring USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and USB 2.0 ports, along with RGB headers for customizable lighting. The motherboard also includes Smart Fan 6 technology, ensuring efficient cooling with multiple fan headers and water pump support With a Micro ATX form factor measuring 24.4cm x 24.4cm, this motherboard is perfect for compact gaming builds while offering extensive expandability. Backed by a 3-year warranty, the Gigabyte B850M GAMING X WF6E is a reliable and future-proof choice for gamers and power users alike.
