Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard

Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard
Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard
Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard
-21 %
Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard
Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard
Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard
Gigabyte GA-A320M-S2H AMD Micro ATX Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: Gigabyte
  • Model: GA-A320M-S2H
  • SKU: GA-A320M-S2H

Discontinued

Add to Wish List Compare this Product

Key Features

    • Model: GA-A320M-S2H
    • CPU: AMD Ryzen,
    • Chipset: AMD A320
    • Memory: 2 x DDR4, Max 32 GB
    • 3 x PCI Express slots
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

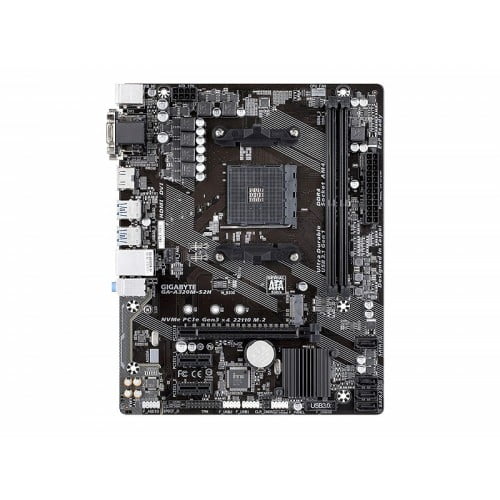

Gigabyte GA-A320M-S2H Motherboard
Basic Information
Supported CPU AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor
Chipset AMD A320
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 19.5cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.
Memory
Type Dual channel memory architecture
Slots 2 x DDR4 DIMM
Supported Memory Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules * Actual support may vary by CPU. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 32 GB
Graphics
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version.
Max Shared Memory 2 GB

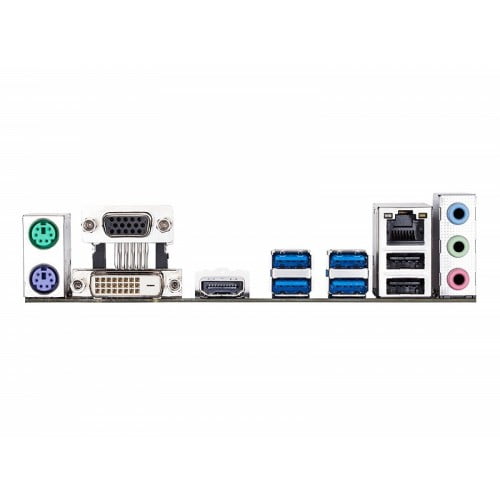

Connector & Ports
HDMI 1 x HDMI port
USB (s) Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
Audio Realtek® ALC887 codec High-Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
Warranty Information
Manufacturing Warranty 03 years

Gigabyte GA-A320M-S2H Motherboard

The Gigabyte GA-A320M-S2H Motherboard from Gigabyte. Designed for use with AMD CPUs using the AM4 socket, this motherboard utilizes the A520 chipset. Install up to 64GB of dual-channel DDR4 RAM across two slots, with speeds up to 5100 MHz supported when overclocking. Storage drives can be installed using four SATA III connectors or an M.2 slot. A graphics card can be installed using the PCIe 3.0 x16 slot, while two PCIe 3.0 x1 slots offer room for further expansion. A rear I/O panel sports four USB 3.2 Gen 1 and two USB 2.0 ports, as well as a PS/2 combo port for connecting a legacy mouse or keyboard. HDMI, DVI-D, and VGA outputs accommodate displays, while an RJ45 port supports Gigabit Ethernet. Three 3.5mm audio ports are also present on the rear panel. The Gigabyte A520M S2H AM4 Micro-ATX Motherboard utilizes the Realtek ALC887 audio codec and supports Windows 10 64-bit operating systems.
Gigabyte GA-A320M-S2H Motherboard AMD Micro ATX AM4 socket Ryzen series CPU supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support. Considering the graphics, Gigabyte GA-A320M-S2H Motherboard it will support maximum resolution of 4096x2160@24 Hz for HDMI and 1920x1200@60 Hz for D-Sub & DVI-D ports for Multiple Display. Gigabyte GA-A320M-S2H Motherboard use High Quality Audio Capacitors and Audio Noise Guard with Dual Channel Non-ECC Unbuffered DDR4 motherboard has Realtek® Gigabit LAN with cFos Speed Internet Accelerator Software, Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers and GIGABYTE™ UEFI BIOS.
