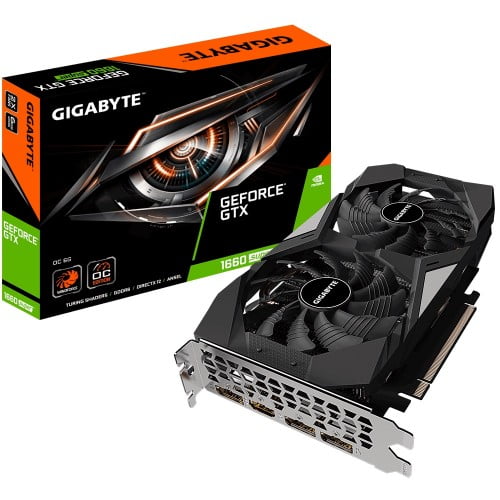

Gigabyte GeForce GTX 1660 Super OC 6G Graphics Card

Video Memory Specifications
Type	GDDR6
Size	6 GB
Resolution	7680x4320@60Hz
Core Clock	1830 MHz (Reference Card: 1785 MHz)
Memory Clock	14000 MHz
BUS Type	PCI-E 3.0 x 16
CUDA Cores	1408

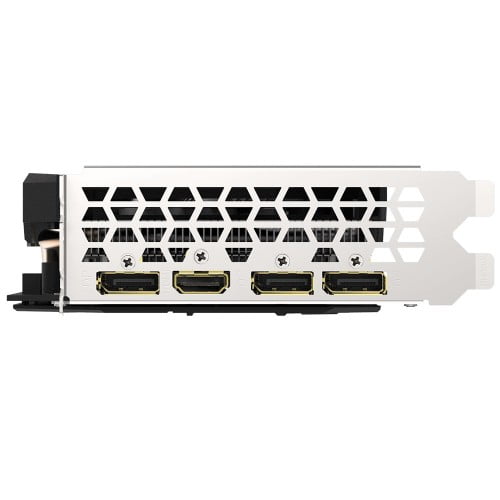

Interface
Display Port	DisplayPort 1.4 *3
HDMI	HDMI 2.0b *1
Power Specifications
Connectors	8 Pin*1
Recommended PSU	450W
Display Option
Multi Display	4
Application Programming Interfaces
DirectX	12
OpenGL	4.6
Physical Specifications
Dimensions	L=225.65 W=122.02 H=40.5 mm
Warranty
Manufacturing Warranty	2 Years

Gigabyte GeForce GTX 1660 Super OC 6G Graphics Card

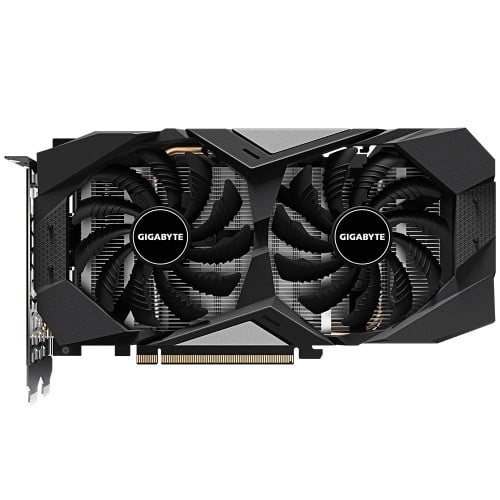

The Gigabyte GeForce GTX 1660 Super OC 6G Graphics Card, you'll be able to play your favorite PC games in Full HD 1080p resolution. Based on the Turing architecture, this Gigabyte GeForce GTX 1660 Super OC 6G Graphics Card provides improvements in performance, memory bandwidth, and power efficiency over its predecessor, the high-performance Pascal architecture. As opposed to the original GTX 1660, the GTX 1660 SUPER utilizes GDDR6 VRAM. The front panel of the Gigabyte GeForce GTX 1660 Super OC 6G Graphics Card features a variety of outputs, such as DisplayPort 1.4 and HDMI 2.0b, so you can connect to multiple external displays. This GeForce GTX 1660 Super OC 6G Graphics Card features Gigabyte's WINDFORCE 2X cooling system. The cooling system uses two 90mm fans. The airflow is split by the triangle fan edge and guided smoothly through the 3D stripe curve on the fan surface. The 3D Active Fan feature provides semi-passive cooling, which means the fans will remain off when the GeForce GTX 1660 Super OC 6G Graphics Card is under a set loading or temperature for low power gaming. Boosts the card's clock speed in real-time based on the target temperature. If the Gigabyte GeForce GTX 1660 Super OC 6G Graphics Card is running below the set target temperature, GeForce GTX 1660 Super OC 6G Graphics Card Boost 4.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences. With Ansel, gamers can compose the gameplay shots they want, pointing the camera in any direction and from any vantage point within a gaming world. They can capture screenshots at up to 32 times the screen resolution, and then zoom in where they choose without losing fidelity. With photo-filters, they can add effects in real-time before taking the shot. And they can capture 360-degree stereo photospheres for viewing in a VR headset or Google Cardboard. NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA-compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks. When used with a monitor that has G-SYNC hardware installed, the monitor's refresh rate will sync and lock with the graphics card's output frame rate. Establishing this sync removes tearing and stuttering which can result from conventional fixed screen refresh rates, especially important for gaming in stereoscopic 3D. An additional benefit of G-SYNC is reduced lag so gamers will benefit from the improved command response time as well.
