Gigabyte X570S AORUS MASTER AMD ATX Motherboard

Gigabyte X570S AORUS MASTER AMD ATX Motherboard
Gigabyte X570S AORUS MASTER AMD ATX Motherboard
Gigabyte X570S AORUS MASTER AMD ATX Motherboard
-12 %
Gigabyte X570S AORUS MASTER AMD ATX Motherboard
Gigabyte X570S AORUS MASTER AMD ATX Motherboard
Gigabyte X570S AORUS MASTER AMD ATX Motherboard
Gigabyte X570S AORUS MASTER AMD ATX Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: Gigabyte
  • Model: X570S-A
  • SKU: X570S-A

Discontinued

Add to Wish List Compare this Product

Key Features

    • Model: X570S AORUS MASTER
    • Dual Channel DDR4, 4 DIMMs
    • Intel WiFi 6E 802.11ax & BT 5.2
    • Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs
Slots 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Main Features
Audio Internal: 1 x front panel audio header Back Panel: 5 x audio jacks
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD X570
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors
Graphics Specifications
Graphics Memory Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only.
Memory Specifications
Maximum Memory 128 GB
Memory Type Dual-channel memory architecture
Connector & ports
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt add-in card connector 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS jumper Voltage Measurement Points
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMDRyzen 2000SeriesProcessors/AMDRyzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs

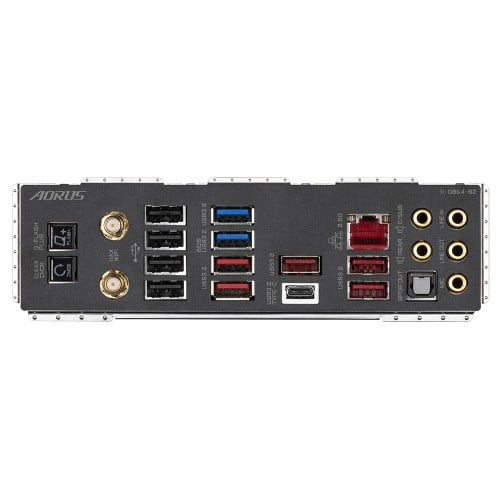

USB (s) CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia USB 3.2 Gen 2x2 Controller: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports, available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Warranty Information
Warranty 03 years

Gigabyte X570S AORUS MASTER AMD ATX Motherboard

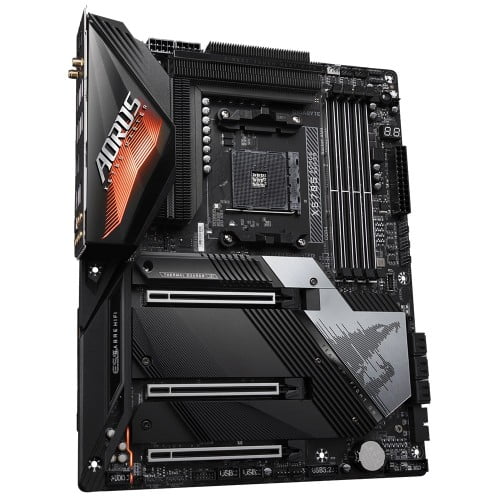

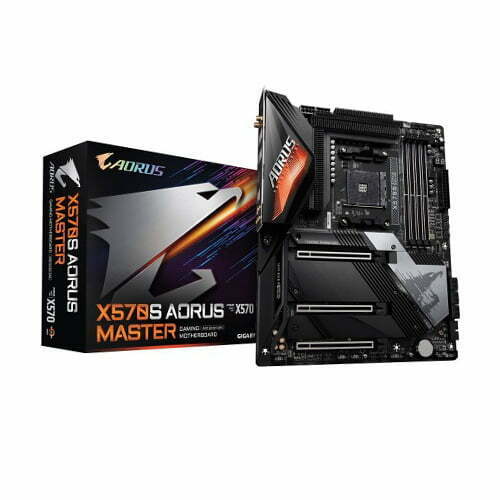

Gigabyte X570S AORUS MASTER AMD ATX Motherboard Supports AMD Ryzen 5000 Series/ Ryzen 4000 G Series/ Ryzen 3000 Series/ Ryzen 3000 G Series/ Ryzen 2000 Series/ Ryzen 2000 G Series Processors. It is based on AMD X570 Chipset. It has 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory. It supports Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings. It features Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage and Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate. The Gigabyte X570S AORUS MASTER is equipped with Intel WiFi 6E 802.11ax & BT 5.2 and Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. This motherboard is supported with Blazing Fast Intel 2.5GbE LAN with cFosSpeed. Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than the previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals.125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB, and WIMA Audio Capacitors. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips.
