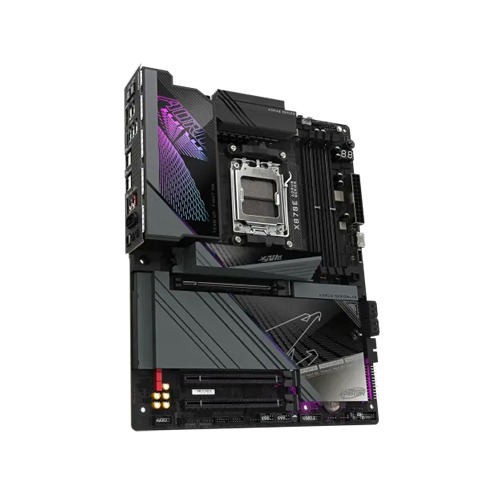

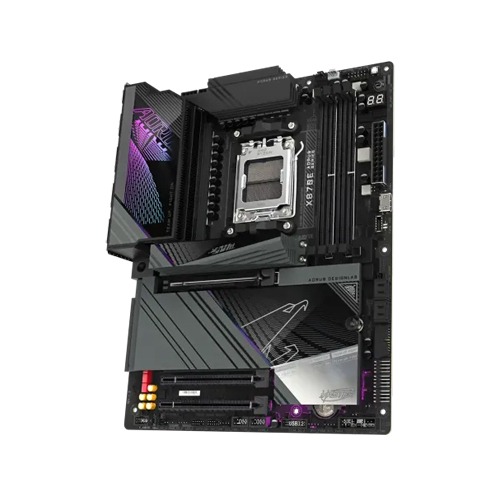

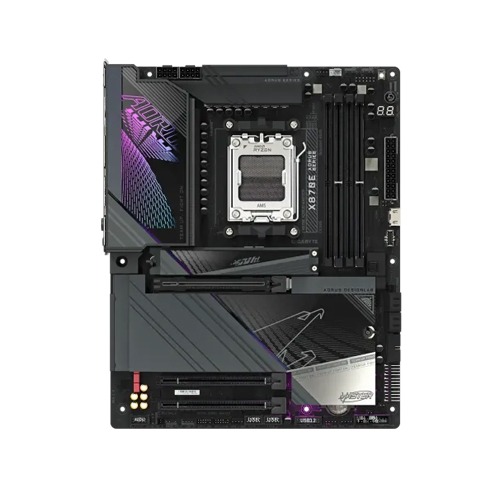

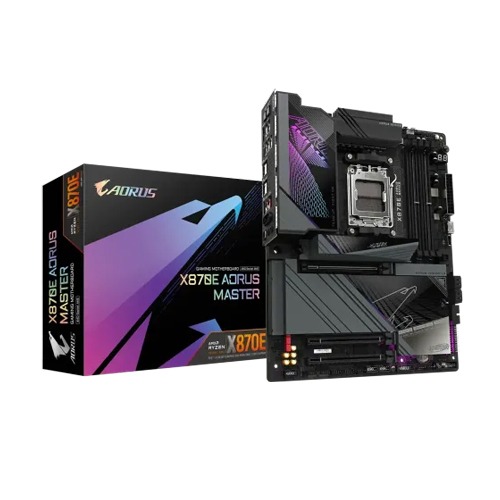

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard

Product ID: UT-11016
Customer rating: No reviews yet
Availability: In stock
Questions: 0 answered

1 / 5

All prices include VAT. 0% EMI from ৳6,208/mo on 29 banks.

Save ৳4,400 -6%৳74,500~~Was ৳78,900~~

Key features

Full specs

Supported CPURyzen 9000, 8000 & 7000 Series Processors for Socket AM5
Supported RAM4x DDR5, Max 256GB
Graphics Output2 x USB4 (USB Type-C), 1 x HDMI
FeaturesRealtek 5GbE LAN, Qualcomm Wi-Fi 7 QCNCM865

0% EMI on credit cards of 29 banks — ৳6,208/mo for 12 months.
Online price saves you ৳4,400 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandGigabyte341 productsBrowse all →

Specifications

Key Specifications

Processor Type	AMD
Socket	AM5
Chipset	AMD X870E
Form Factor	ATX

RAM Type	DDR5
Maximum Memory	256GB
Features	Wi-Fi, Bluetooth, M.2, RGB, USB Type-C, PCIe 5.0

Processor

Supported CPU	AMD Socket AM5, support for : AMD Ryzen 9000, 8000 & 7000 Series Processors

Memory

Memory	Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

Expansion & Storage

Expansion Slots

PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) Slots: 4 DIMMs

Storage

Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Graphics & Display

Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR

Display Outputs	1 x HDMI

Networking

LAN	Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Audio

Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out 2 x audio jacks

Ports & Connectors

USB

CPU+ASMedia USB4 controller: 2 x USB4 USB Type-C ports on the back panel CPU: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal Connectors

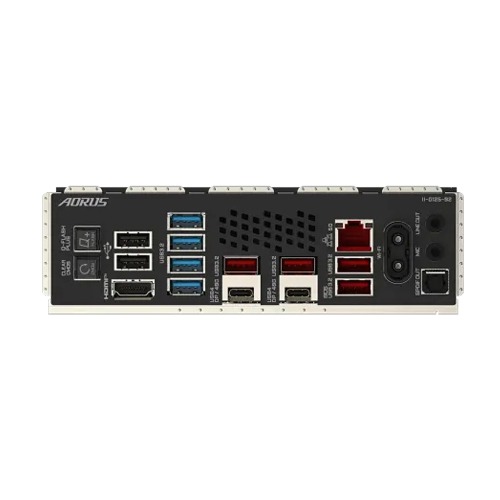

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points (Note) Actual support may vary by CPU. Back Panel Connectors 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPorts (Note)) 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU.

Other Features

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Special Features

TPM (Trusted Platform Module ): 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software

Warranty

Warranty	3 Years

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard

The GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard is designed for high-end performance and flexibility, making it an excellent choice for gaming and productivity builds. This motherboard supports AMD’s latest Ryzen 9000, 8000, and 7000 series processors via the AM5 socket, ensuring compatibility with the latest and future AMD chips. Powered by the AMD X870E chipset, it offers exceptional speed and stability, providing a robust foundation for your system.Equipped with 4 DIMM slots for DDR5 memory, the X870E AORUS MASTER supports memory speeds of up to 8600MHz (OC), delivering ultra-fast performance for demanding tasks. With a maximum supported memory of 256GB, this motherboard is perfect for professionals, gamers, and creators who require large memory capacities for multitasking or high-performance applications.The board features PCIe 5.0 x16 slots for high-speed graphics cards and other PCIe devices, ensuring fast data transfer rates for GPUs and NVMe SSDs. This enables smooth gaming experiences and quick load times for applications and files. The integrated Realtek ALC1220 audio codec supports high-definition audio with up to 7.1-channel sound, perfect for immersive audio during gaming or media consumption.For connectivity, the GIGABYTE X870E AORUS MASTER comes with multiple USB ports, including USB4 with DisplayPort support, and Wi-Fi 7 for the latest wireless speeds. Additionally, it supports RAID 0, 1, 5, and 10 configurations for NVMe SSDs, ensuring fast and reliable storage options.Built with premium components like aluminum heat sinks and tempered glass accents, this motherboard is durable and stylish. It also supports RGB lighting and GIGABYTE's Smart Backup and Q-Flash Plus for seamless BIOS updates. Whether you're building a high-performance workstation or a gaming rig, the GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard offers the power and reliability you need.

Features

AMD AM5 Socket: Supports AMD Ryzen 9000, 8000, and 7000 Series processors for high-performance computing.
AMD X870E Chipset: Offers robust power delivery and enhanced connectivity options for premium performance.
DDR5 Memory Support: Capable of supporting DDR5 speeds up to 8600 MHz (OC) and a total memory capacity of up to 256GB.
PCIe 5.0 & PCIe 4.0: Includes PCIe 5.0 x16 slots for cutting-edge graphics cards, and PCIe 4.0 slots for fast data transfer.
Integrated Wi-Fi 7: Next-gen Wi-Fi with support for 2.4/5/6 GHz bands, enabling high-speed wireless connectivity.
Realtek ALC1220 Audio: Delivers high-quality audio output with support for 7.1-channel sound and DSD audio.
Multiple USB Ports: Includes USB4 USB Type-C and USB 3.2 Gen 2x2 for lightning-fast data transfer.
M.2 & SATA Storage: Support for up to 4 M.2 slots and 4 SATA ports for ample and fast storage options.
RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10 support for both NVMe and SATA storage devices.
Premium Cooling: Advanced cooling options with multiple fan headers, customizable RGB lighting, and a solid build quality.

Buy GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard from Ultra Technology

Get the GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard from Ultra Technology for ৳74,500 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from Gigabyte, explore more Gigabyte AMD Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
