Gigabyte X870I AORUS PRO ICE DDR5 AMD AM5 ATX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: X870I AORUS PRO ICE
Key Features
- Supported CPU: AMD Socket AM5
- Form Factor: Mini-ITX Form Factor
- Memory Max.: supporting up to 128 GB
- Ram Type: DDR5
| General Information | |
| Audio | Realtek® ALC4080 CODEC High Definition Audio 2-channel |

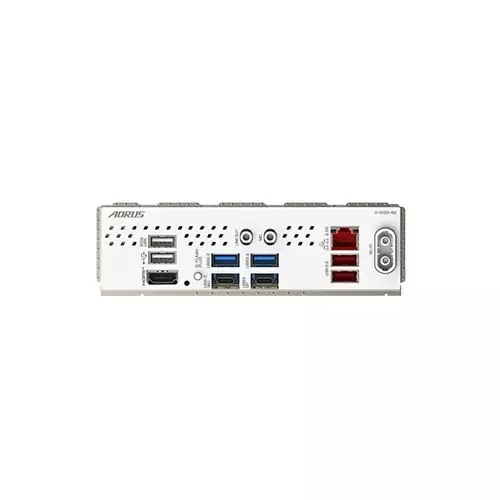

| Back Panel Connectors | 1 x Q-Flash Plus button 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jacks |
| Bios Information | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset Model | AMD X870 |
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| Expansion Slots | x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker header 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| USB | CPU+ASMedia USB4® controller: - 1 x USB4® USB Type-C® port on the back panel CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
| Warranty Information | |
| Warranty | 3 Years |
Gigabyte X870I AORUS PRO ICE Motherboard
Gigabyte X870I AORUS PRO ICE is a premium Mini-ITX motherboard designed for enthusiasts who want cutting-edge performance in a compact form factor. Built on the latest AMD X870 chipset, it fully supports AMD Ryzen™ 9000, 8000, and 7000 series processors, making it a future-ready choice for high-end gaming, content creation, and small-form-factor builds.
Processor & Chipset Support
Powered by the AMD X870 chipset and AM5 socket, this motherboard ensures stable performance and broad CPU compatibility. It is optimized for next-generation Ryzen processors, delivering enhanced efficiency, better power management, and advanced connectivity options suitable for modern workloads.
Memory Performance
The board supports DDR5 memory up to 8400 MT/s (OC) with dual-channel architecture. With two DIMM slots supporting up to 128GB, users can enjoy ultra-fast memory speeds for multitasking, gaming, and professional applications. Compatibility with AMD EXPO™ and XMP profiles makes memory overclocking simple and reliable.
Graphics & Display Connectivity
With integrated AMD Radeon™ Graphics support, the X870I AORUS PRO ICE offers versatile display options. It includes USB4 Type-C with DisplayPort 1.4, supporting up to 4K@240Hz, and an HDMI 2.1 port supporting 4K@60Hz with HDR. This makes it ideal for high-refresh-rate monitors and modern display setups.
Expansion & Storage
Despite its Mini-ITX size, this motherboard delivers impressive expansion capabilities. It features a PCIe 5.0 x16 slot for next-gen graphics cards and dual M.2 slots, including one PCIe 5.0 and one PCIe 4.0, ensuring blazing-fast SSD performance. Additional SATA 6Gb/s ports and RAID support provide flexible storage configurations.
Networking & Audio
Equipped with Realtek 2.5GbE LAN and Wi-Fi 7 with Bluetooth 5.4, the board ensures ultra-fast and stable connectivity. The Realtek ALC4080 audio codec delivers high-definition, crystal-clear sound suitable for gaming and media consumption.
Cooling, BIOS & Features
Advanced hardware monitoring, multiple fan headers, RGB Gen2 support, and Q-Flash Plus make system tuning and maintenance effortless. The UEFI BIOS and GIGABYTE Control Center provide user-friendly control over system performance and updates.
Buy Now – Gigabyte X870I AORUS PRO ICE from Ultra Technology
Upgrade your compact PC build today with the Gigabyte X870I AORUS PRO ICE, available now at Ultra Technology for reliable performance and authentic products.
