Summary |
Product Name
Features

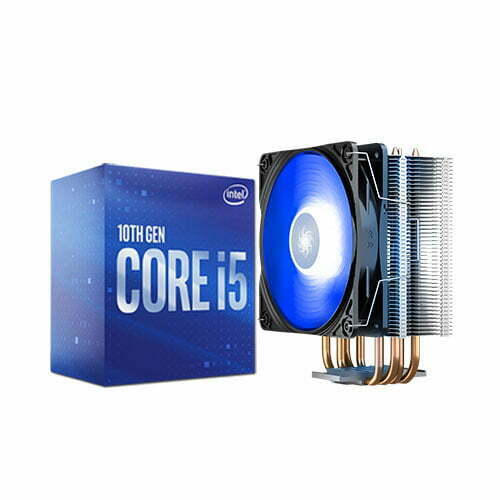

Intel Core i5 10400 10th Gen Processor
Clock Speed:2.90 GHz Up To 4.30 GHz
Cores-6 & Threads-12
12 MB SmartCache
Intel UHD Graphics 630
DEEPCOOL GAMMAXX 400 V2 CPU Cooler
Absorb CPU Heat More Efficiently
Heat Sink’s Larger Surface Area
120mm PWM Fan
The Fan Includes 4 Blue LED Lighting
.. |
MSI MAG B550M Mortar Motherboard
SPECIFICATIONS
Supported CPU
Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
Chipset
AMD B550 Chipset
Form Factor
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
PCI
1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode
2x PCIe 3.0 x1 slots
M.2 Socket
2x M.2 slots (Key M)
M2_1 slot (from AMD processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Memory Type
Dual channel memory architecture
Slots
4 x DDR4 memory slots
Supported Memory
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Mamory
128GB
Graphics
1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Supports 2-Way AMD CrossFire Technology
Max Shared Memory
16 GB
HDMI
1x HDMI maximum resolution of 4096x2160 @24Hz
Display Port (s)
1x DisplayPort maximum resolution of 4096x2160 @60Hz
USB (s)
AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)
1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage
AMD B550 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Audio
Realtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O Ports
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper
Manufacturing Warranty
03 Years Warranty
DESCRIPTIONS
MSI MAG B550M Mortar Motherboard
MSI MAG B550M Mortar Motherboard was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. The world’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
https://youtu.be/HidVddtu6Zs
[ninja_tables id="47263"].. |
Key Features
Type
DDR4
Capacity
16 GB
Frequency
3200Mhz
Operating voltage
1.35V
Warranty Information
Warranty
Lifetime
VISUALIZE, SYNCHRONIZE, MEMORIZE.
VENGEANCE RGB PRO Series DDR4 overclocked memory lights up your PC with mesmerizing dynamic multi-zone RGB lighting, while delivering the best in DDR4 performance
NEXT GENERATION SOFTWARE
Powerful CORSAIR iCUE software brings your system to life with dynamic RGB lighting control, synchronized across all your iCUE compatible products, including memory, fans, RGB LED light strips, keyboards, mice and more.
Customize dozens of preset lighting profiles, experiment with a huge variety of user-adjustable colors and adjust LED brightness to perfectly match your system.
MAXIMUM BANDWIDTH AND TIGHT RESPONSE TIMES
Optimized for peak performance on the latest Intel and AMD DDR4 motherboards.
Visit Ultratech for more updated prices in BD and follow us on Facebook for regular Offers... |
Key Features
Efficiency (Approx.)
90% @ Typical Load
Certification
80 PLUS Gold certification,
Fan Size
120mm
Others
FAN Bearing: HDB
FAN Speed: 1500 RPM
ATX Version: ATX 12V
Active PFC
Dimensions (L X W X H): 160 x 150 x 86 mm
Noise Level @ 20%: 0 dBA
Noise Level @ 50%: 17.8 dBA
Noise Level @ 100%: 25.9 dBA
ERP 2014 LOT 3
Operating Temperature: 0-50°C
HOLD UP TIME: >16ms at 100% Load
MTBF: >100,000 Hours
PROTECTIONS: OVP, OPP, OTP, SCP, OCP, UVP
REGULATORY: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI
Wattage: Above 750W
Input
Voltage
90-264V
Frequency Range
47-63Hz
Current
12-6A
Output
Modular Type
Full Modular
Total Power
80 PLUS Gold power
Power Good Signal: 100 - 150 ms
Connector
Main Power
EPS 4+4 PIN CONNECTORS x 1
EPS 8 PIN CONNECTOR x 1
CPU
ATX 24-PIN CONNECTORS x 1
PCI-E
PCI-E 6+2 PIN CONNECTORS x 4
SATA
12
Warranty Information
Manufacturing Warranty
05 years warranty
Cooler Master 850W 80 Plus Gold Power Supply
The MWE Gold 850 V2 power supply improves upon the original version in the places where users will see the most immediate benefit. The 80 PLUS Gold V2 delivers an 80 PLUS Gold certification with guaranteeing a typical minimum efficiency of 90%. This new V2 models comes with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. This latest MWE Gold - V2 power supply has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience. In this power supply, It had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. The user will be able to push their power supply to 50 degrees Celsius safely With this model. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat. This latest power supply comes with a set of flat black cables, you can customized it. Here, the unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system's overall cooling. The Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system. This latest MWE Gold 850 V2 power supply comes with 05 years warranty.
