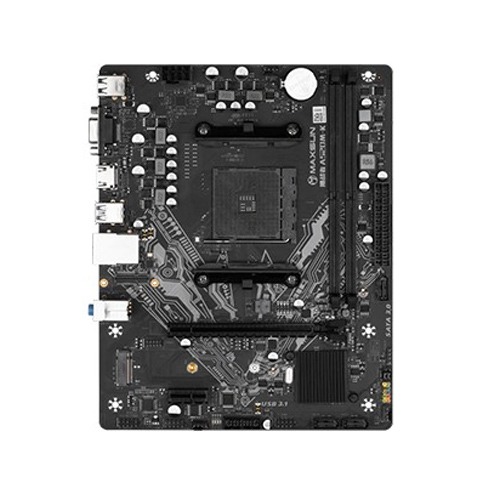

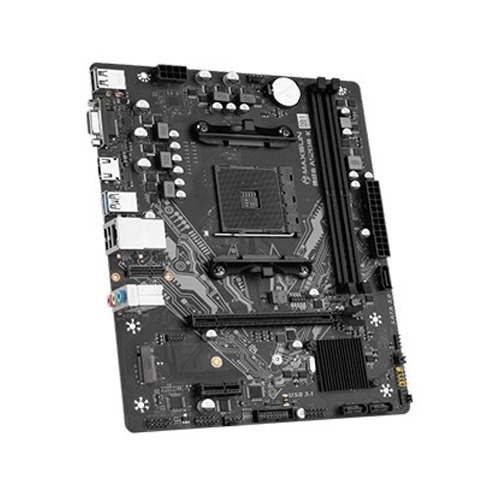

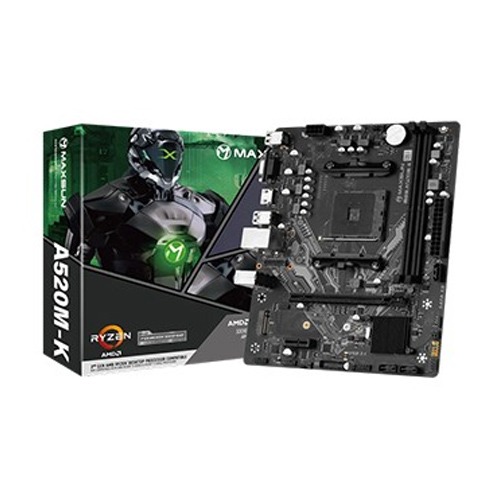

Maxsun Challenger A520M-K AM4 5th Gen Motherboard
TBA
- Stock: Out Of Stock
- Brand: Maxsun
- Model: Challenger A520M-K
Out Of Stock
Key Features
- FORM FACTOR: M-ATX
- CHIPSET: AMD A520 Chipset
- LED FEATURE: Without Debug LED
- LAN: Realtek RTL8111H 1G LAN
| General Information | |
| Chipset Manufacturer | AMD A520 Chipset |
| Audio | Realtek ALC897 Codec 5.1-Channel High Definition Audio |
| CPU Socket | AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors |
| LAN | Realtek RTL8111H 1G LAN |
| LED Indicators | Without Debug LED |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports AMD A-XMP OC |
| MULTI-GPU | 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI port *HDMI port supports up to 4K 30Hz *Graphics specifications may vary between CPU types. |
| Storage | M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 3x SATA 6Gb/s ports |
| Supported OS | Support for Windows 11 64-bit, Windows 10 64-bit |
| Other Features | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Main Features | |
| Form Factor | M-ATX: 220mm x 180mm |
| Connector & ports | |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS |

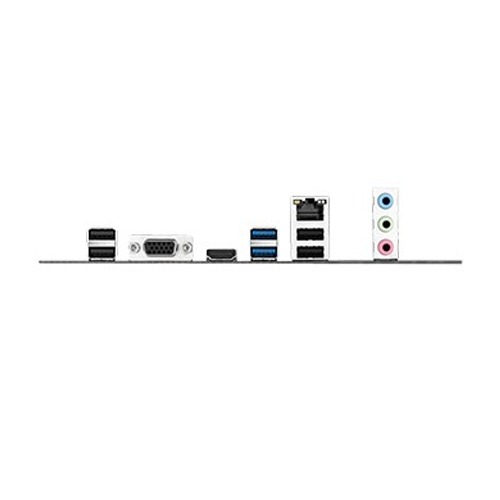

| USB (s) | *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0 |
| Physical Specification | |
| Expansion Slots | 1x PCIe 3.0 x16 slot 1x PCIe 3.0 x1 slot |
| Warranty Information | |
| Warranty | 3 Years |
Maxsun Challenger A520M-K AM4 5th Gen Motherboard
Maxsun Challenger A520M-K AM4 5th Gen Motherboard is a feature-packed yet affordable motherboard designed to deliver exceptional performance for AMD Ryzen processors. Built with the AMD A520 chipset, this motherboard supports a wide range of CPUs, including AMD Ryzen 5000, 4000 G-Series, and 3000 series processors. Its AMD AM4 socket ensures compatibility with some of the most powerful processors available, making it an excellent choice for gaming, productivity, and everyday computing.This motherboard supports up to 64GB of DDR4 memory across its two DIMM slots, with speeds reaching up to 3200MHz (OC). It also supports AMD A-XMP for overclocking, enabling users to unlock the full potential of their memory modules. For storage, the A520M-K features a PCIe 4.0 M.2 slot, ensuring blazing-fast data transfer speeds, along with three SATA 6Gb/s ports for additional storage options.In terms of graphics, the motherboard comes equipped with both VGA and HDMI ports. The HDMI port supports resolutions up to 4K at 30Hz, providing excellent display quality for both gaming and productivity. Audio is handled by the Realtek ALC897 codec, which supports 5.1-channel high-definition sound, delivering immersive audio experiences.For connectivity, the motherboard includes 1G Realtek RTL8111H LAN, ensuring a reliable and fast internet connection. The rear I/O panel offers six USB ports (2x USB 3.2 Gen1 and 4x USB 2.0), while the internal headers provide options for additional USB expansion.With a Micro ATX form factor, the Maxsun Challenger A520M-K is compact yet efficient, making it suitable for smaller PC builds without sacrificing performance. Additional features include support for RAID configurations (RAID 0, 1, 5, 10) and three years of warranty for peace of mind. This motherboard is ideal for budget-conscious users who demand robust performance, reliable connectivity, and essential features for their AMD Ryzen systems.
Features
- Processor Support: Compatible with AMD Ryzen 5000, 4000 G-Series, and 3000 series processors on an AM4 socket.
- Chipset: Powered by the AMD A520 chipset for reliable performance.
- Memory: Supports up to 64GB of DDR4 RAM, with speeds of up to 3200MHz (OC) and AMD A-XMP for memory overclocking.
- Storage: Equipped with one PCIe 4.0 M.2 slot and three SATA 6Gb/s ports for high-speed storage.
- Graphics Output: Features HDMI (4K@30Hz) and VGA ports for flexible display connectivity.
- Audio: Integrated Realtek ALC897 codec for 5.1-channel high-definition audio.
- Connectivity: Includes 1G Realtek RTL8111H LAN for stable and fast internet access.
- Expansion Slots: One PCIe 3.0 x16 slot and one PCIe 3.0 x1 slot for additional cards.
- Form Factor: Compact Micro ATX design, measuring 220mm x 180mm.
- Warranty: Backed by a 3-year warranty for dependable service.
