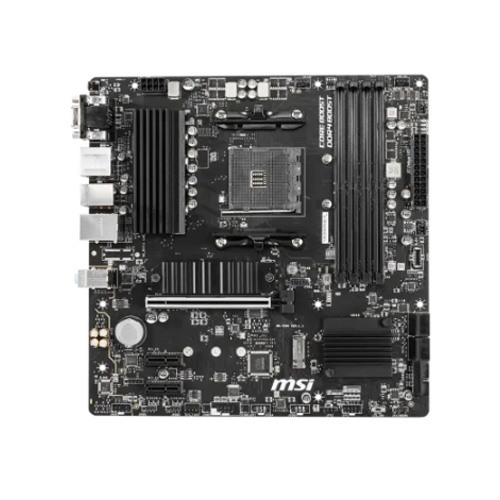

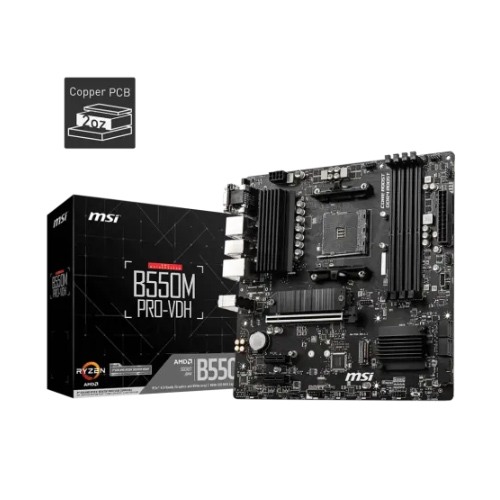

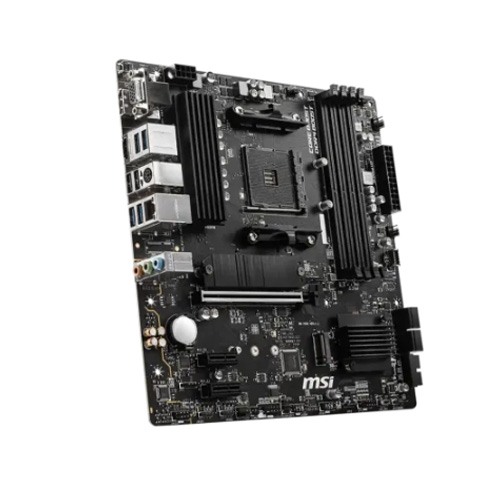

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
-19 %
MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
Special Price:
14,200৳
Regular Price:
17,500৳
- Stock: In Stock
- Brand: MSI
- Model: B550M Pro-VDH
Key Features
- Supports AMD Ryzen 5000 & 3000 Series Processors
- PCB with 2OZ Thickened Copper
- Supports DDR4 Memory, up to 4400(OC) MHz
- PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
| General Information | |
| Type | Dual-channel memory architecture |
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
| Display Port (s) | 1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
| M.2 Socket | 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots |
| Slots | 4x DDR4 memory slots |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
| Main Features | |
| Chipset | AMD B550 |
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
| Connector & ports | |
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
| LAN Port (s) | 1x Realtek 8111HN Gigabit LAN controller |
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Warranty Information | |
| Warrantty | 03 Years Warranty |
MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard is designed to deliver powerful performance and versatility, making it an excellent choice for gamers, content creators, and professionals. Built with AMD’s B550 chipset, this motherboard supports AMD Ryzen 5000 & 3000 Series desktop processors (except Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors, ensuring compatibility with high-performance CPUs With a Micro-ATX form factor measuring 9.6 x 9.6 inches, the MSI B550M Pro-VDH fits into most mid-size PC cases while providing extensive connectivity and expansion options. It features one PCIe 4.0/3.0 x16 slot for high-speed GPUs and two PCIe 3.0 x1 slots for additional expansion cards. Storage options are also impressive, with two M.2 slots supporting PCIe 4.0/3.0 and four SATA 6Gb/s ports, ensuring fast data transfer and high storage capacity. The motherboard supports up to 128GB of DDR4 RAM across four slots, with speeds reaching 4400+ MHz (OC mode), making it ideal for demanding applications and gaming. For graphics output, it includes one VGA port, one HDMI 2.1 port, and one DisplayPort, supporting resolutions up to 4096x2160 @60Hz. Connectivity is seamless with Realtek 8111HN Gigabit LAN, multiple USB 3.2 Gen 1 ports, and onboard 7.1-channel HD audio with Realtek ALC892 codec for an immersive sound experience. The board also features RGB and RAINBOW LED connectors, allowing for customizable lighting setups With MSI’s premium build quality, advanced cooling solutions, and a 3-year warranty, the B550M Pro-VDH is reliable, high-performance motherboard that delivers excellent value for PC builders.
