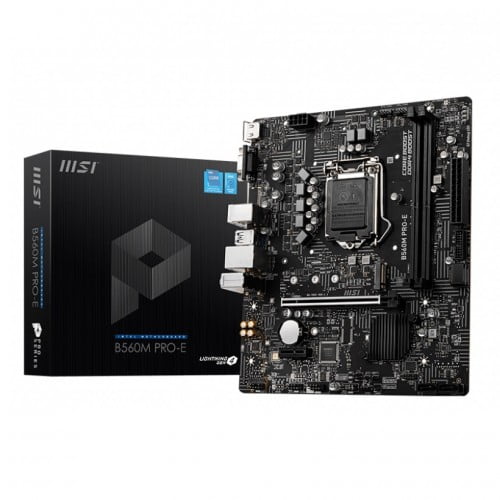

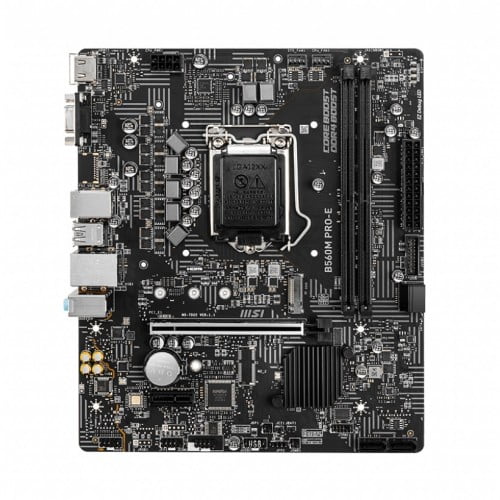

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
-11 %
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
Based on 0 reviews. - Write a review
10,200৳
11,500৳
Ex Tax: 10,200৳
EMI starts at 3,577৳/month. View all 25 banks EMI plans >
  • Stock: In Stock
  • Brand: MSI
  • Model: B560M-GM
  • SKU: B560M-GM
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Key Features

    • Model: B560M PRO-E
    • Socket: LGA 1200, Form Factor: Micro ATX
    • Supports DDR4, up to 4800(OC) MHz
    • PCIe 4.0, Lightning Gen3 x4
View more details
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio 1x Front panel audio connector
BIOS 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
Chipset Intel B560 chipset
Form Factor mATX Form Factor 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)
Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200
Graphics Specifications
Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
Memory Specifications
Maximum Memory Up to 64GB
Memory Type DDR4
Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Connector & ports
HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper
LAN Port (s) 1x Intel I219V 1Gbps LAN controller
Supported Storage 4x SATA 6Gb/s ports (From B560 Chipset) 1x M.2 slot (Key M) M2_1 slot (From B560 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices

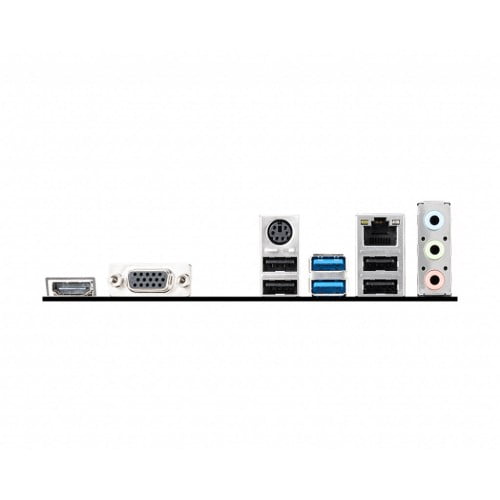

USB (s) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)
Generel information
M.2 Socket 1x M.2 slot (Key M)
PCI 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 1x PCIe 3.0 x1 slots (From B560 chipset)
Slots 2x DDR4 memory slots
VGA (s) 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
Warranty Information
Warranty 03 years

MSI B560M PRO-E Motherboard

MSI B560M PRO-E Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800(OC) MHz. This motherboard features Core Boost With a premium layout and digital power design to support more cores and provide better performance. Here used Advanced technology to deliver pure data signals for the best performance and stability. This motherboard has PCIe 4.0, Lightning Gen3 x4 M.2 with M.2 Shield Frozr that provides you Lightning Fast Experience. By 2.5G LAN, you can Upgrade network solution for professional and multimedia use that delivers a secure, stable and fast network connection. Here, Audio Boost rewards your ears with studio-grade sound quality. This motherboard has Steel Armor that Protects VGA cards against bending for better performance, stability, and strength. This latest MSI PRO series motherboards are designed for professional and satisfy workflow.

Write a review

Note: HTML is not translated!
Bad Good

What is the MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard price in bd 2024?

The MSI B560M-GM PC Components price in BD is 10,200৳. In today's market on 19-04-2024. Ultra Technology offers you the lowest price of MSI B560M-GM PC Components: 10,200৳ instead of 11,500৳ regular price. Besides, You can buy this product on EMI 3,577৳/month total of 10,730৳ for 3 months EMI Plan, Up to 36-month EMI plans available through 25 banks. The MSI B560M-GM PC Components is In Stock now in our store (Call us to know about details of this product). 13 customer buy this product From 2691 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order MSI B560M-GM online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
