MSI B650M GAMING PLUS WIFI AM5 Motherboard

MSI B650M GAMING PLUS WIFI AM5 Motherboard
MSI B650M GAMING PLUS WIFI AM5 Motherboard
MSI B650M GAMING PLUS WIFI AM5 Motherboard
-10 %
MSI B650M GAMING PLUS WIFI AM5 Motherboard
MSI B650M GAMING PLUS WIFI AM5 Motherboard
MSI B650M GAMING PLUS WIFI AM5 Motherboard
MSI B650M GAMING PLUS WIFI AM5 Motherboard
21,200৳
23,500৳
Ex Tax: 21,200৳
EMI starts at 7,434৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: MSI
  • Model: B650M GAMING Plus WIFI

Key Features

  • Supports AMD Ryzen™ 8000/ 7000 Series
  • 4x DDR5 UDIMM, Memory Capacity 256GB
  • Graphics Output: 1x HDM, 1x Display
  • Features: 2.5G LAN with Wi-Fi 6E Solution
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Chipset AMD B650
Form Factor mATX
243.84mmx243.84mm
Supported CPU Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
General Information
Type DDR5
Display Port (s) 1x DisplayPort
Graphic Support HDMI 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, the maximum resolution of 4K 60Hz
PCI 1x PCI-E x16 slot
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices
Slots 4x UDIMM
TPM (Trusted Platform Module 1x TPM pin header(Support TPM 2.0)
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3
Memory Specifications
Maximum Memory 256GB
Supported Memory Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

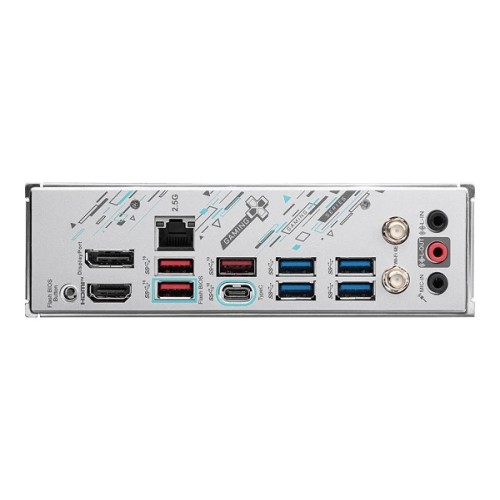

Connector & ports
HDMI 1x HDMI
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
Warranty Information
Warranty 3 Years

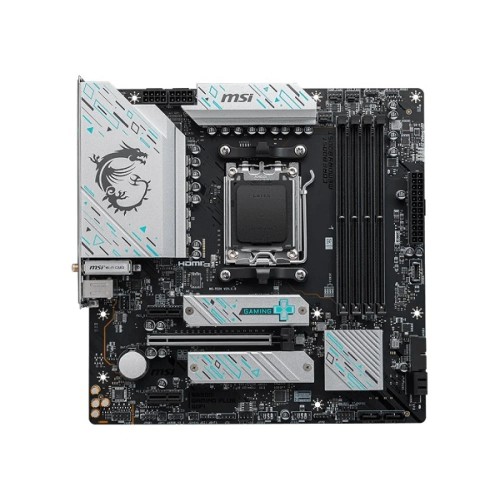

MSI B650M GAMING PLUS WIFI AM5 Motherboard

MSI B650M GAMING PLUS WIFI AM5 Motherboard is a high-performance micro-ATX motherboard designed for gamers and PC enthusiasts. It supports AMD Ryzen™ 8000 and 7000 Series Desktop Processors using the AM5 socket, providing compatibility with cutting-edge CPU technology. The board features four DDR5 memory slots, allowing up to 256GB of RAM with overclocking capabilities up to 7200+ MHz. Connectivity options are robust, including a variety of USB ports such as USB 3.2 Gen 2 (10Gbps) Type-A and Type-C, as well as USB 3.2 Gen 1 (5Gbps) Type-A. Display outputs include HDMI 2.1 and DisplayPort 1.4, both supporting 4K resolution at 60Hz. For networking, the motherboard includes a 2.5G LAN port and integrated AMD Wi-Fi 6E, supporting the latest wireless standards and Bluetooth® 5.3. Storage support is versatile, with two M.2 slots supporting PCIe 4.0 x4 and four SATA 6G ports, accommodating a variety of SSD and HDD configurations. The motherboard also supports RAID 0, RAID 1, and RAID 10 for SATA devices, and RAID 0 and RAID 1 for M.2 NVMe drives. The audio is powered by the Realtek® ALC897 Codec, providing 7.1-Channel High Definition Audio. Additionally, the board features several internal I/O ports, including connectors for RGB lighting, fans, and other peripherals. The board also includes a Flash BIOS Button for easy BIOS updates, making it a comprehensive and future-proof option for building a high-performance gaming PC.
