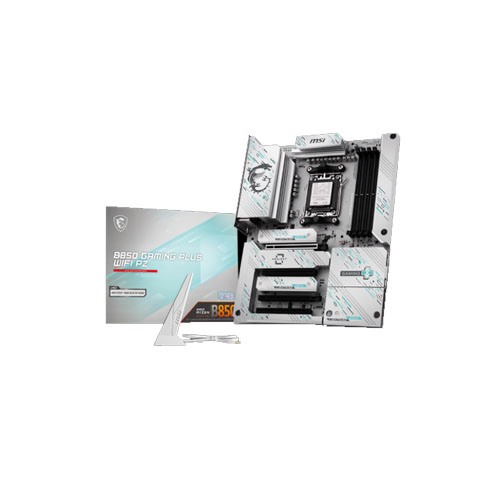

MSI B850 GAMING PLUS WIFI PZ Motherboard
- Stock: In Stock
- Brand: MSI
- Model: B850 GAMING PLUS WIFI PZ
Key Features
- Memory Support: 4 DIMMs, Dual Channel DDR5 - 8200+ MT/s (OC)
- Chipset: AMD B850 Chipset
- CPU Socket: AMD Socket AM5
- CPU Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
| Main Features | |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
| Chipset | AMD B850 |
| Supported CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| General Information | |
| Graphic | 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz* |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| LAN | Realtek® 8126VB 5G LAN |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Operating System | Support for Windows® 11 64-bit |
| Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/8300 Series processors) |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) |
| Wireless & Bluetooth | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
MSI B850 GAMING PLUS WIFI PZ Motherboard
The MSI B850 GAMING PLUS WIFI PZ Motherboard is designed for gamers, creators, and PC enthusiasts who want exceptional performance without compromising stability. Packed with advanced connectivity, future-ready hardware support, and gaming-optimized features, this motherboard delivers everything a modern system builder.
CPU and Memory Support
One of the strongest advantages of this motherboard is its support for the latest Intel processors. With an LGA socket designed for new-generation CPUs, users can experience excellent single-core and multi-core performance. This ensures smooth gameplay, fast rendering, and powerful multitasking.The motherboard supports high-speed DDR5 memory. Gamers and professionals can install large capacities of RAM and enjoy faster loading times, improved system responsiveness, and better performance in memory-intensive applications. The combination of next-gen CPU capability and cutting-edge memory technology makes this board an ideal choice for performance-focused builds.
Connectivity and Expansion Options
Connectivity is one of the key strengths of the MSI B850 GAMING PLUS WIFI PZ Motherboard. It includes a variety of ports and expansion slots that make it suitable for all kinds of users.
Key Connectivity Features:
- Built-in Wi-Fi 6/6E or higher, ensuring stable internet performance
- High-speed USB Type-C and multiple USB 3.2 ports
- PCIe expansion slots for powerful graphics cards
- M.2 slots for ultra-fast NVMe SSDs
- LAN port for wired internet enthusiasts
Audio and Networking Capabilities
A great gaming experience isn't just about graphics—it’s also about sound and network performance. This motherboard incorporates premium audio components that deliver clean, immersive sound quality. Whether you’re gaming, editing videos, or listening to music, the onboard audio system offers impressive clarity. On the networking side, the latest Wi-Fi technology provides high-speed wireless connectivity with low latency. For competitive gaming, the stable and fast connection helps minimize lag and ensures smooth online gameplay.
Why the MSI B850 GAMING PLUS WIFI PZ Motherboard Is Worth Buying
There are many motherboards available in the market, but this model stands out for its excellent feature set, durable build, and optimized performance. Whether you’re building a gaming PC, a streaming setup, or a workstation, it offers an impressive balance of functionality and value.
Some of the reasons to choose this motherboard include:
- Support for the latest Intel processor generations
- High-speed DDR5 memory compatibility
- Robust cooling and power efficiency
- Strong networking options with Wi-Fi and LAN
- Future-ready PCIe and M.2 support
