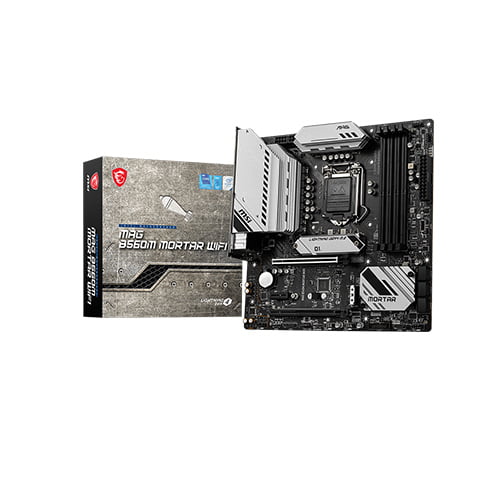

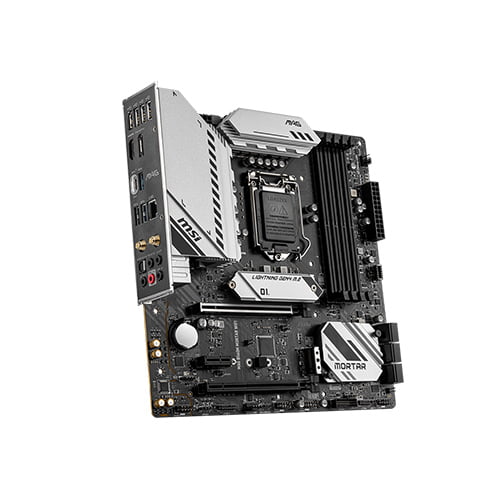

MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard

MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
-23 %
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: MSI
  • Model: MAG-B560M-M
  • SKU: MAG-B560M-M

Discontinued

Add to Wish List Compare this Product

Key Features

    • Socket 1200
    • Intel B560 Chipset
    • Micro-ATX Form Factor
    • DDR4 (max 128GB, 4 slots)
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR4
Display Port (s) 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
M.2 Socket 2x M.2 slots (Key M)
PCI 2x PCIe x16 slots Support x16/ x4-PCI E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU-PCI E3 (From B560 chipset) Support up to PCIe 3.0 1x PCIe 3.0 x1 slot PCI E2 (From B560 chipset) PCI E3 will be unavailable when installing M.2 SSD in M2 2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI E3 and set x2 for M2 2 in BIOS.
Slots 4 x DIMM slots
Wireless Communication module Intel WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax,Supports Bluetooth 5.2, FIPS, FISMA
Main Features
Audio 1x Front panel audio connector
Chipset Intel B560 Chipset
Form Factor Micro ATX Form Factor
Supported CPU Supports 10th, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors for LGA1200 socket
Graphics Specifications
Graphics Memory 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology
Memory Specifications
Maximum Memory Up to 128GB
Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory,Supports Intel Extreme Memory Profile (XMP)

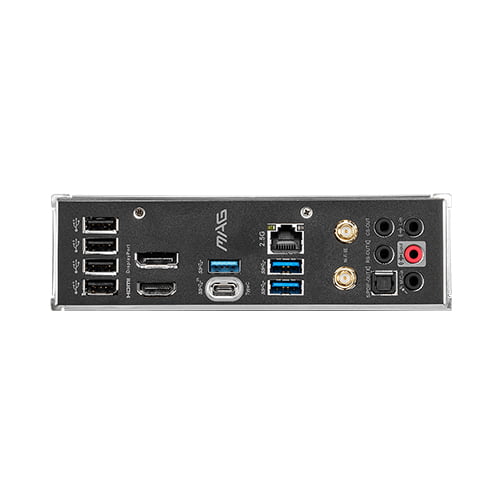

Connector & ports
HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector,1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper,1x Tuning Controller Connector,1x TBT connector (Supports RTD3)
LAN Port (s) 1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage 6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M)-M2 slot 1: Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset),Supports 2242/ 2260/ 2280 storage devices-M2 slot 2 (From B560 chipset): Supports up to PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready
USB (s) Intel B560 Chipset: 1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector 4x USB 2.0 ports on the back panel USB Hubs ASM1074: 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel Hub-GL850G: 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Warranty Information
Warranty 03 years

MSI MAG B560M MORTAR WIFI Motherboard

MSI MAG B560M MORTAR WIFI Motherboard comes with MSI lightning Gen 4 PCI-E which is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. It supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors (socket LGA1200). With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. It features a 2.5G LAN and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO, and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps. This motherboard supports 2x PCIe x16 slots and supports up to PCIe 3.0. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting an MSI AI ENGINE. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN.
