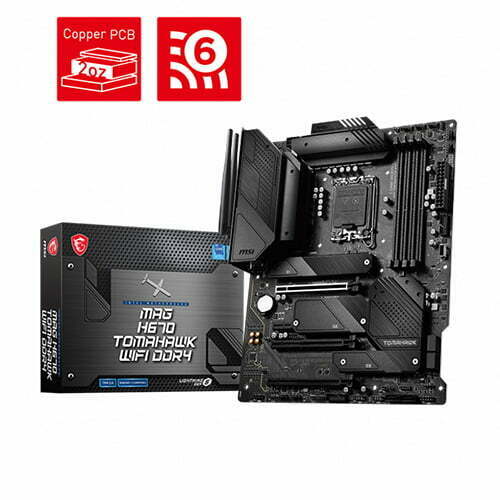

MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard

MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard
MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard
MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard
-9 %
MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard
MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard
MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard
MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard
Special Offer Ends In:
Day
Hour
Min
Sec
22,800৳
24,970৳
Ex Tax: 22,800৳
EMI starts at 7,995৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: MSI
  • Model: Model

Key Features

    • Triple M.2 with M.2 Shield Frozr
    • Lightning Gen 5
    • Maximum transfer speed
    • Extended Heatsink Design
    • 2.5G Network Solution
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Dimensions ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
EXPANSION SLOT 3x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 5.0 x16 PCI_E3 & PCI_E4 (From H670 chipset) Support PCIe 3.0 x4 & 3.0 x1 1x PCIe 3.0 x1 slot (Fom H670 chipset)
INTERNAL CONNECTORS 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)
Memory 4x DDR4 memory slots, support up to 128GB1 Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz
Processor Supports 12th Gen Intel® Core™ Processors1 Processor socket LGA1700
Storage 6x SATA 6Gb/s ports (From H670 chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From H670 chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From H670 chipset) Supports PCIe 4.0x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 and M2_3 support Intel® Optane™ Memory Support Intel® Smart Response Technology for Intel Core™ processors
USB Intel® H670 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 4x USB 3.2 Gen 1 5Gbps ports are available through the internal USB connectors) 6x USB 2.0 Type-A ports on the back panel USB Hub GL850G 4x USB 2.0 ports are available through the internal USB connectors
Main Features
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Chipset Intel® H670 chipset

MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard

MSI MAG H670 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard comes with more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. This MOBO Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It also supports DDR4 Memory, up to 4800+(OC) MHz. It also has a premium Thermal Solution with Extended Heatsink Design and M.2 Shield Frozr which is built for high-performance systems and non-stop works.MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPUs run at full speed with MSI motherboards. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

SMT PCIE 5.0 SLOT

MSI motherboards adopted the advanced SMT(Surface Mount Technology) PCI-E slot to diminish interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal. LIGHTNING GEN 5 PCI-E MSI Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation.

MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard Features

  • Supports MSI MAG 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe-based SSDs
  • Lightning USB 20G: MSI Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio-grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™


Quick Compare

Product Details
Product MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard Asus Prime B760-PLUS DDR5 ATX Motherboard GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard Gigabyte Z690 AORUS ELITE DDR5 12th Gen Intel Motherboard
Image MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard Asus Prime B760-PLUS DDR5 ATX Motherboard GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard Gigabyte Z690 AORUS ELITE DDR5 12th Gen Intel Motherboard
Price 24,970৳ 22,800৳ 28,500৳ 22,700৳ 29,500৳ 23,000৳ 33,500৳ 23,000৳
Model Model Prime B760-PLUS B760M GAMING X AX DDR5 Model
Brand MSI Asus Asus Gigabyte
Availability In Stock In Stock In Stock Discontinued
Rating
Based on 0 reviews.

Based on 1 reviews.

Based on 0 reviews.

Based on 0 reviews.
Summary MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard MSI MAG H670 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard comes with more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. This MOBO Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It also supports DDR4 Memory, up to 4800+(OC) MHz. It also has a premium Thermal Solution with Extended Heatsink Design and M.2 Shield Frozr which is built for high-performance systems and non-stop works.MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPUs run at full speed with MSI motherboards. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. SMT PCIE 5.0 SLOT MSI motherboards adopted the advanced SMT(Surface Mount Technology) PCI-E slot to diminish interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal. LIGHTNING GEN 5 PCI-E MSI Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation. MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard Features Supports MSI MAG 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors for LGA 1700 socket Supports DDR4 Memory, up to 4800+(OC) MHz Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe-based SSDs Lightning USB 20G: MSI Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 AUDIO BOOST: Reward your ears with studio-grade sound quality Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™  .. Asus Prime B760-PLUS DDR5 ATX MotherboardThe Asus Prime B760-PLUS DDR5 ATX Motherboard is a high-performance and feature-rich motherboard designed for the latest 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. This cutting-edge motherboard is built to deliver exceptional performance, support for fast DDR5 memory, and a wide array of connectivity options.The motherboard comes in the ATX form factor, measuring 12 inches x 9.6 inches (30.5 cm x 24.4 cm), making it suitable for a variety of PC builds. It boasts a robust BIOS with a 128 Mb Flash ROM and UEFI AMI BIOS, ensuring smooth and stable system operation.For audio enthusiasts, the Asus Prime B760-PLUS features Realtek 7.1 Surround Sound High Definition Audio CODEC, providing immersive sound quality with support for up to 24-Bit/192 kHz playback. Premium audio capacitors and dedicated audio PCB layers contribute to delivering crisp and clear sound. Additionally, the audio shielding feature helps minimize interference for an optimal listening experience.In terms of connectivity, the back panel is equipped with a comprehensive selection of ports, including the latest USB 3.2 Gen 2x2 port with a Type-C connector for lightning-fast data transfer. There are also multiple USB 3.2 Gen 2 and USB 2.0 ports, as well as HDMI, DisplayPort, and VGA ports for flexible display options. The motherboard includes a Realtek 2.5Gb Ethernet port for high-speed wired networking.When it comes to expansion slots, the motherboard supports the latest PCIe 5.0 and PCIe 4.0 standards, providing compatibility with a wide range of high-performance graphics cards and expansion cards.The internal I/O connectors cater to various needs, featuring fan headers for efficient cooling, M.2 slots (Key M) for fast SSD storage, SATA 6Gb/s ports for traditional hard drives, USB headers for additional connectivity, and headers for addressable RGB lighting.Asus Prime B760-PLUS DDR5 Motherboard Price In BDAs of 2023, the price of the Asus Prime B760-PLUS DDR5 ATX Motherboard in Bangladesh may vary depending on factors such as retailer pricing policies, import taxes, and currency exchange rates. To obtain the most accurate and up-to-date information regarding its price, it is recommended to check with authorized retailers or visit online marketplaces.Ultratech, a reputable electronics store, is likely to carry the Asus Prime B760-PLUS DDR5 ATX Motherboard. They often stock a wide range of computer components and peripherals, including motherboards. It advisable to contact Ultratech directly or visit their website to inquire about the availability and current pricing of the Asus Prime B760-PLUS DDR5 ATX Motherboard in Bangladesh.FeaturesForm Factor: It has an ATX form factor with dimensions of 12 inches x 9.6 inches (30.5 cm x 24.4 cm).BIOS: It comes with a 128 Mb Flash ROM and UEFI AMI BIOS.Accessories: The motherboard includes various accessories such as 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw Packages for M.2 SSD, and 1 x User guide.Audio Features: It is equipped with Realtek 7.1 Surround Sound High Definition Audio CODEC, supporting jack-detection, multi-streaming, and front panel jack-retasking. It also supports up to 24-Bit/192 kHz playback and features audio shielding, premium audio capacitors, and dedicated audio PCB layers.Back Panel I/O Ports: The back panel offers a variety of ports including 1 x USB 3.2 Gen 2x2 port (USB Type-C), 2 x USB 3.2 Gen 2 ports (Type-A), 1 x USB 3.2 Gen 1 port (Type-A), 2 x USB 2.0 ports (Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI port, 1 x vertical M.2 slot (Key E), 1 x Realtek 2.5Gb Ethernet port, and 3 x audio jacks.CPU Support: It supports Intel Socket LGA1700 for 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron Processors. It also supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0.Ethernet: The motherboard features a Realtek 2.5Gb Ethernet port for high-speed wired network connectivity.Expansion Slots: It includes 1 x PCIe 5.0 x16 slot for Intel 13th & 12th Gen Processors, 1 x PCIe 4.0 x16 slot (supports x4 mode) for the Intel B760 Chipset, and 2 x PCIe 3.0 x1 slots... GIGABYTE B760M GAMING X AX DDR5 mATX MotherboardThe GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard is a high-performance motherboard built for gamers and PC enthusiasts, designed to support 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors. Based on the Intel B760 chipset, it offers excellent compatibility with the latest hardware and technologies, ensuring robust performance for demanding gaming and multitasking environments. This motherboard supports DDR5 memory, providing faster data rates and enhanced bandwidth. It features four DIMM slots that can accommodate up to 192GB of DDR5 RAM, with speeds up to 7600MHz (overclocked). The dual-channel memory architecture and XMP profile support ensure optimized memory performance for gaming and creative workloads. For graphics, the motherboard supports integrated Intel HD Graphics with both HDMI and DisplayPort outputs, each capable of delivering 4K resolution at 60Hz, making it suitable for high-definition displays. The expansion slots include one PCIe 4.0 x16 slot and a PCIe 3.0 x16 slot (running at x4), providing ample room for high-performance graphics cards and additional peripherals. The GIGABYTE B760M GAMING X AX is also equipped with cutting-edge connectivity options. It features Intel Wi-Fi 6E AX210 for faster and more reliable wireless connections, Bluetooth 5.3, and Realtek 2.5GbE LAN for ultra-fast wired internet connectivity. Additionally, there are multiple USB ports, including USB 3.2 Gen 1 and USB 2.0, for seamless device connectivity. For storage, the motherboard supports two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports, offering fast data transfer speeds and flexibility for storage devices. It also supports RAID configurations for increased data security and performance. With advanced features like RGB headers, addressable LED strip headers, and comprehensive cooling options, this motherboard ensures an immersive and reliable gaming experience. Backed by a 3-year warranty, the GIGABYTE B760M GAMING X AX is a top choice for gamers and creators alike... Gigabyte Z690 AORUS ELITE DDR5 12th Gen Motherboard Gigabyte Z690 AORUS ELITE DDR5 12th Gen Motherboard comes with an upgraded power solution, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming.​ It features the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing, and a reliable SMD slot. In addition to the hardware upgrades, the user-friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability, and low temperatures under full load application and gaming...
