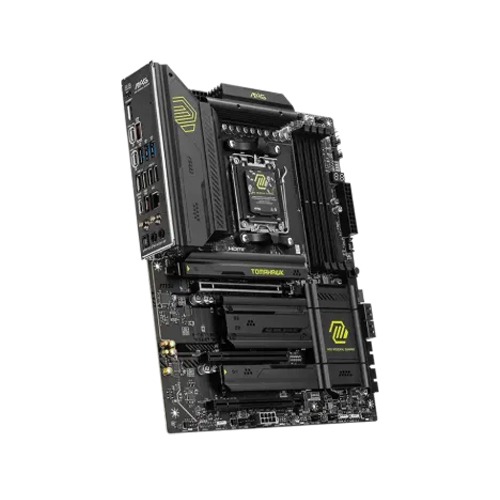

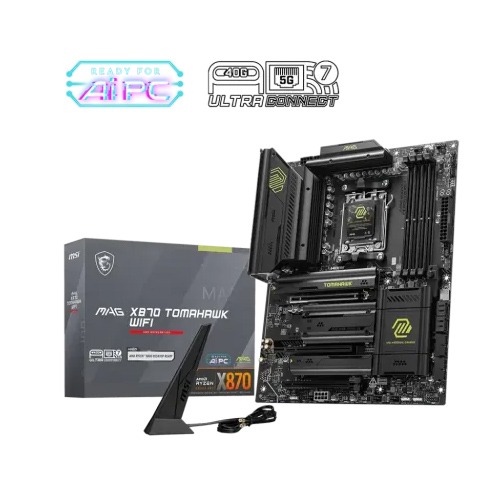

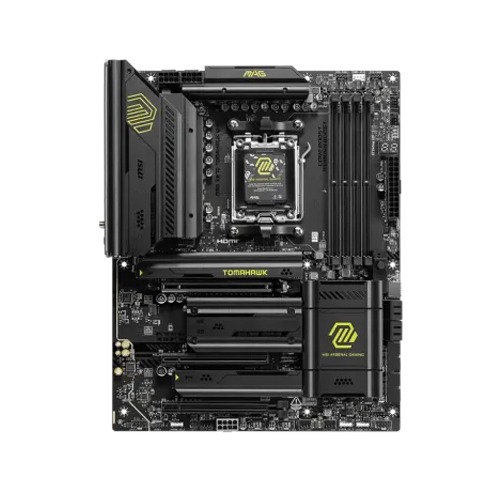

MSI MAG X870 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard
-7 %
MSI MAG X870 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: MAG X870 TOMAHAWK WIFI
Key Features
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5 8400+(OC) MHz
- Graphics Output: 1x HDMI, 2x Type-C Display Port
- Features: Realtek 8126-CG 5G LAN, Wi-Fi 7
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
| Main Features | |
| Form Factor | ATX 304.8mmx243.84mm |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| General Information | |
| Type | DDR5 |
| Chipset Manufacturer | AMD X870 |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-bit/384kHz playback on the front panel Supports S/PDIF output |
| Display Port (s) | 2x Type-C DisplayPort |
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz |
| Maximum Memory Supported | 256GB |
| PCI | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Slots | 4x UDIMM |
| Special Features | 4x EZ Debug LED 1x EZ Digit Debug LED |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
| Memory Specifications | |
| Supported Memory | Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Connector & ports | |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| LAN Port (s) | Realtek 8126-CG 5G LAN |
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
| Warranty Information | |
| Warranty | 3 Years |
MSI MAG X870 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard
MSI MAG X870 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard is designed for high-performance PC builds, delivering cutting-edge features to enhance gaming, productivity, and multimedia experiences. Built on the robust AMD X870 chipset and AM5 socket, it supports AMD Ryzen™ 9000, 8000, and 7000 Series processors, making it a future-ready choice for demanding tasks.This motherboard supports DDR5 memory with exceptional speeds of up to 8400+ MHz (OC) and a maximum capacity of 256GB across 4 DIMM slots. Enhanced memory overclocking and AMD EXPO support ensure optimized performance for intense gaming and creative workloads. The motherboard includes PCIe 5.0 and PCIe 4.0 slots, enabling seamless connectivity for the latest GPUs and storage solutions, delivering unparalleled speed and efficiency.For connectivity, the MAG X870 TOMAHAWK boasts Wi-Fi 7 with blazing speeds up to 5.8Gbps, 5G Realtek LAN, and Bluetooth 5.4, ensuring fast and reliable networking. With a plethora of USB ports, including USB 40Gbps Type-C and USB4 support, it accommodates high-speed peripherals with ease. Display options include HDMI 2.1 and Type-C DisplayPort, providing crisp visuals with resolutions up to 8K.The audio experience is elevated with Realtek ALC4080 Codec, offering 7.1-channel high-definition sound with support for up to 32-bit/384kHz playback. RGB enthusiasts will appreciate the customizable lighting options, featuring Addressable V2 RGB LED connectors and EZ Debug LED for streamlined troubleshooting.Packed with advanced storage options, it supports up to four M.2 slots, including PCIe 5.0 for ultra-fast NVMe SSDs, along with RAID 0, 1, and 10 configurations. Its durable ATX form factor and 3-year warranty ensure reliability and peace of mind, making it the ultimate choice for gamers and creators.
Features
- Chipset and Processor Support: AMD X870 chipset with AM5 socket supports AMD Ryzen 9000/8000/7000 Series processors.
- Memory: DDR5 RAM support up to 256GB with speeds up to 8400+ MHz (OC).
- Expansion Slots: PCIe 5.0 and PCIe 4.0 slots for high-speed GPUs and storage.
- Networking: Wi-Fi 7 (5.8Gbps), Realtek 5G LAN, and Bluetooth 5.4.
- Audio: Realtek ALC4080 Codec with 7.1-channel high-definition audio and S/PDIF output.
- USB Ports: Multiple USB options, including USB 40Gbps Type-C and USB4 support.
- Display Support: HDMI 2.1 and Type-C DisplayPort with up to 8K resolution.
- Storage: Four M.2 slots with PCIe 5.0 and RAID support.
- RGB Customization: Addressable V2 RGB LED connectors with EZ Debug LED for easy setup.
- Durability: ATX form factor with high-quality build and 3-year warranty.
Quick Compare
| Product Details | ||||
| Product | MSI MAG X870 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard | ASUS ROG STRIX B850-F GAMING WIFI AM5 ATX Gaming Motherboard | GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard | GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | MAG X870 TOMAHAWK WIFI | ROG STRIX B850-F GAMING WIFI | X870 AORUS ELITE WIFI7 ICE | X870 AORUS ELITE WIFI7 |
| Brand | MSI | Asus | Gigabyte | Gigabyte |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | MSI MAG X870 TOMAHAWK WIFI DDR5 AMD AM5 ATX MotherboardMSI MAG X870 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard is designed for high-performance PC builds, delivering cutting-edge features to enhance gaming, productivity, and multimedia experiences. Built on the robust AMD X870 chipset and AM5 socket, it supports AMD Ryzen™ 9000, 8000, and 7000 Series processors, making it a future-ready choice for demanding tasks.This motherboard supports DDR5 memory with exceptional speeds of up to 8400+ MHz (OC) and a maximum capacity of 256GB across 4 DIMM slots. Enhanced memory overclocking and AMD EXPO support ensure optimized performance for intense gaming and creative workloads. The motherboard includes PCIe 5.0 and PCIe 4.0 slots, enabling seamless connectivity for the latest GPUs and storage solutions, delivering unparalleled speed and efficiency.For connectivity, the MAG X870 TOMAHAWK boasts Wi-Fi 7 with blazing speeds up to 5.8Gbps, 5G Realtek LAN, and Bluetooth 5.4, ensuring fast and reliable networking. With a plethora of USB ports, including USB 40Gbps Type-C and USB4 support, it accommodates high-speed peripherals with ease. Display options include HDMI 2.1 and Type-C DisplayPort, providing crisp visuals with resolutions up to 8K.The audio experience is elevated with Realtek ALC4080 Codec, offering 7.1-channel high-definition sound with support for up to 32-bit/384kHz playback. RGB enthusiasts will appreciate the customizable lighting options, featuring Addressable V2 RGB LED connectors and EZ Debug LED for streamlined troubleshooting.Packed with advanced storage options, it supports up to four M.2 slots, including PCIe 5.0 for ultra-fast NVMe SSDs, along with RAID 0, 1, and 10 configurations. Its durable ATX form factor and 3-year warranty ensure reliability and peace of mind, making it the ultimate choice for gamers and creators.FeaturesChipset and Processor Support: AMD X870 chipset with AM5 socket supports AMD Ryzen 9000/8000/7000 Series processors.Memory: DDR5 RAM support up to 256GB with speeds up to 8400+ MHz (OC).Expansion Slots: PCIe 5.0 and PCIe 4.0 slots for high-speed GPUs and storage.Networking: Wi-Fi 7 (5.8Gbps), Realtek 5G LAN, and Bluetooth 5.4.Audio: Realtek ALC4080 Codec with 7.1-channel high-definition audio and S/PDIF output.USB Ports: Multiple USB options, including USB 40Gbps Type-C and USB4 support.Display Support: HDMI 2.1 and Type-C DisplayPort with up to 8K resolution.Storage: Four M.2 slots with PCIe 5.0 and RAID support.RGB Customization: Addressable V2 RGB LED connectors with EZ Debug LED for easy setup.Durability: ATX form factor with high-quality build and 3-year warranty... | ASUS ROG STRIX B850-F GAMING WIFI AM5 ATX Gaming MotherboardExperience next-gen performance with the ASUS ROG STRIX B850-F GAMING WIFI AM5 ATX Gaming Motherboard, designed to fully support AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD B850 chipset and crafted in a compact Mini-ITX form factor, this board is engineered for high-speed gaming and efficient multitasking in modern setups.With DDR5 memory support up to 128GB and speeds beyond 8400+ MT/s (OC), this motherboard ensures blazing-fast data handling and seamless gaming. It features advanced overclocking technologies including AMD EXPO and ASUS AEMP profiles for optimized performance. The integrated PCIe 5.0 and PCIe 4.0 slots with Q-Release Slim make GPU installation effortless, tailored to the CPU generation you’re using.For storage, it offers dual PCIe Gen5 M.2 slots and 2 SATA ports, ideal for high-speed SSDs. The inclusion of Wi-Fi 7 and Intel 2.5Gb Ethernet ensures future-ready networking with minimal latency. With rear and front USB ports including USB 20Gbps and Type-C, connectivity is abundant for all your peripherals.Enjoy premium audio with ROG SupremeFX ALC4080 codec, delivering 7.1 surround sound and 32-bit/384kHz playback. Additional features like BIOS FlashBack™, Clear CMOS, and ASUS Q-Design innovations simplify DIY builds.Whether you're a gamer or creator, the ASUS ROG STRIX B850-F offers durability, speed, and customization with Aura Sync RGB, thermal control, and bundled tools like Armoury Crate, Fan Xpert 4, and Dolby Atmos support.If you’re looking for a feature-packed Mini-ITX AM5 motherboard that offers exceptional gaming and productivity performance, the ROG STRIX B850-F GAMING WIFI stands out as one of the best options in its class with the best price in BD.FeaturesSupports AMD Ryzen 9000, 8000, and 7000 Series CPUsDual-channel DDR5 memory up to 8400+ MT/s (OC)PCIe 5.0 x16 slot with Q-Release Slim for GPUsBuilt-in Wi-Fi 7 and Intel 2.5Gb LANDual M.2 slots with PCIe Gen5 supportSupremeFX 7.1 ALC4080 HD Audio CodecMultiple USB 20Gbps & 10Gbps Type-C/A portsASUS Q-Design for easy DIY and upgradesAura Sync RGB with Gen 2 headersCompact Mini-ITX form factor with premium build.. | GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX MotherboardUnlock next-gen performance with the GIGABYTE X870 AORUS ELITE WIFI7 ICE DDR5 AMD AM5 ATX Motherboard, built to support AMD Ryzen™ 9000, 8000, and 7000 Series processors on the advanced Socket AM5 platform. Designed for enthusiasts and power users, this motherboard integrates the AMD X870 chipset and unleashes high-speed DDR5 memory support up to 8200MHz (OC), enabling lightning-fast data processing for intense gaming and multitasking.Visual performance meets versatility with onboard AMD Radeon™ Graphics, supporting quad-display setups through dual USB4® Type-C and HDMI ports. Whether you're gaming or working in creative applications, enjoy stunning 4K+ output with DisplayPort and HDMI 2.1 support.For ultra-fast storage, the X870 AORUS ELITE includes four PCIe M.2 slots (including PCIe Gen5) and four SATA 6Gb/s ports, supporting RAID 0/1/5/10. Expansion is seamless with PCIe 5.0 x16 for the latest GPUs, along with PCIe 4.0 and 3.0 slots for additional flexibility.Connectivity reaches new heights with integrated Wi-Fi 7 (supporting 2.4/5/6GHz bands), Bluetooth 5.4, and 2.5GbE LAN, ensuring low-latency online gaming and stable networking. High-resolution audio powered by Realtek® ALC1220 CODEC enhances your sound experience with 7.1-channel HD output and S/PDIF.The motherboard’s enhanced thermal design, robust power phase, and RGB header options make it an ideal choice for high-performance PC builds. It includes exclusive features like Q-Flash Plus, Smart Backup, and full support for Windows 11.Whether you’re upgrading or building from scratch, the GIGABYTE X870 AORUS ELITE WIFI7 ICE offers elite performance, futuristic connectivity, and rock-solid stability for your next-gen rig.FeaturesSupports AMD Ryzen 9000/8000/7000 Series Processors with AM5 socketAdvanced AMD X870 chipset ensures next-gen performance stabilitySupports DDR5 up to 8200MHz (OC) across 4 DIMMs, max 256GBQuad-display ready with USB4® Type-C and HDMI 2.1 & 1.4 portsFour PCIe M.2 slots including Gen5 SSD support for ultimate speedWi-Fi 7 + Bluetooth 5.4 + 2.5GbE LAN for high-speed connectivityPCIe 5.0 x16 expansion slot for latest GPUs and add-in cardsPremium Realtek ALC1220 7.1 HD Audio with DSD and S/PDIF OutEnhanced cooling with 6 fan/water pump headers and RGB headersRobust BIOS with Q-Flash Plus, Smart Backup, and GCC software.. | GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboardhe GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard is an advanced ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors, offering outstanding support for high-performance setups. Equipped with an AMD X870 chipset and an AM5 socket, it provides extensive compatibility with cutting-edge components and features a robust power design ideal for gaming and intensive applications.One of its core features is support for DDR5 memory, allowing up to 256 GB and speeds reaching 8000 MHz with overclocking, making it ideal for high-demand tasks and gaming. The board includes 4 DIMM slots and dual-channel memory architecture, with support for AMD EXPO and XMP profiles, enhancing memory performance and reliability.In terms of connectivity, the motherboard is equipped with Wi-Fi 7 and Bluetooth 5.4, ensuring faster wireless speeds and stable connections. It also has multiple USB Type-C and Type-A ports on the back panel, including USB4 ports, which support rapid data transfer speeds.The Realtek ALC1220 audio codec delivers high-quality, 7.1-channel audio, catering to immersive audio experiences in gaming and multimedia use. Additionally, the board includes multiple M.2 PCIe slots (PCIe 5.0 x4) for NVMe SSDs, RAID support, and four SATA ports for additional storage.With PCIe 5.0 compatibility and reinforced slots, the GIGABYTE X870 AORUS ELITE WIFI7 can accommodate high-performance GPUs. Built-in RGB headers and a robust cooling solution round out this premium motherboard, making it an excellent choice for enthusiasts seeking peak performance and customization. Backed by a 3-year warranty, it's a reliable and future-ready option for any high-end AMD Ryzen build.FeaturesAMD AM5 Socket: Supports AMD Ryzen 7000/8000/9000 series processors.DDR5 Memory Support: Up to 256 GB, with speeds up to 8000 MHz when overclocked.Wi-Fi 7 and Bluetooth 5.4: Enhanced connectivity for faster wireless speeds.Multiple M.2 Slots: Includes PCIe 5.0 M.2 slots for faster NVMe SSD storage.USB4 and USB 3.2 Ports: Advanced connectivity with USB Type-C and multiple USB Type-A ports.Realtek ALC1220 Audio Codec: Provides high-definition, 7.1-channel audio... |
|
|
|
|
|
|
