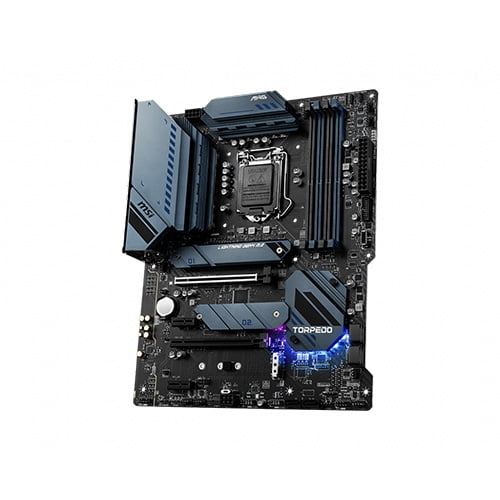

MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard

MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: MSI
  • Model: Z590-TI
  • SKU: Z590-TI

Discontinued

Add to Wish List Compare this Product

Key Features

    • Model: MAG Z590 TORPEDO
    • DDR4 Memory, up to 5333(OC) MHz
    • Lightning USB 20G, Lightning M.2
    • LGA 1200 socket
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
BACK PANEL PORTS DisplayPort USB 2.0 Gigabit LAN Port 2.5G LAN Port HD Audio Connectors HDMI Flash BIOS Button USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
EXPANSION SLOT 2x PCIe x16 slots 1x PCIe 3.0 x16 slot (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 (From Z590 chipset) Support up to PCIe 3.0 x4 2x PCIe 3.0 x1 slots (From Z590 chipset)
INTERNAL CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LAN 1x Intel® I225-V 2.5Gbps LAN controller 1x Intel® I219-V 1Gbps LAN controller
LED FEATURE 1x EZ LED Control switch 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
Memory 4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology
Operating System Support for Windows® 10 64-bit
Processor Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA1200
Storage 6x SATA 6Gb/s ports (From Z590 chipset) 1 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_3 2 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready 3 Supports Intel® Smart Response Technology for Intel Core™ processors
USB Intel® Z590 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Main Features
Audio Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Chipset Intel® Z590 Chipset
Graphics Specifications
Graphics Memory 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Warranty Information
Warranty 3 Year

MSI MAG Z590 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard

MSI MAG Z590 torpedo has a dark blue metal coating, including a back cover, a radiator, and two of the four memory slots. It also includes RGB LEDs built into the chipset heat sink and has a military design. The Z590 torpedo has two full-height slots: the top slot supports PCIe 4.0 x16, the second slot is blocked for PCIe 3.0 x4, and the other two slots are blocked. The torpedo has 3 M.2 slots for storage, one of which supports PCIe 4.0 x4, and two support PCIe 3.0 x4 and SATA. Six SATA ports support RAID 0, 1, 5, and 10. MSI MAG Z590 TORPEDO Motherboard are four memory slots on the card with a maximum capacity of 128 GB. However, MSI does not currently provide a QVL list, so the JEDEC specification is listed as DDR4-3200. On the back, there is one USB 3.2 G2x2 Type C port, one USB 3.2 G2 Type-A port, four USB 3.2 G1 Type-A ports, and two USB 2.0 ports. The MSI MAG Z590 TORPEDO Motherboard uses dual RJ45 connectors, which are plugged in through an Intel I225-V 2.5GbE controller and the other is plugged in through an Intel I219-V Gigabit controller. MAG Z590 TORPEDO Motherboard Realtek ALC4080 HD audio codec controls a total of five 3.5mm audio jacks and one S/PDIF optical output. On the contrary, by connecting DisplayPort and HDMI video output, users can enjoy Intel's built-in high-definition graphics.
